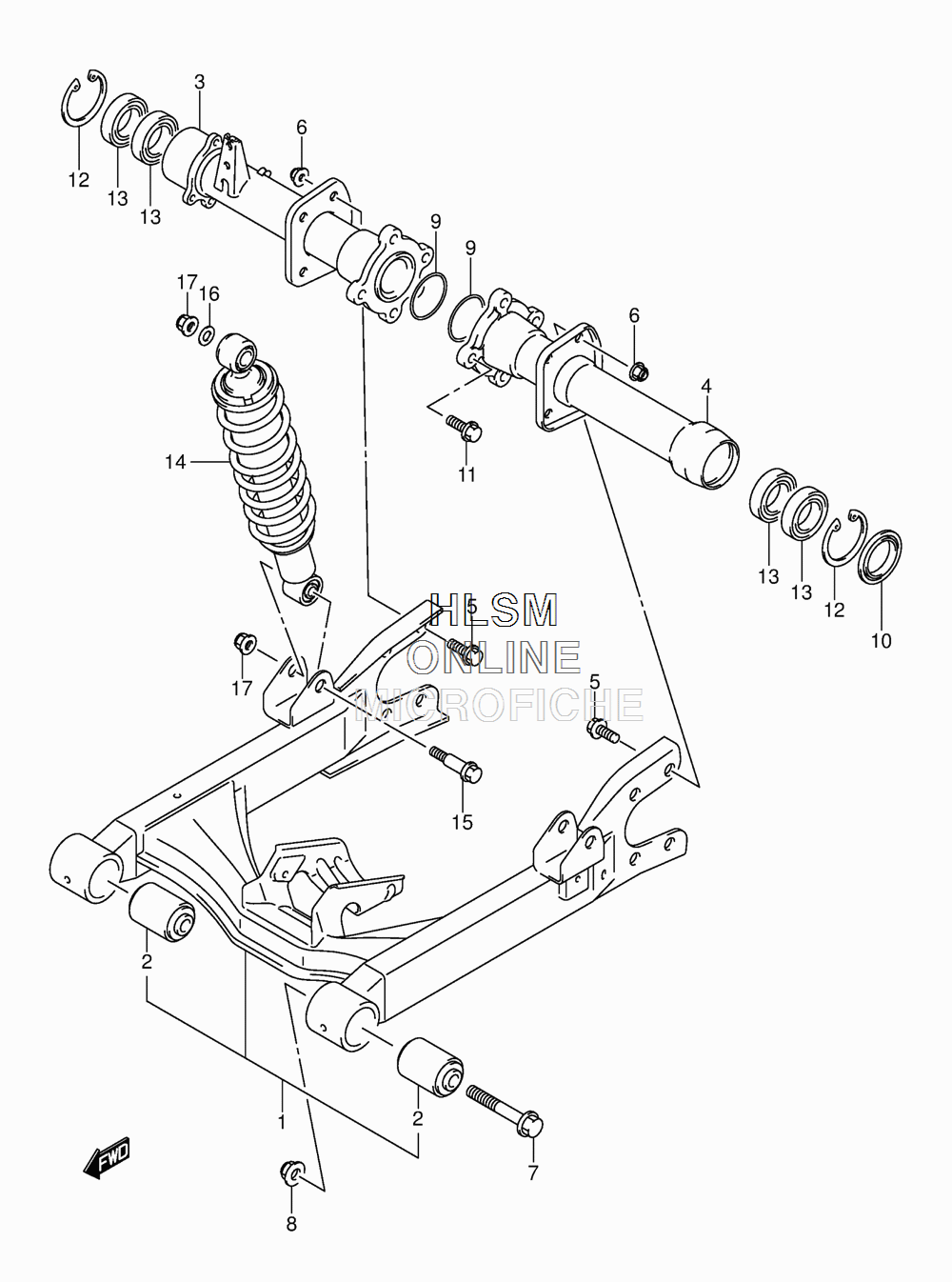

SUSPENSION - REAR SWING ARM (CANADA) для Suzuki LT-F400F KingQuad 400FSi (STANDARD COLORS) - 2014 года выпуска
-
№АртикулНазвание
-
161101-27850 SWINGINGARM SET, REARSWINGINGARM SET, REAR
-
261230-27H00 BUSH, PIVOTBUSH, PIVOT
-
361300-27H00 HOUSING, REAR AXLE RIGHT HANDHOUSING, REAR AXLE RIGHT HAND
-
461400-27H00 HOUSING, REAR AXLE LEFT HANDHOUSING, REAR AXLE LEFT HAND
-
509103-10216 BOLT (10X20)BOLT (10X20)
-
609159-10115 NUTNUT
-
709113-12002 BOLT (12X80)BOLT (12X80)
-
809159-12054 NUTNUT
-
909280-70005 O RING (D:3.1,ID:69.4)O RING (D:3.1,ID:69.4)
-
1009283-38022 OIL SEAL (38X55X9)OIL SEAL (38X55X9)
-
1109103-10421 BOLT (10X30)BOLT (10X30)
-
1208331-41559 CIRCLIPCIRCLIP
-
1308123-60067 BEARING B1 30X55X13BEARING B1 30X55X13
-
1462100-27H10-019 ABSORBER ASSY, REAR SHOCK (BLACK)ABSORBER ASSY, REAR SHOCK (BLACK)
-
1509103-10126 BOLT (10X48)BOLT (10X48)
-
1609160-10501 WASHER (10.5X30X2.3)WASHER (10.5X30X2.3)
-
1708319-3110B NUTNUT
