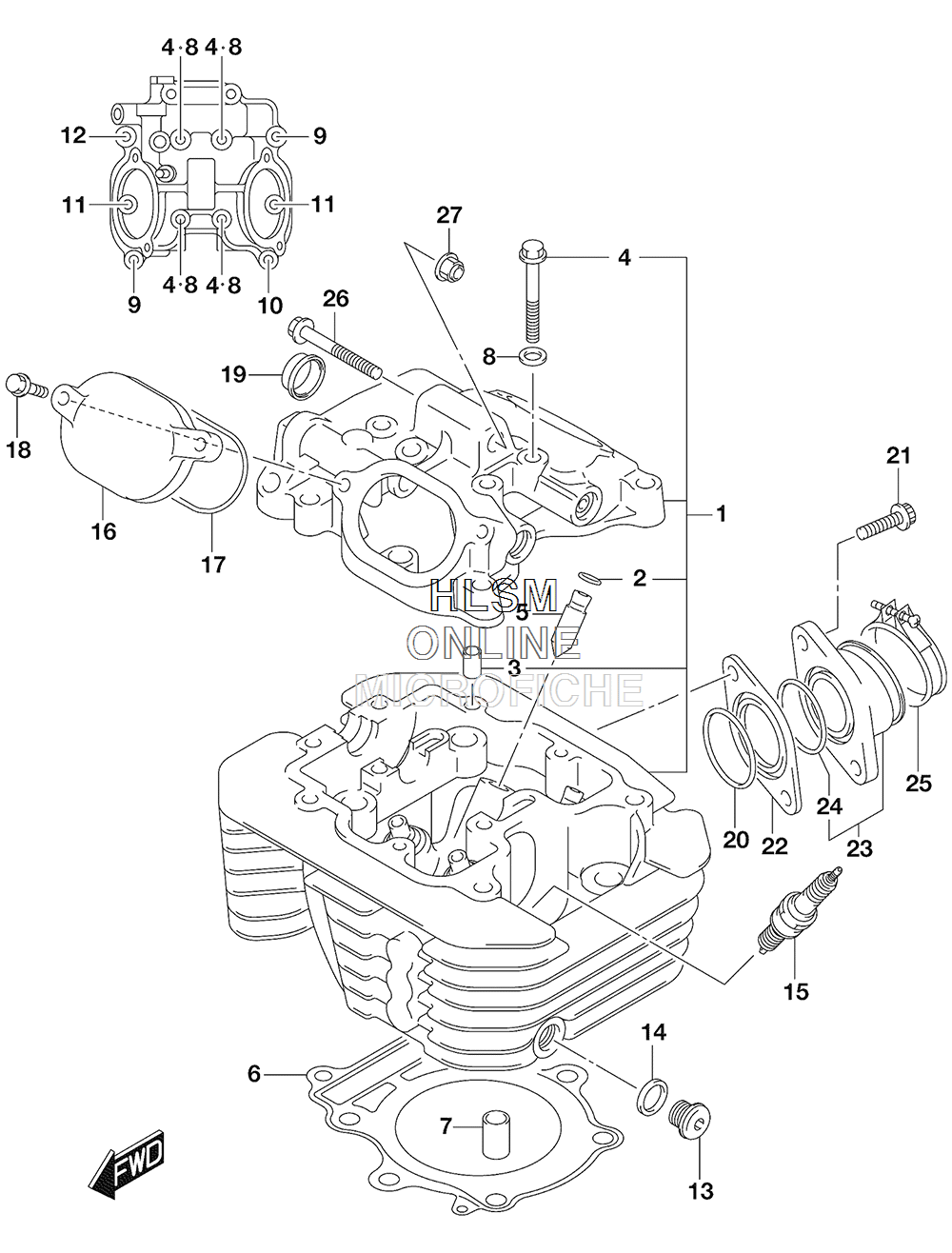

CYLINDER HEAD для Suzuki LT-A400FL5 KINGQUAD 400 ASi - 2015 года выпуска
-
№АртикулНазвание
-
111100-27H20 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209381-10004 SNAP RINGSNAP RING
-
309206-08001 PIN (8X11)PIN (8X11)
-
409103-06102 BOLT (6X55)BOLT (6X55)
-
511115-14D71 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
611141-38F00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
709206-13004 PIN (10.4X13X22)PIN (10.4X13X22)
-
809168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
909103-06108 BOLT (6X35)BOLT (6X35)
-
1009103-06026 BOLT (6X39)BOLT (6X39)
-
1101550-0625A BOLTBOLT
-
1201550-0630A BOLTBOLT
-
1309248-12004 PLUG (L:12)PLUG (L:12)
-
1409168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1509482-00553 SPARK PLUG (DENSO,IU22D)SPARK PLUG (DENSO,IU22D)
-
1509482-00554 SPARK PLUG (NGK,CR7EIA-9)SPARK PLUG (NGK,CR7EIA-9)
-
1509482-00555 SPARK PLUG (DENSO,IU24D) (OPT)SPARK PLUG (DENSO,IU24D) (OPT)
-
1509482-00556 SPARK PLUG (NGK,CR8EIA-9) (OPT)SPARK PLUG (NGK,CR8EIA-9) (OPT)
-
1509482-00590 SPARK PLUG (NGK,CR6EIA-9) (OPT)SPARK PLUG (NGK,CR6EIA-9) (OPT)
-
1611175-47D00 CAP, INSPECTIONCAP, INSPECTION
-
1711177-14D01 O RING, INSPECTION CAPO RING, INSPECTION CAP
-
1801550-0620A BOLTBOLT
-
1909241-25007 PLUG (OD:30)PLUG (OD:30)
-
2009280-40010 O RING (D:2.4,ID:39.7)O RING (D:2.4,ID:39.7)
-
2107120-0625A SCREWSCREW
-
2213117-38F01 INSULATOR, INTAKE PIPEINSULATOR, INTAKE PIPE
-
2313101-27H00 PIPE ASSY, INTAKEPIPE ASSY, INTAKE
-
2413118-38F00 O RINGO RING
-
2509402-54208 CLAMPCLAMP
-
2609103-08217 BOLT (8X60)BOLT (8X60)
-
2708319-3108A NUTNUT
