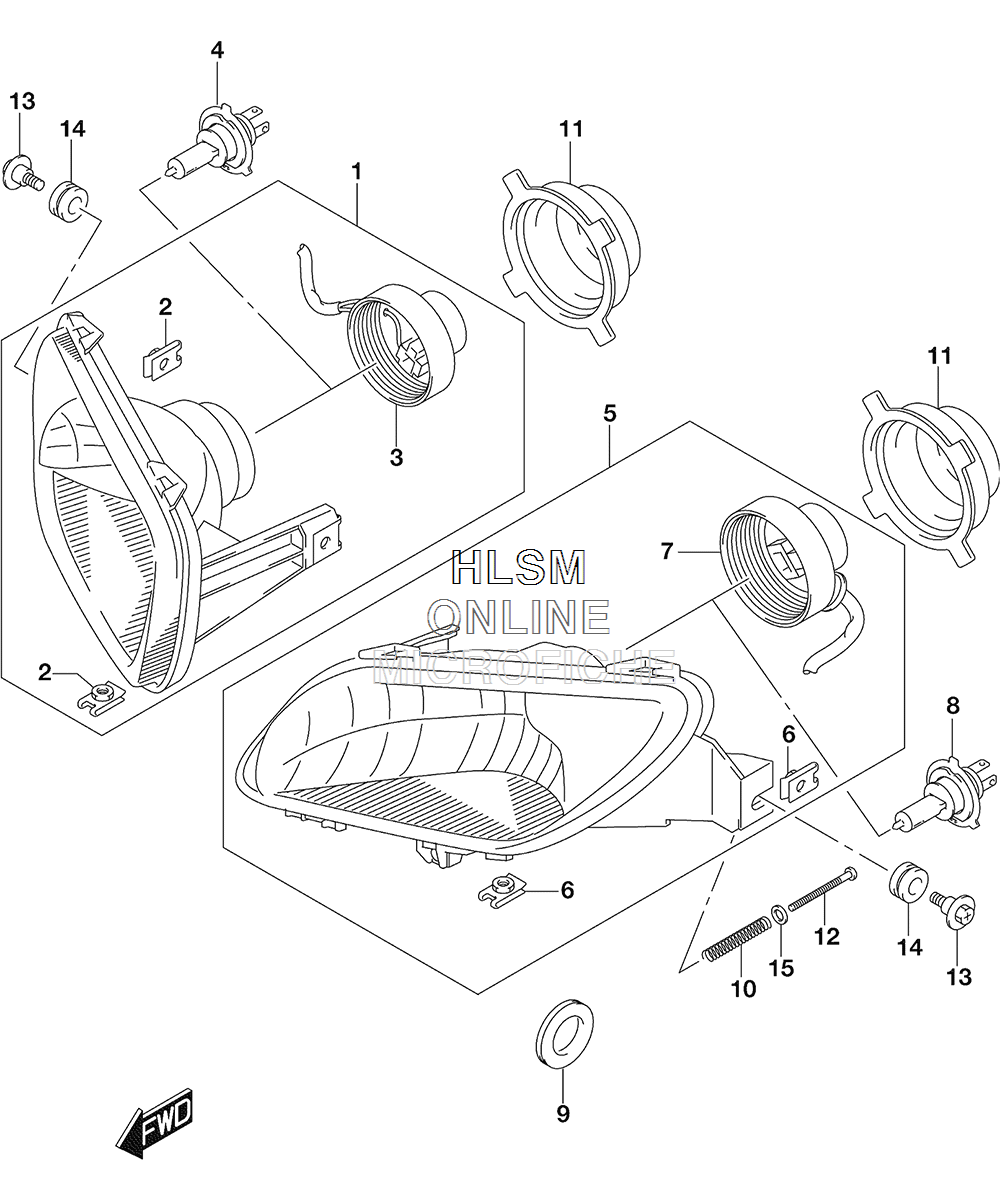

HEADLAMP (P33) для Suzuki LT-A400FL5 KINGQUAD 400 ASi - 2015 года выпуска
-
№АртикулНазвание
-
135100-31G92-999 HEADLAMP ASSY, RIGHT HANDHEADLAMP ASSY, RIGHT HAND
-
235157-31G90 NUT (M6)NUT (M6)
-
335171-31GM1 CORD ASSY, RIGHT HANDCORD ASSY, RIGHT HAND
-
409471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
535300-31G92-999 HEADLAMP ASSY, LEFT HANDHEADLAMP ASSY, LEFT HAND
-
635157-31G90 NUT (M6)NUT (M6)
-
735171-31GH1 CORD ASSY, LEFT HANDCORD ASSY, LEFT HAND
-
809471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
909308-07011 GROMMETGROMMET
-
1035154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
1135174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1209125-04031 SCREW (4X50)SCREW (4X50)
-
1309139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1409320-10501 CUSHIONCUSHION
-
1508322-0104A WASHERWASHER
