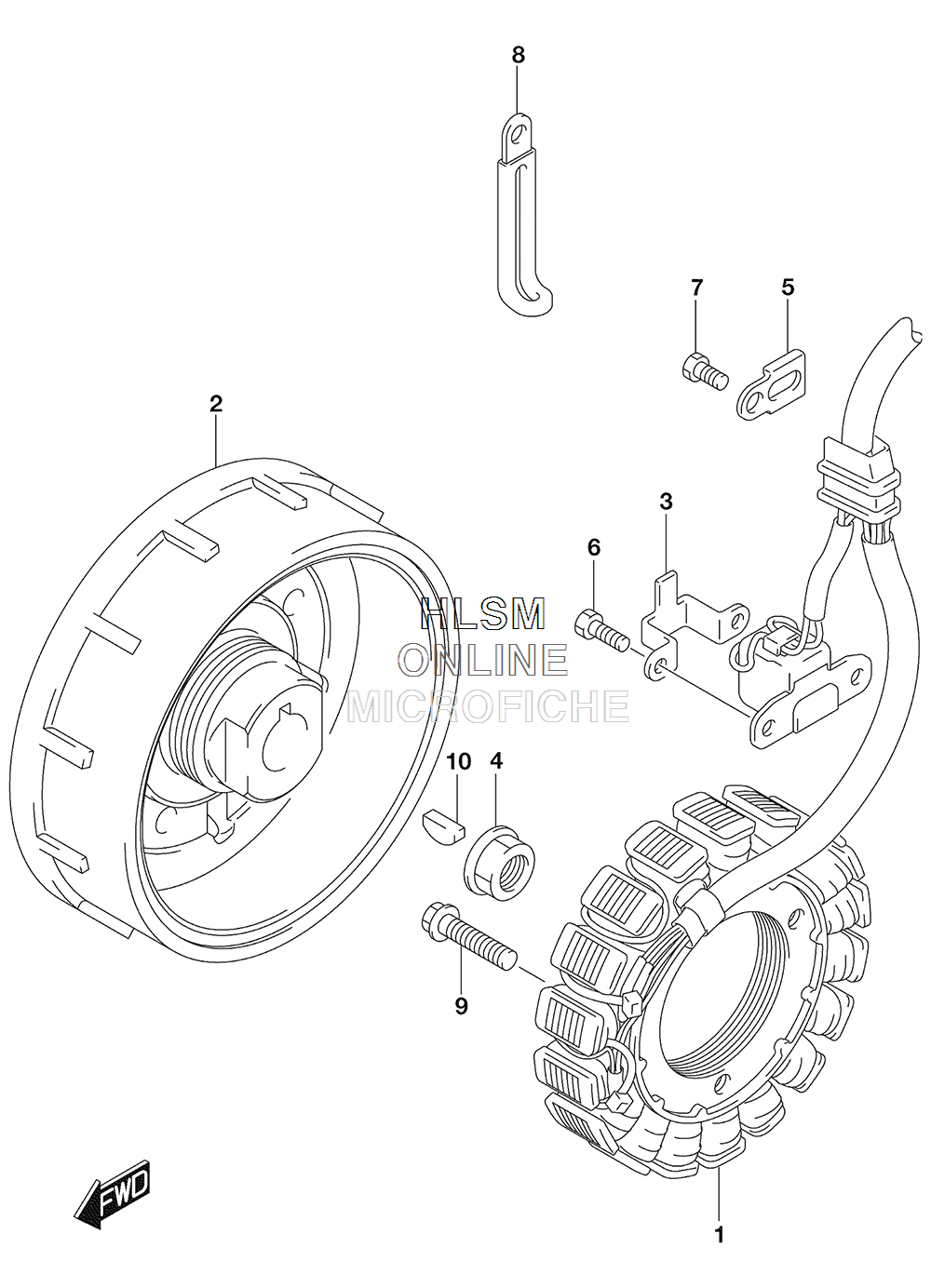

MAGNETO для Suzuki LT-A400FL5 KINGQUAD 400 ASi - 2015 года выпуска
-
№АртикулНазвание
-
132101-27H10 STATOR ASSYSTATOR ASSY
-
232102-27H10 ROTOR ASSYROTOR ASSY
-
331497-45000 CLAMP, MAGNETO LEAD NO.1CLAMP, MAGNETO LEAD NO.1
-
431792-11H00 NUT, MAGNETO ROTORNUT, MAGNETO ROTOR
-
532371-32E00 CLAMP, MAGNETO LEAD NO.2CLAMP, MAGNETO LEAD NO.2
-
609100-05019 BOLT (5X10)BOLT (5X10)
-
709100-05019 BOLT (5X10)BOLT (5X10)
-
809404-06429 CLAMP (L:45)CLAMP (L:45)
-
901547-0630A BOLTBOLT
-
1008341-31059 KEYKEY
