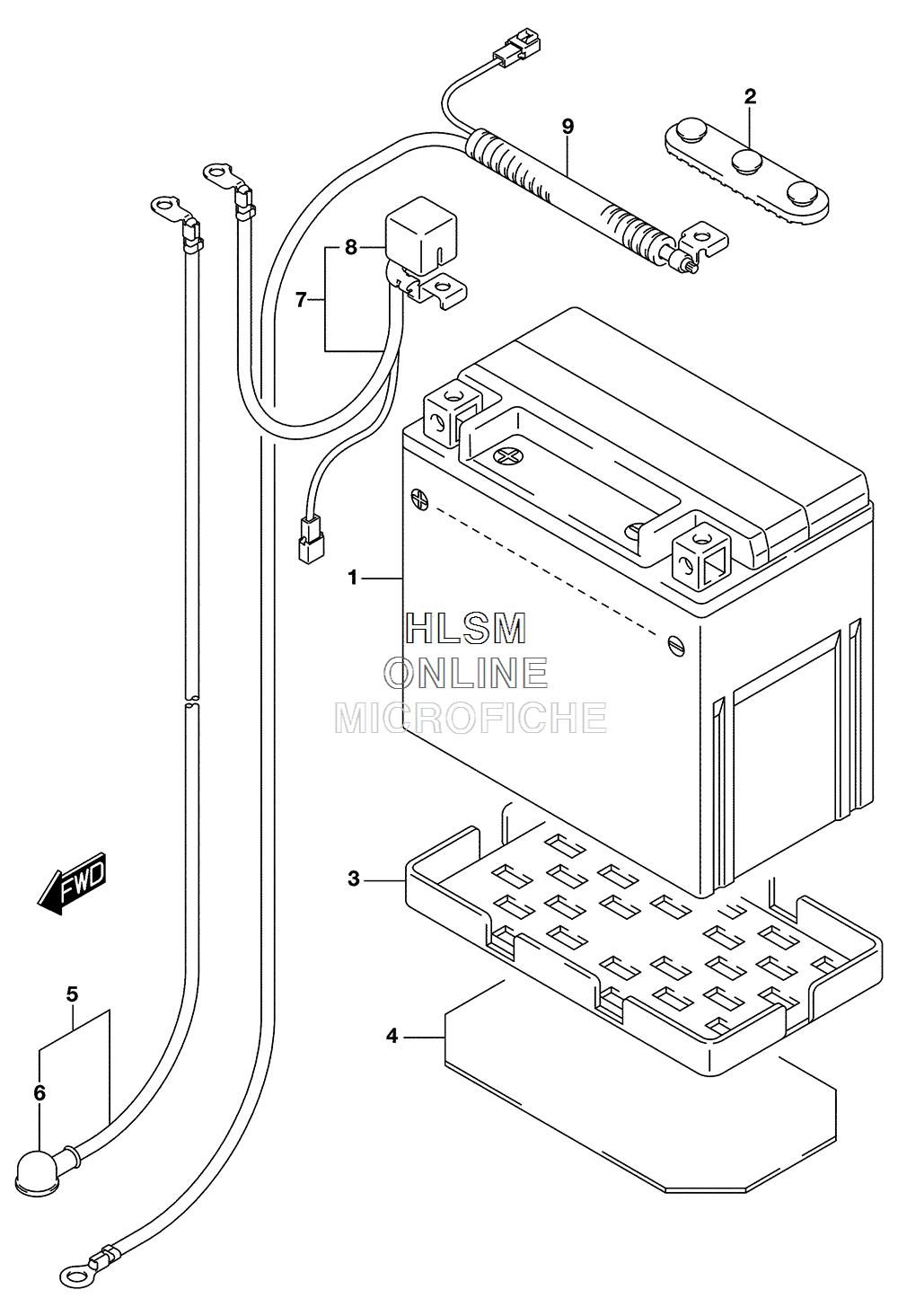

BATTERY для Suzuki KINGQUAD 400 FSI [LTF400FL6] - 2016 года выпуска
-
№АртикулНазвание
-
133610-38F01 BATTERY ASSY (YTX14-BS, 12V12AH)BATTERY ASSY (YTX14-BS, 12V12AH)
-
233652-07G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
433652-27H00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
533810-27H20 WIRE, STARTER MOTOR LEADWIRE, STARTER MOTOR LEAD
-
633624-27H00 ...CAP, STARTER MOTOR...CAP, STARTER MOTOR
-
733820-27H20 WIRE, BATTERY PLUS LEADWIRE, BATTERY PLUS LEAD
-
833624-16E00 ...CAP, BATTERY PLUS...CAP, BATTERY PLUS
-
933860-27H10 WIRE, BATTERY MINUS LEADWIRE, BATTERY MINUS LEAD
