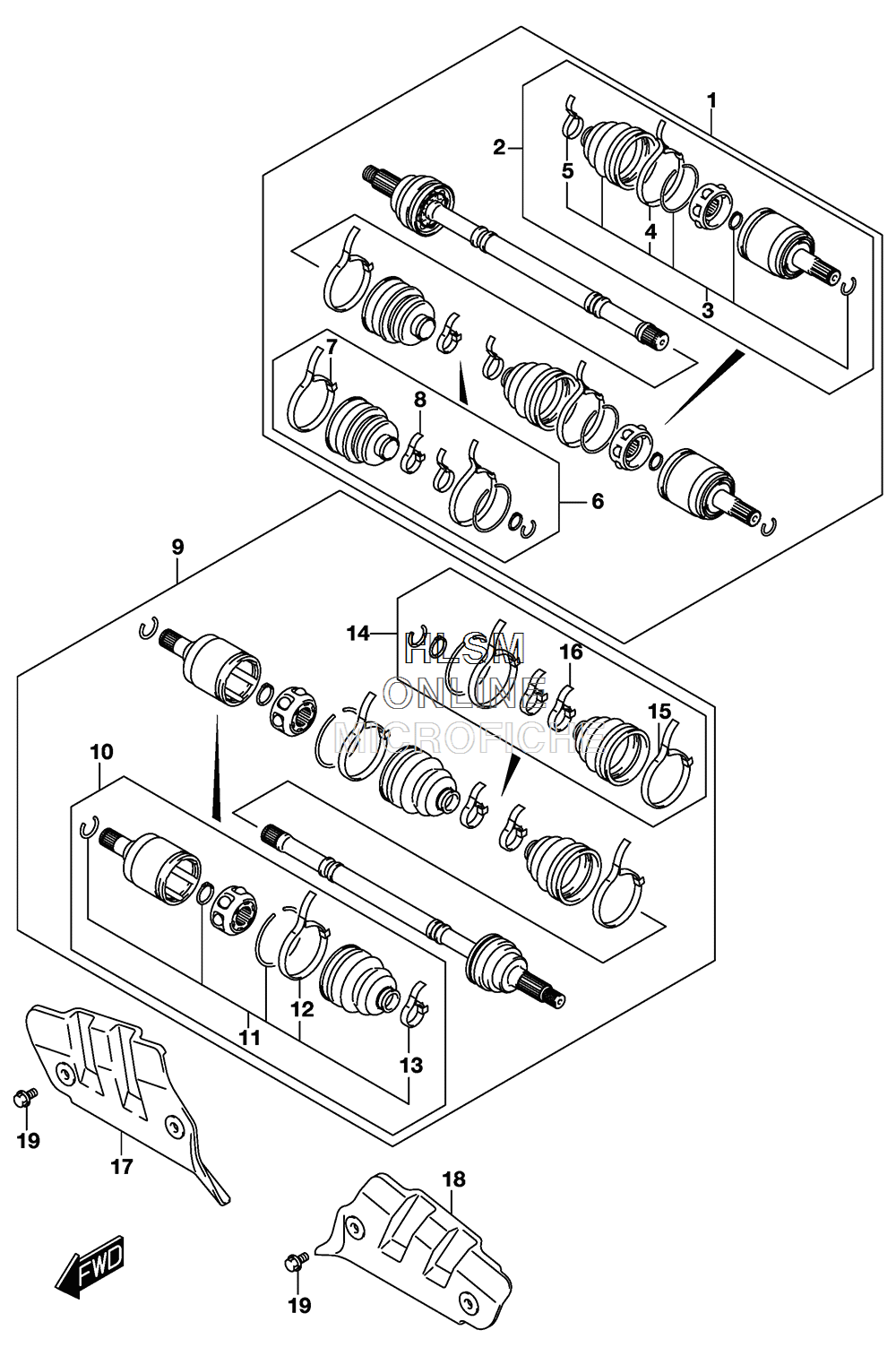

DRIVESHAFT - FRONT для Suzuki KINGQUAD 400 FSI [LTF400FL6] - 2016 года выпуска
-
№АртикулНазвание
-
154901-27H01 SHAFT ASSY, FRONT DRIVE RHSHAFT ASSY, FRONT DRIVE RH
-
254933-38F14 ...JOINT SET...JOINT SET
-
354931-38F14 ......BOOT SET, INNER......BOOT SET, INNER
-
444121-38F20 .........BAND, BOOT.........BAND, BOOT
-
544124-38F00 .........BAND, BOOT.........BAND, BOOT
-
654930-27H01 ...BOOT SET, OUTER...BOOT SET, OUTER
-
744121-38F30 ......BAND, BOOT......BAND, BOOT
-
844124-38F00 ......BAND, BOOT......BAND, BOOT
-
954902-27H01 SHAFT ASSY, FRONT DRIVE LHSHAFT ASSY, FRONT DRIVE LH
-
1054933-38F14 ...JOINT SET...JOINT SET
-
1154931-38F14 ......BOOT SET, INNER......BOOT SET, INNER
-
1244121-38F20 .........BAND, BOOT.........BAND, BOOT
-
1344124-38F00 .........BAND, BOOT.........BAND, BOOT
-
1454930-27H01 ...BOOT SET, OUTER...BOOT SET, OUTER
-
1544121-38F30 ......BAND, BOOT......BAND, BOOT
-
1644124-38F00 ......BAND, BOOT......BAND, BOOT
-
1754903-27H00 PROTECTOR, DRIVE SHAFT RHPROTECTOR, DRIVE SHAFT RH
-
1854904-27H00 PROTECTOR, DRIVE SHAFT LHPROTECTOR, DRIVE SHAFT LH
-
1909111-06085 BOLT (6X12)BOLT (6X12)
