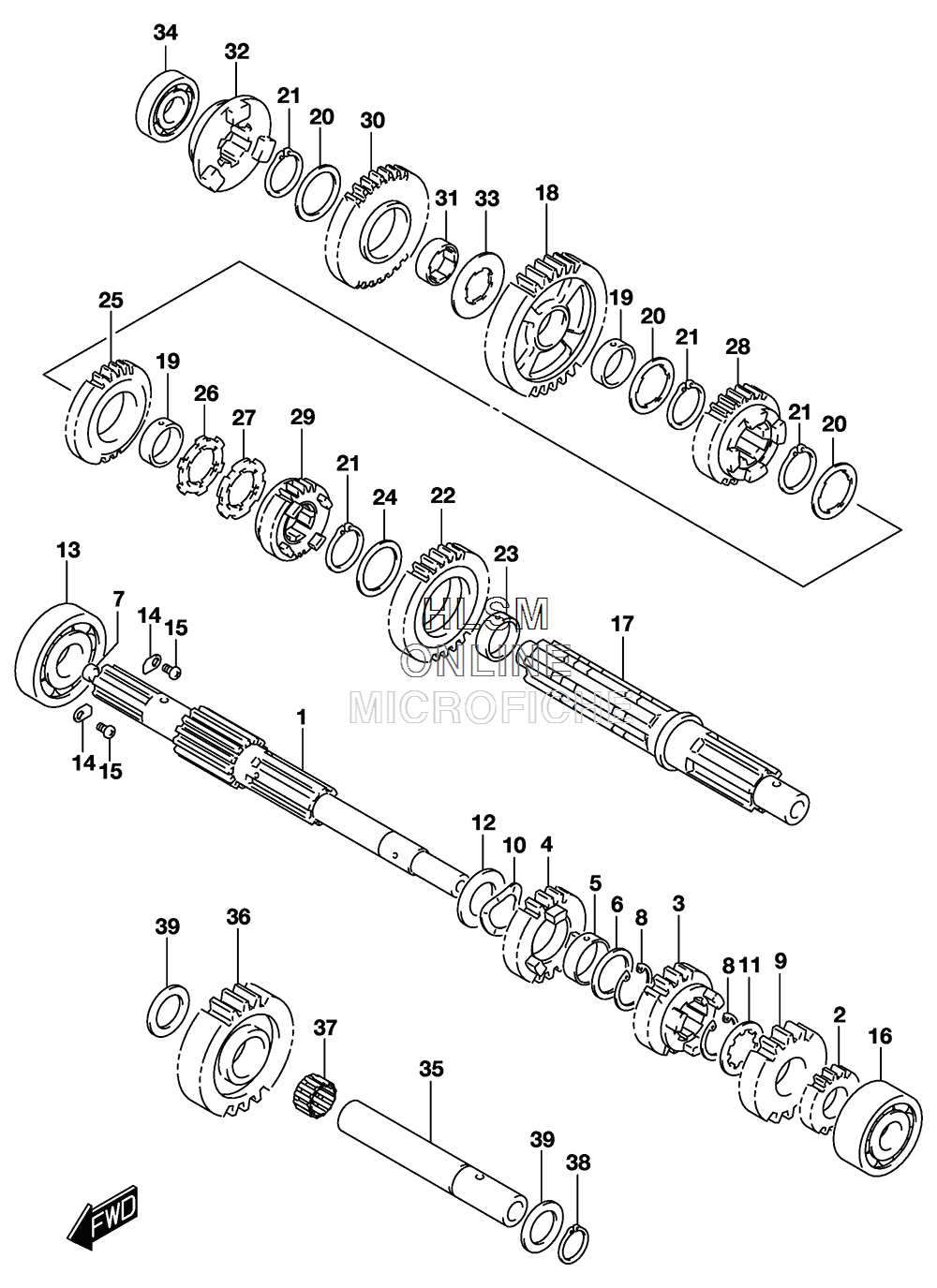

TRANSMISSION (1) для Suzuki KINGQUAD 400 FSI [LTF400FL6] - 2016 года выпуска
-
№АртикулНазвание
-
124121-38F51 COUNTERSHAFT (NT:12)COUNTERSHAFT (NT:12)
-
224221-18A00 GEAR, 2ND DRIVE (NT:15)GEAR, 2ND DRIVE (NT:15)
-
324231-18A02 GEAR, 3RD DRIVE (NT:18)GEAR, 3RD DRIVE (NT:18)
-
424241-18A10 GEAR, 4TH DRIVE (NT:21)GEAR, 4TH DRIVE (NT:21)
-
509300-22008 BUSH (22X26X9)BUSH (22X26X9)
-
609181-22167 SHIM (22X30X1)SHIM (22X30X1)
-
709241-10003 PLUGPLUG
-
809380-22006 CIRCLIPCIRCLIP
-
924251-18A03 GEAR, 5TH DRIVE (NT:23)GEAR, 5TH DRIVE (NT:23)
-
1009164-26002 WASHERWASHER
-
1109167-22011 LOCK WASHERLOCK WASHER
-
1209181-22015 WASHER (22X38X1)WASHER (22X38X1)
-
1309262-22018 BEARING (22X50X14)BEARING (22X50X14)
-
1424741-21A00 RETAINER, CNTR SHAFT BRGRETAINER, CNTR SHAFT BRG
-
1509125-06122 SCREW (6X12)SCREW (6X12)
-
1609267-17002 BEARING (17X40X17.5)BEARING (17X40X17.5)
-
1724131-38F50 DRIVE SHAFTDRIVE SHAFT
-
1824311-18A02 GEAR, 1ST DRIVEN (NT:37)GEAR, 1ST DRIVEN (NT:37)
-
1924332-24510 BUSHBUSH
-
2009167-25016 LOCK WASHERLOCK WASHER
-
2109380-25003 RING, SNAPRING, SNAP
-
2224321-18A01 GEAR, 2ND DRIVEN (NT:29)GEAR, 2ND DRIVEN (NT:29)
-
2309300-25020 BUSH (25X29X8)BUSH (25X29X8)
-
2408211-25351 WASHERWASHER
-
2524331-19B01 GEAR, 3RD DRIVEN (NT:25)GEAR, 3RD DRIVEN (NT:25)
-
2609169-25001 WASHERWASHER
-
2709167-25013 LOCK WASHER (25.1X41X1.5)LOCK WASHER (25.1X41X1.5)
-
2824341-18A02 GEAR, 4TH DRIVEN (NT:23)GEAR, 4TH DRIVEN (NT:23)
-
2924351-18A02 GEAR, 5TH DRIVEN (NT:21)GEAR, 5TH DRIVEN (NT:21)
-
3024571-38F60 GEAR, REVERSE DRIVEN (NT:34)GEAR, REVERSE DRIVEN (NT:34)
-
3124333-18A00 BUSHBUSH
-
3224581-38F60 DOG, REVERSEDOG, REVERSE
-
3309167-25017 LOCK WASHERLOCK WASHER
-
3409262-17026 BEARING (17X35X10)BEARING (17X35X10)
-
3524551-38F70 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
3624561-05G02 GEAR, REVERSE IDLE (NT:29)GEAR, REVERSE IDLE (NT:29)
-
3709263-17001 BEARING (17X21X12.8)BEARING (17X21X12.8)
-
3808331-31179 CIRCLIPCIRCLIP
-
3909181-17195 SHIM (17X28X1)SHIM (17X28X1)
