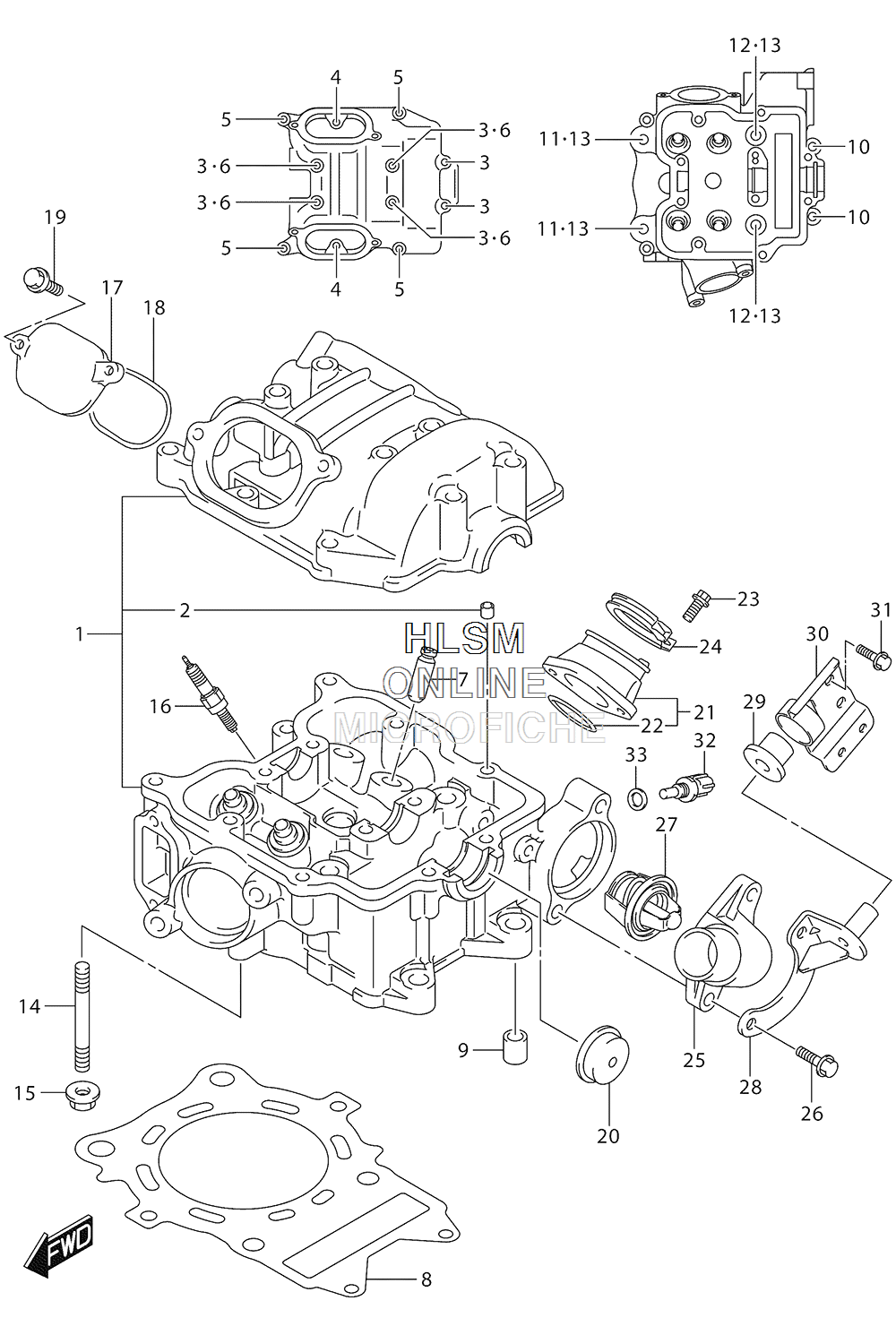

CYLINDER HEAD для Suzuki KINGQUAD 500 AXI [LTA500XL6] - 2016 года выпуска
-
№АртикулНазвание
-
111100-11H50 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209206-08001 ...PIN (8X11)...PIN (8X11)
-
309103-06064 ...BOLT (6X60)...BOLT (6X60)
-
401550-0625A ...BOLT...BOLT
-
501550-0635A ...BOLT...BOLT
-
609168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
711115-14D71 GUIDE, VALVE (OS 0.3) (OPT)GUIDE, VALVE (OS 0.3) (OPT)
-
811141-31H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
904211-13189 PINPIN
-
1009103-08212 BOLT (8X135)BOLT (8X135)
-
1109103-10179 BOLT (10X190)BOLT (10X190)
-
1209103-10180 BOLT (10X200)BOLT (10X200)
-
1309168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
1401421-0850A STUD BOLTSTUD BOLT
-
1508316-1008A NUTNUT
-
1609482-00623 SPARK PLUG (LMAR6A-9) (NGK)SPARK PLUG (LMAR6A-9) (NGK)
-
1609482-00625 SPARK PLUG (LMAR8A-9) (OPT NGK)SPARK PLUG (LMAR8A-9) (OPT NGK)
-
1711175-47D00 CAP, INSPECTIONCAP, INSPECTION
-
1811177-14D01 O RINGO RING
-
1901550-0620A BOLTBOLT
-
2009241-25007 PLUG (OD:30)PLUG (OD:30)
-
2113101-31H00 PIPE, INTAKEPIPE, INTAKE
-
2213118-11H00 ...O RING...O RING
-
2309106-06105 BOLT (6X18)BOLT (6X18)
-
2409402-56901 CLAMPCLAMP
-
2517661-31G00 COVER, THERMOSTATCOVER, THERMOSTAT
-
2607130-0825A BOLTBOLT
-
2717670-06G60 THERMOSTATTHERMOSTAT
-
2811653-11H01 PLATE, ENG MTG DAMPERPLATE, ENG MTG DAMPER
-
2911654-31G00 DAMPER, ENG MTGDAMPER, ENG MTG
-
3011655-31G10 STOPPER, ENG MTGSTOPPER, ENG MTG
-
3101550-0812A BOLTBOLT
-
3213650-10G00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
3309168-12017 GASKET (12X17X1)GASKET (12X17X1)
