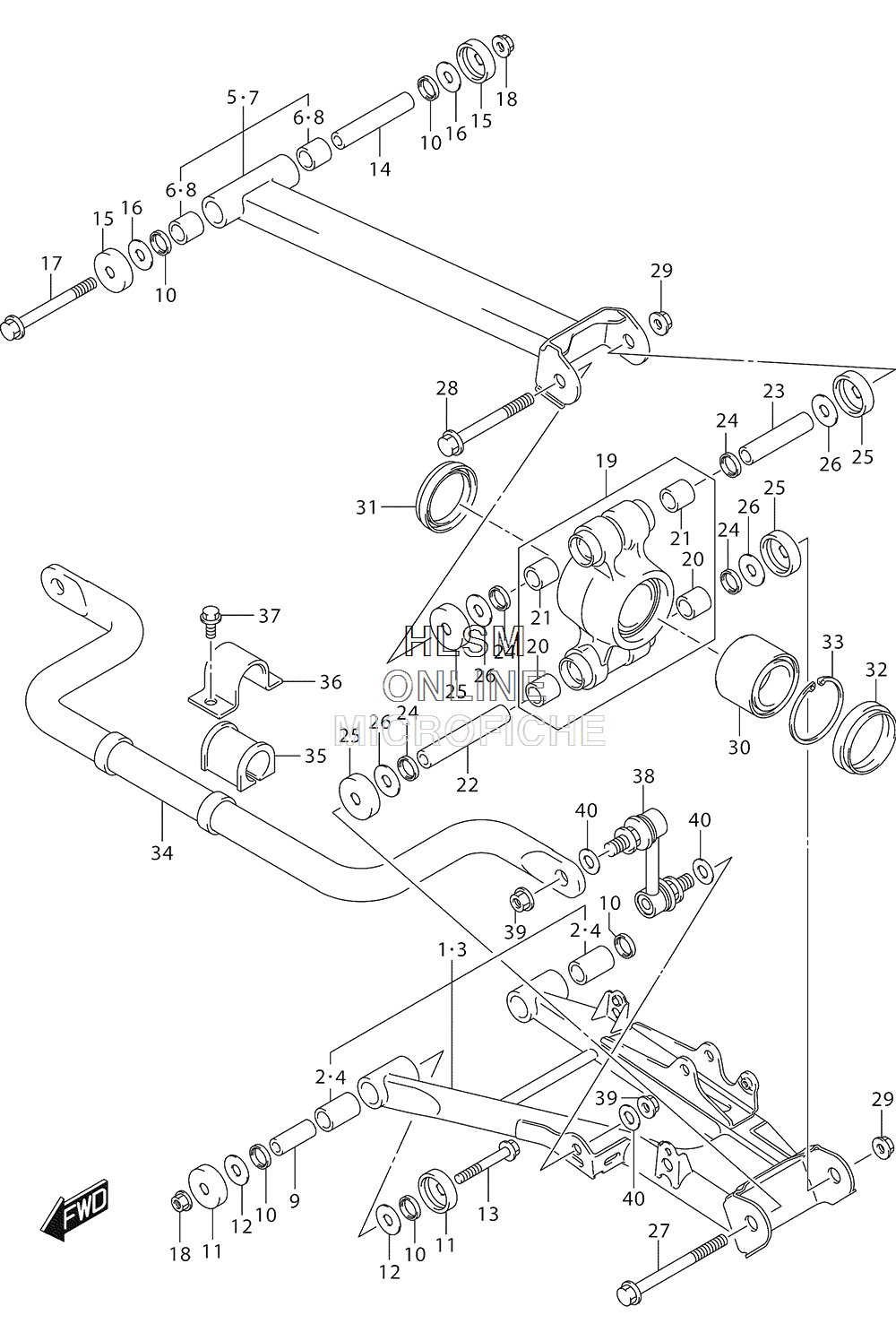

SUSPENSION - REAR ARM для Suzuki KINGQUAD 500 AXI [LTA500XL6] - 2016 года выпуска
-
№АртикулНазвание
-
161510-31821 ARM SET, REAR SUSPENSION LOWER RHARM SET, REAR SUSPENSION LOWER RH
-
251236-31G00 ...BUSH, REAR SPNSN ARM LOWER...BUSH, REAR SPNSN ARM LOWER
-
361520-31821 ARM SET, REAR SUSPENSION LOWER LHARM SET, REAR SUSPENSION LOWER LH
-
451236-31G00 ...BUSH, REAR SPNSN ARM LOWER...BUSH, REAR SPNSN ARM LOWER
-
561530-31830 ARM SET, REAR SUSPENSION UPPER RHARM SET, REAR SUSPENSION UPPER RH
-
651236-31G00 ...BUSH, REAR SPNSN ARM UPPER...BUSH, REAR SPNSN ARM UPPER
-
761540-31830 ARM SET, REAR SUSPENSION UPPER LHARM SET, REAR SUSPENSION UPPER LH
-
851236-31G00 ...BUSH, REAR SPNSN ARM UPPER...BUSH, REAR SPNSN ARM UPPER
-
961552-31G10 SPACER, REAR SPNSN ARM LOWERSPACER, REAR SPNSN ARM LOWER
-
1052454-45G00 SEALSEAL
-
1151255-18900 SEAL, REAR SPNSN ARM LOWERSEAL, REAR SPNSN ARM LOWER
-
1208211-10281 WASHERWASHER
-
1309103-10392 BOLT (10X70)BOLT (10X70)
-
1461554-31G00 SPACER, REAR SPNSN ARM UPPERSPACER, REAR SPNSN ARM UPPER
-
1551255-31G00 SEAL, REAR SPNSN ARM UPPERSEAL, REAR SPNSN ARM UPPER
-
1608211-10281 WASHERWASHER
-
1709103-10388 BOLT (10X120)BOLT (10X120)
-
1809159-10115 NUTNUT
-
1961600-11820 KNUCKLE SET, REAR SUSPENSIONKNUCKLE SET, REAR SUSPENSION
-
2051236-31G00 ...BUSH, REAR KNUCKLE...BUSH, REAR KNUCKLE
-
2161551-31G10 ...BUSH, REAR KNUCKLE UPPER...BUSH, REAR KNUCKLE UPPER
-
2261554-31G00 SPACER, REAR KNUCKLE LOWERSPACER, REAR KNUCKLE LOWER
-
2361553-31G10 SPACER, REAR KNUCKLE UPPERSPACER, REAR KNUCKLE UPPER
-
2452454-45G00 SEALSEAL
-
2551255-18900 SEAL, REAR KNUCKLE DUSTSEAL, REAR KNUCKLE DUST
-
2608211-10281 WASHERWASHER
-
2709103-10388 BOLT (10X120)BOLT (10X120)
-
2809103-10387 BOLT (10X96)BOLT (10X96)
-
2909159-10115 NUTNUT
-
3043440-58J00 BEARING, REAR HUBBEARING, REAR HUB
-
3161615-31G00 SEAL, REAR HUB INNER DUSTSEAL, REAR HUB INNER DUST
-
3261616-31G00 SEAL, REAR HUB OUTER DUSTSEAL, REAR HUB OUTER DUST
-
3308331-4162A CLIPCLIP
-
3461651-31G10 BAR, REAR STABILIZERBAR, REAR STABILIZER
-
3561652-31G20 BUSH, REAR STABILIZERBUSH, REAR STABILIZER
-
3642415-66D00 BRACKET, STABILIZER BAR MOUNTBRACKET, STABILIZER BAR MOUNT
-
3709103-08283 BOLT (8X16)BOLT (8X16)
-
3861660-31G20 JOINT, REAR STABILIZERJOINT, REAR STABILIZER
-
3909159-10223 NUTNUT
-
4009160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
