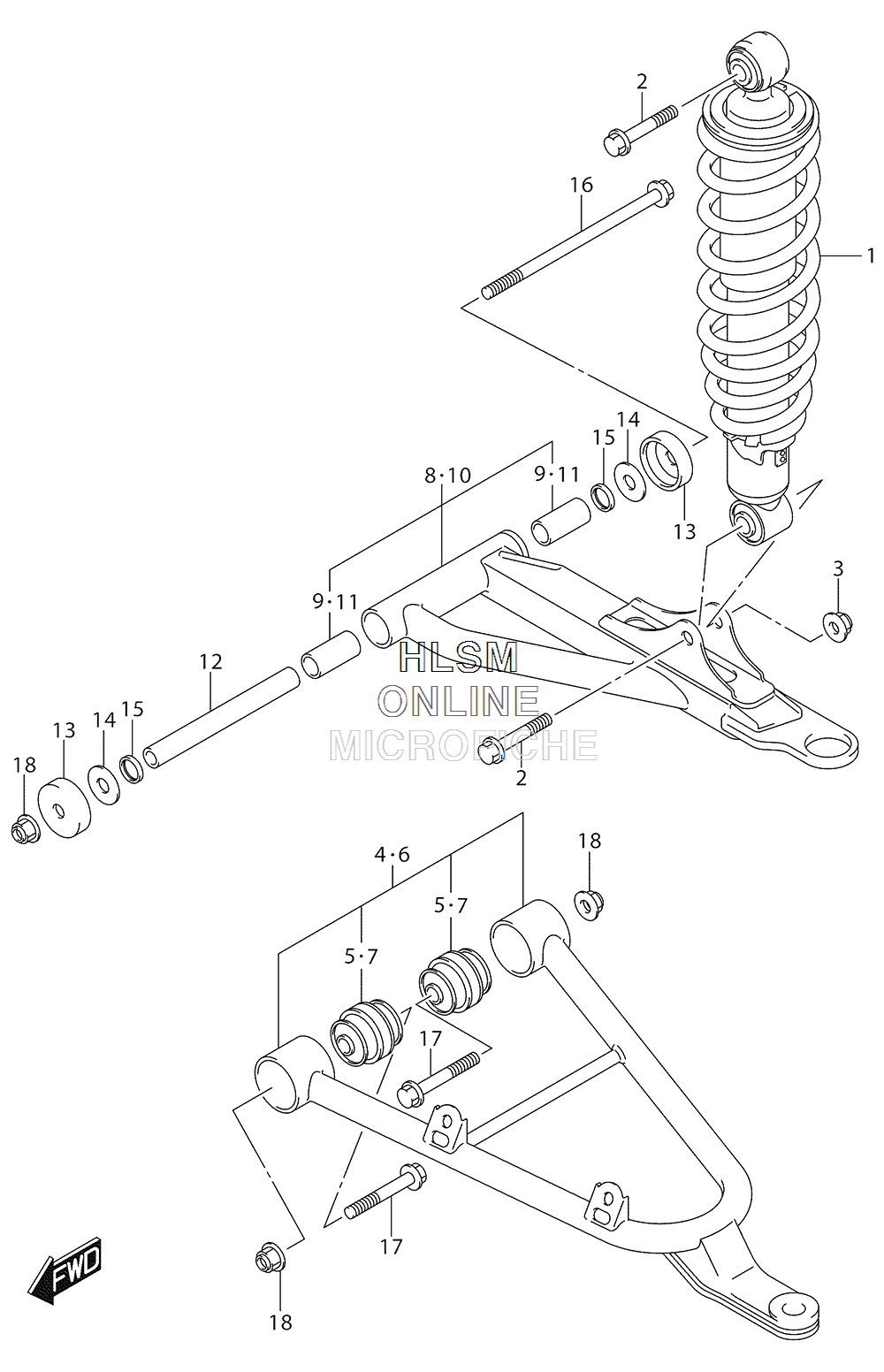

SUSPENSION - FRONT ARM для Suzuki KINGQUAD 500 AXI [LTA500XL6] - 2016 года выпуска
-
№АртикулНазвание
-
152100-11H10-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10126 BOLT (10X48)BOLT (10X48)
-
309159-10115 NUTNUT
-
452410-31820 ARM SET, SUSPENSION LOWER RHARM SET, SUSPENSION LOWER RH
-
509319-10055 ...BUSH...BUSH
-
652420-31820 ARM SET, SUSPENSION LOWER LHARM SET, SUSPENSION LOWER LH
-
709319-10055 ...BUSH...BUSH
-
852430-31820 ARM SET, SUSPENSION UPPER RHARM SET, SUSPENSION UPPER RH
-
951236-31G00 ...BUSH...BUSH
-
1052440-31820 ARM SET, SUSPENSION UPPER LHARM SET, SUSPENSION UPPER LH
-
1151236-31G00 ...BUSH...BUSH
-
1252455-31G10 SPACER, PIVOTSPACER, PIVOT
-
1351255-18900 SEAL, FRONT SUSPENSION ARM PIVOTSEAL, FRONT SUSPENSION ARM PIVOT
-
1408211-10281 WASHERWASHER
-
1552454-45G00 SEALSEAL
-
1609103-10389 BOLT (10X160)BOLT (10X160)
-
1709103-10255 BOLT (10X57)BOLT (10X57)
-
1809159-10115 NUTNUT
