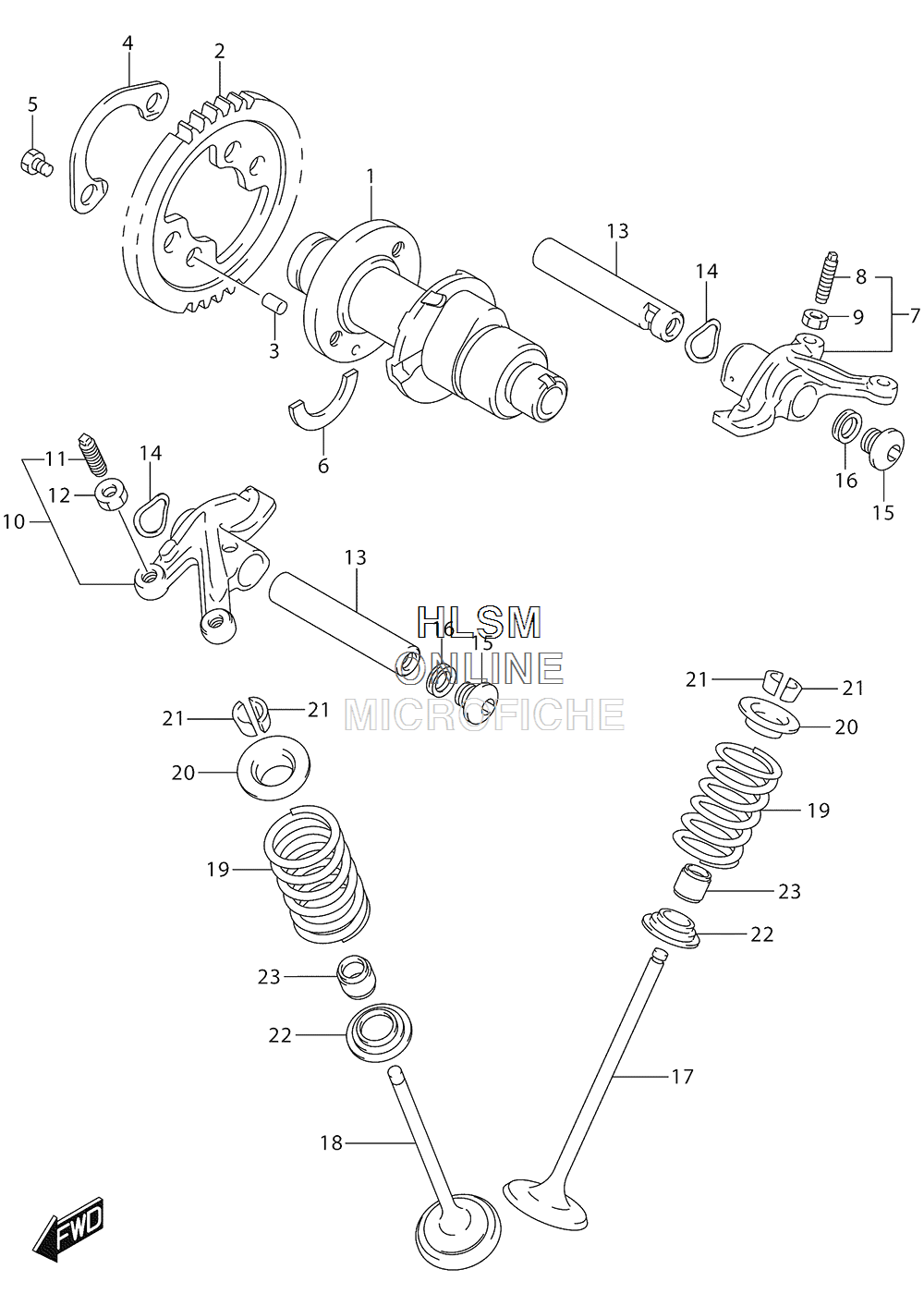

CAM SHAFT - W/ VALVES для Suzuki KINGQUAD 500 AXI SE [LTA500XPZL6] - 2016 года выпуска
-
№АртикулНазвание
-
112710-31H00 CAM SHAFTCAM SHAFT
-
212741-09F00 SPROCKET (NT:42)SPROCKET (NT:42)
-
309261-05005 PIN (5X8)PIN (5X8)
-
412747-44B00 WASHERWASHER
-
509100-06166 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712840-31H00 ARM, VALVE ROCKER INTAKEARM, VALVE ROCKER INTAKE
-
812842-17C50 ...SCREW...SCREW
-
912843-27A00 ...NUT...NUT
-
1012850-31H00 ARM, VALVE ROCKER EXHAUSTARM, VALVE ROCKER EXHAUST
-
1112842-17C50 ...SCREW...SCREW
-
1212843-27A00 ...NUT...NUT
-
1312861-14D50 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
1409164-12018 WASHERWASHER
-
1509248-14012 PLUGPLUG
-
1609168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1712911-14D10 VALVE, INTAKEVALVE, INTAKE
-
1812912-14D01 VALVE, EXHAUSTVALVE, EXHAUST
-
1912921-03G00 SPRING, VALVESPRING, VALVE
-
2012931-27A20 RETAINER, SPRINGRETAINER, SPRING
-
2112932-27A00 COTTER, VALVECOTTER, VALVE
-
2212933-81400 SEAT, SPRINGSEAT, SPRING
-
2309289-05011 OIL SEAL (5X10X9.7)OIL SEAL (5X10X9.7)
