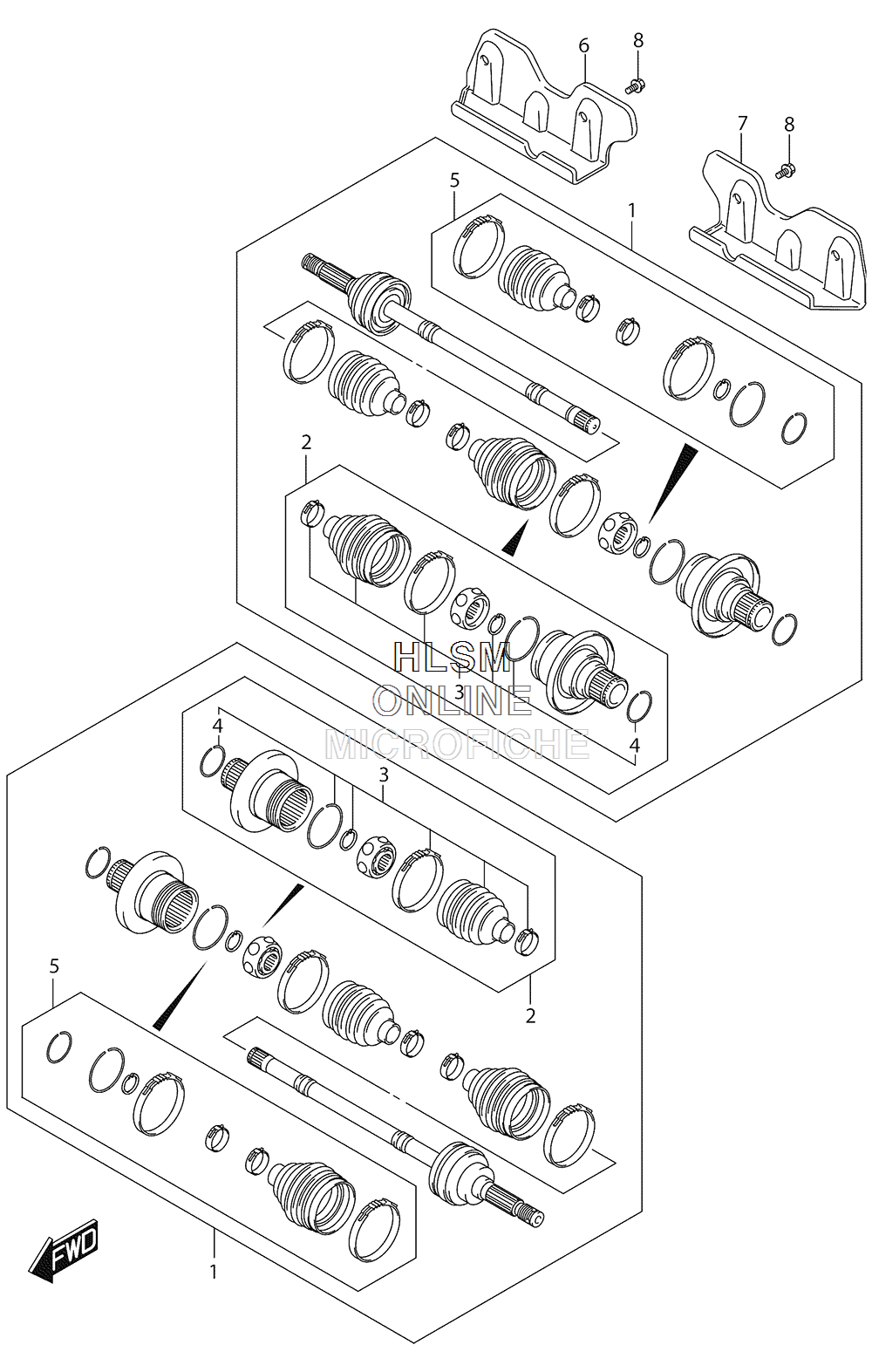

DRIVESHAFT - REAR для Suzuki KINGQUAD 500 AXI SE [LTA500XPZL6] - 2016 года выпуска
-
№АртикулНазвание
-
164901-31G31 SHAFT ASSY, REAR DRIVESHAFT ASSY, REAR DRIVE
-
264933-31G21 ...JOINT SET...JOINT SET
-
364931-31G21 ......BOOT SET, INNER......BOOT SET, INNER
-
454925-31G01 .........CIRCLIP.........CIRCLIP
-
564930-31G21 ...BOOT SET, OUTER...BOOT SET, OUTER
-
664903-31G10 PROTECTOR, REAR DRIVE SHAFT RHPROTECTOR, REAR DRIVE SHAFT RH
-
764904-31G10 PROTECTOR, REAR DRIVE SHAFT LHPROTECTOR, REAR DRIVE SHAFT LH
-
809111-06085 BOLT (6X12)BOLT (6X12)
