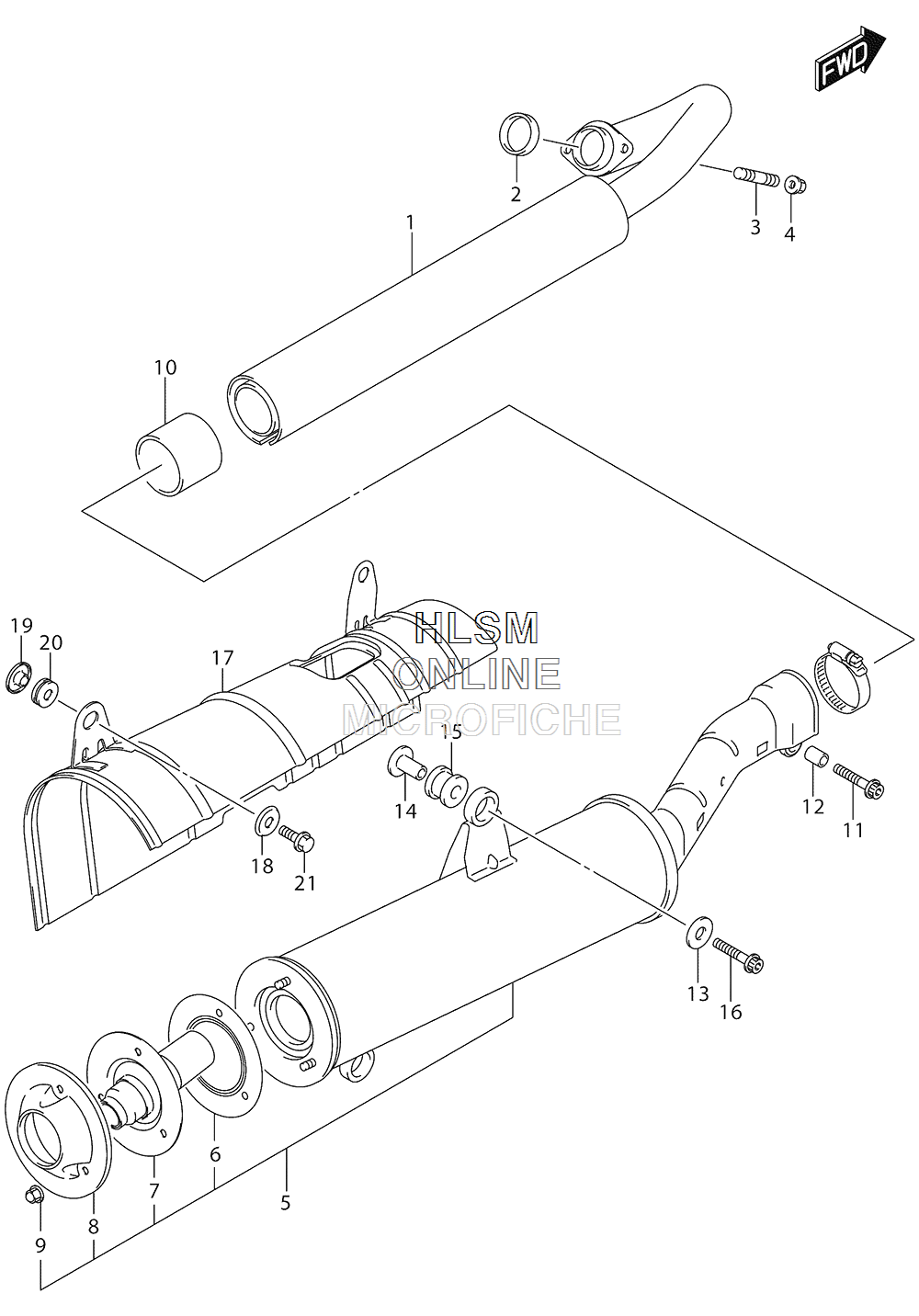

MUFFLER для Suzuki KINGQUAD 500 AXI SE [LTA500XPZL6] - 2016 года выпуска
-
№АртикулНазвание
-
114100-11H00 PIPE ASSY, EXHPIPE ASSY, EXH
-
214181-18C00 GASKET, EXH PIPEGASKET, EXH PIPE
-
301421-0820A STUD BOLTSTUD BOLT
-
408319-3108A NUTNUT
-
514310-11H10 BODY, MUFFLERBODY, MUFFLER
-
614770-11H00 ...GASKET...GASKET
-
714850-11H10 ...ARRESTER...ARRESTER
-
814852-11H00 ...PLATE...PLATE
-
908313-20067 ...NUT...NUT
-
1014771-13E00 CONNECTOR, MUF JTCONNECTOR, MUF JT
-
1107120-0835A BOLTBOLT
-
1214424-07G01 SPACERSPACER
-
1309160-08503 WASHER (8.5X30X2.3)WASHER (8.5X30X2.3)
-
1409180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
1509320-12071 CUSHIONCUSHION
-
1607120-0840A BOLTBOLT
-
1714880-31G00 COVER, MUFFLERCOVER, MUFFLER
-
1814184-07G00 WASHER, MUF COVERWASHER, MUF COVER
-
1914185-07G00 SPACER, MUF COVERSPACER, MUF COVER
-
2009320-08069 CUSHIONCUSHION
-
2101550-0616A BOLTBOLT
