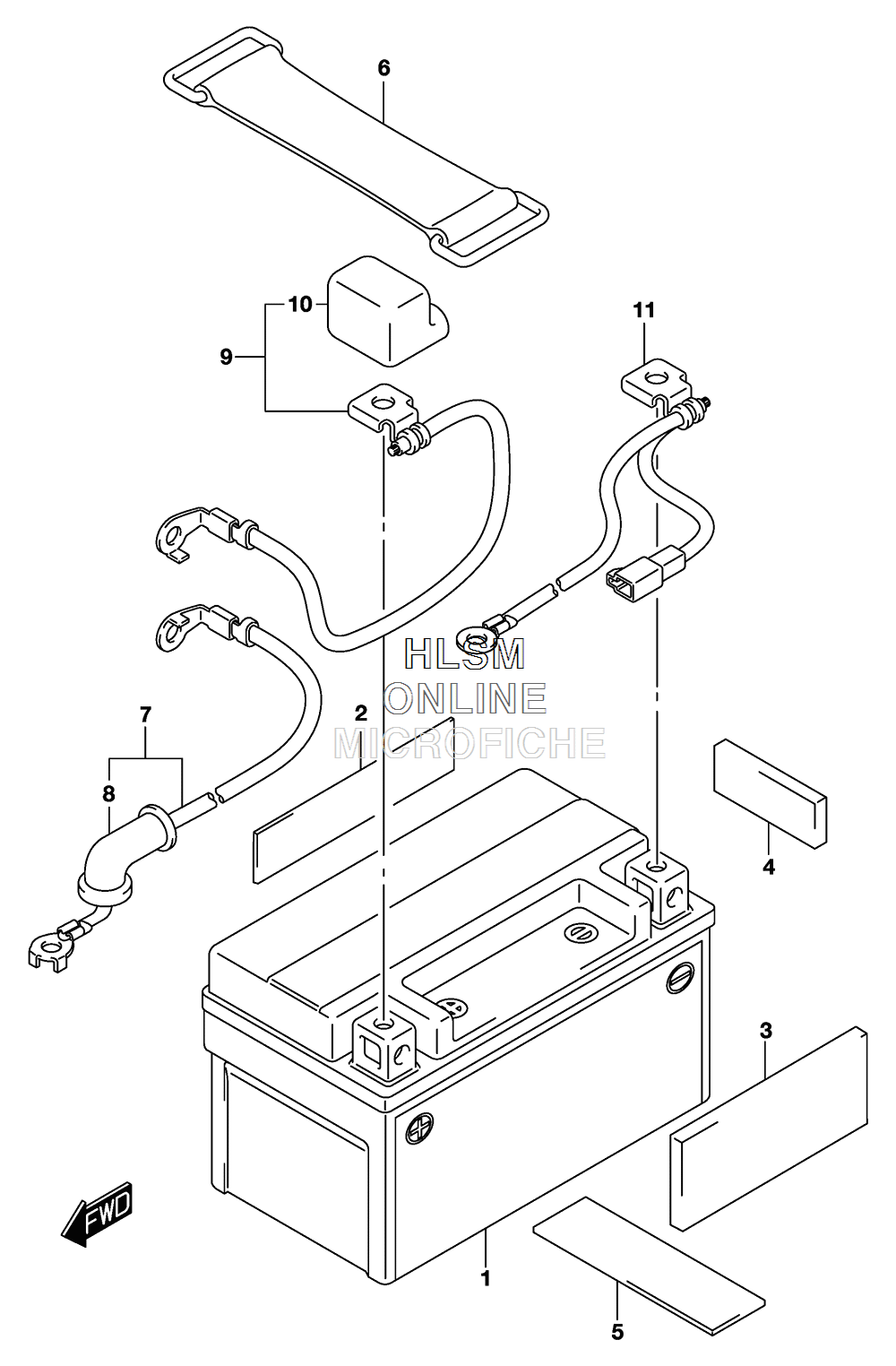

BATTERY для Suzuki QUADSPORT Z90 [LTZ90L6] - 2016 года выпуска
-
№АртикулНазвание
-
133610-46F00 BATTERY ASSY (YTX7A-BS,12V6AH)BATTERY ASSY (YTX7A-BS,12V6AH)
-
233652-08H00 PROTECTOR (20X90X2)PROTECTOR (20X90X2)
-
333652-08H10 PROTECTOR (40X85X6)PROTECTOR (40X85X6)
-
433652-08420 PROTECTOR (70X100X6) (CUT AS REQUIRED PROFILE (20X45))PROTECTOR (70X100X6) (CUT AS REQUIRED PROFILE (20X45))
-
533652-41B00 PROTECTOR (27X80X3)PROTECTOR (27X80X3)
-
609462-00034 BAND, BATTERYBAND, BATTERY
-
733810-08H00 WIRE, STARTER MOTORWIRE, STARTER MOTOR
-
831861-48B10 ...CAP, STARTER MOTOR...CAP, STARTER MOTOR
-
933820-08H00 WIRE, BATTERY PLUSWIRE, BATTERY PLUS
-
1033624-10D00 ...CAP, BATTERY PLUS...CAP, BATTERY PLUS
-
1133860-08H00 WIRE, BATTERY MINUSWIRE, BATTERY MINUS
