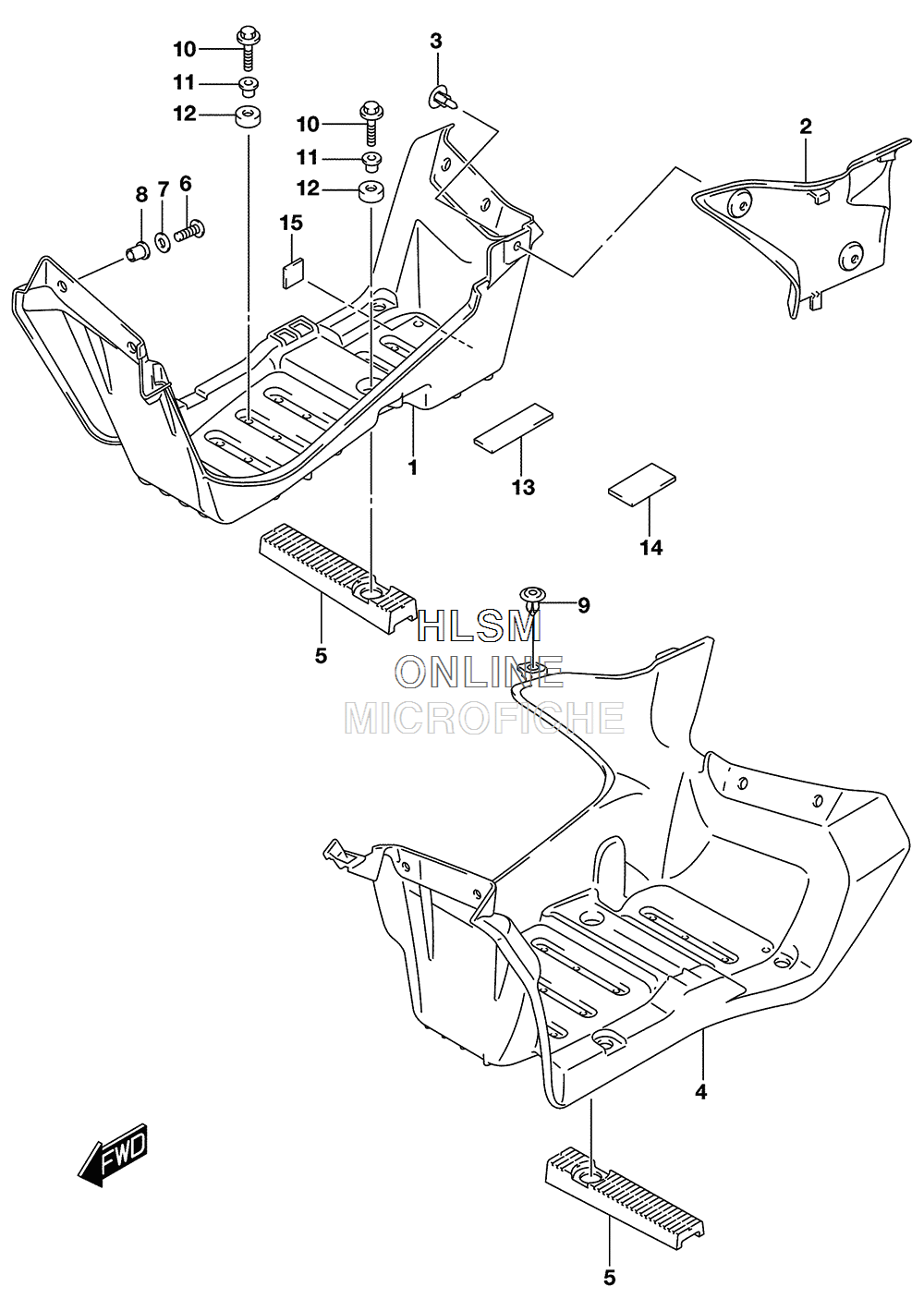

MUDGUARD для Suzuki QUADSPORT Z90 [LTZ90L6] - 2016 года выпуска
-
№АртикулНазвание
-
163331-08H00-291 MUDGUARD, FOOTREST RH (BLACK)MUDGUARD, FOOTREST RH (BLACK)
-
263332-08H00-291 LID, FOOTREST (BLACK)LID, FOOTREST (BLACK)
-
309409-07333 CLIP, LIDCLIP, LID
-
463341-08H00-291 MUDGUARD, FOOTREST LH (BLACK)MUDGUARD, FOOTREST LH (BLACK)
-
563356-08H00 RUBBER, FOOTREST GUARDRUBBER, FOOTREST GUARD
-
602142-0520B SCREW, UPPERSCREW, UPPER
-
709160-05046 WASHER (5.5X20X1.4)WASHER (5.5X20X1.4)
-
809159-05019 NUTNUT
-
909409-07333 CLIP, UPPERCLIP, UPPER
-
1001550-0620A BOLT, FOOTRESTBOLT, FOOTREST
-
1109169-06062 SPACER, FRONTSPACER, FRONT
-
1209320-09016 CUSHION, FRONTCUSHION, FRONT
-
1363122-08H00 SHIELD, FOOTRESTSHIELD, FOOTREST
-
1463123-08H00 SHIELD, FOOTRESTSHIELD, FOOTREST
-
1513719-84150 PADPAD
