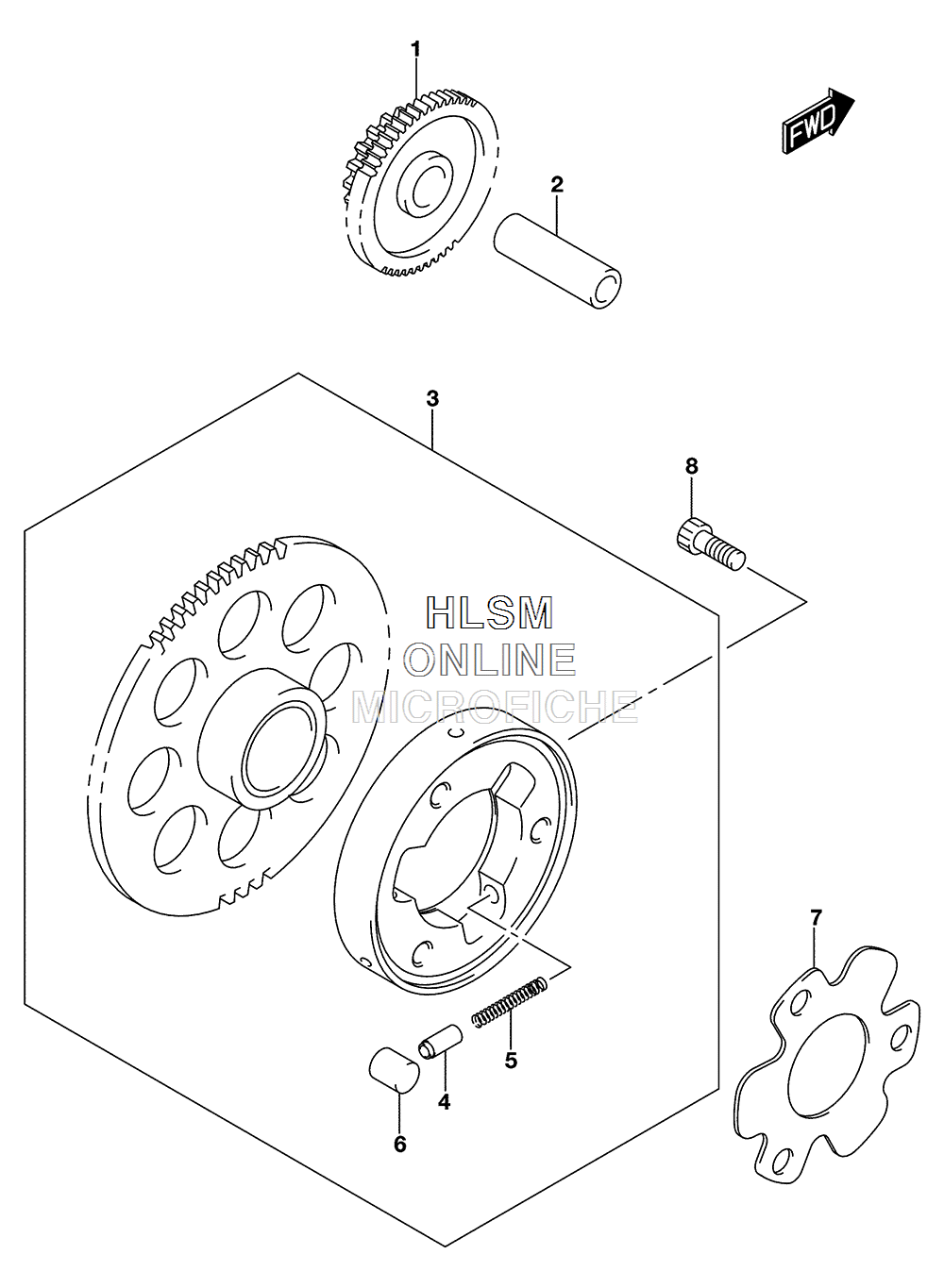

STARTER CLUTCH для Suzuki QUADSPORT Z90 [LTZ90L6] - 2016 года выпуска
-
№АртикулНазвание
-
112611-33G00 GEAR, STARTER IDLEGEAR, STARTER IDLE
-
209206-13007 PIN (7.4X13X40)PIN (7.4X13X40)
-
312600-08812 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
412633-05300 ...PIECE, STARTER CLUTCH PUSH...PIECE, STARTER CLUTCH PUSH
-
509261-10003 ...ROLLER (10X11)...ROLLER (10X11)
-
609440-03007 ...SPRING...SPRING
-
712649-30D00 SHIM, STARTER CLUTCH HUBSHIM, STARTER CLUTCH HUB
-
807130-0616B BOLTBOLT
