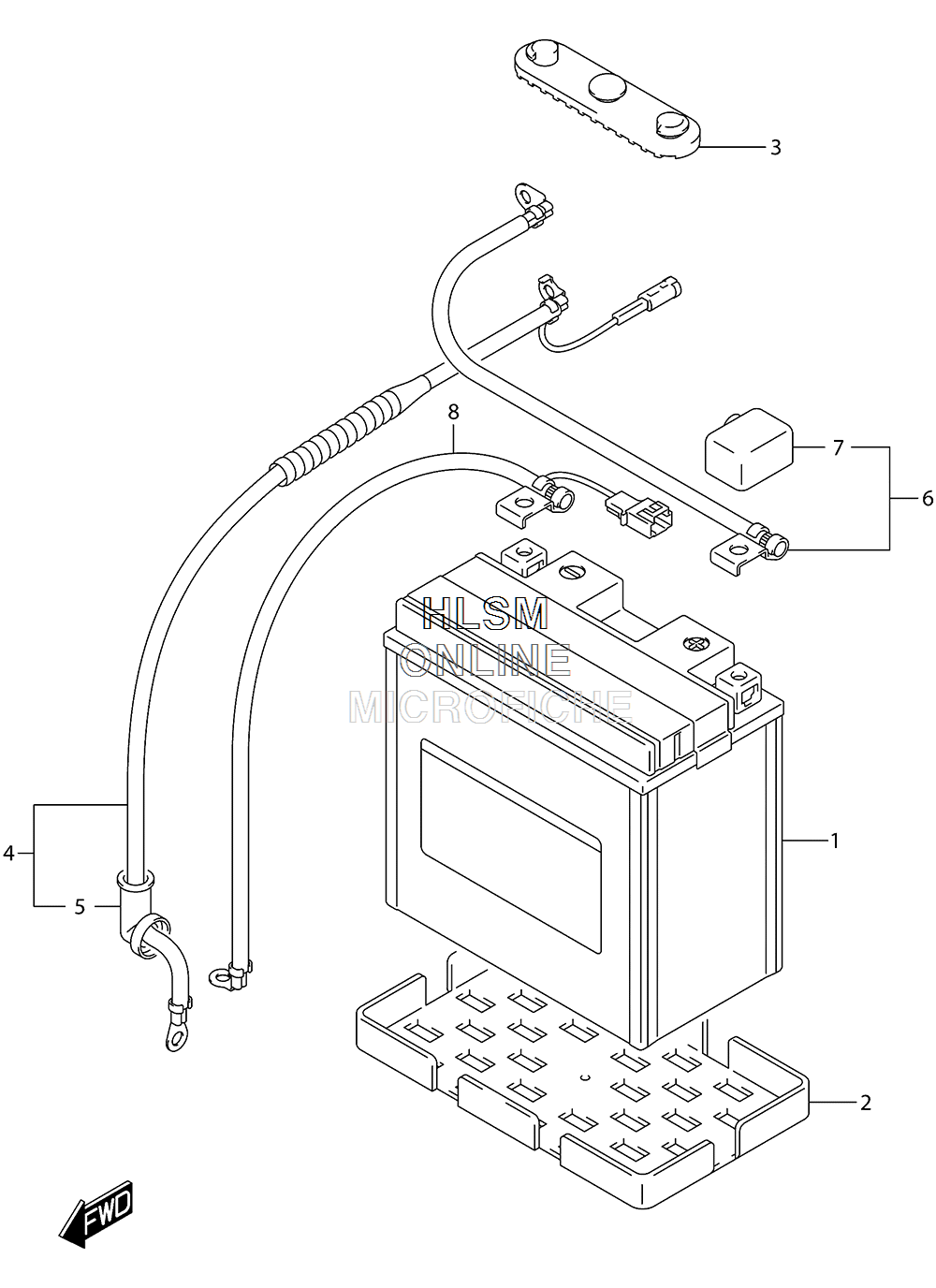

BATTERY для Suzuki KINGQUAD 500AXi (CAMO) [LTA-500XZ] - 2017 года выпуска
-
№АртикулНазвание
-
133610-03G12 BATTERY ASSY (YTX20CH-BS,12V18AH)BATTERY ASSY (YTX20CH-BS,12V18AH)
-
233652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333652-07G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
433810-11H10 WIRE, STARTER MOTORWIRE, STARTER MOTOR
-
531861-48B10 ...CAP, STARTER MOTOR LEAD...CAP, STARTER MOTOR LEAD
-
633820-31G00 WIRE, BATTERY PLUSWIRE, BATTERY PLUS
-
733624-10D00 ...CAP, BATTERY PLUS TERM...CAP, BATTERY PLUS TERM
-
833860-31G10 WIRE, BATTERY MINUSWIRE, BATTERY MINUS
