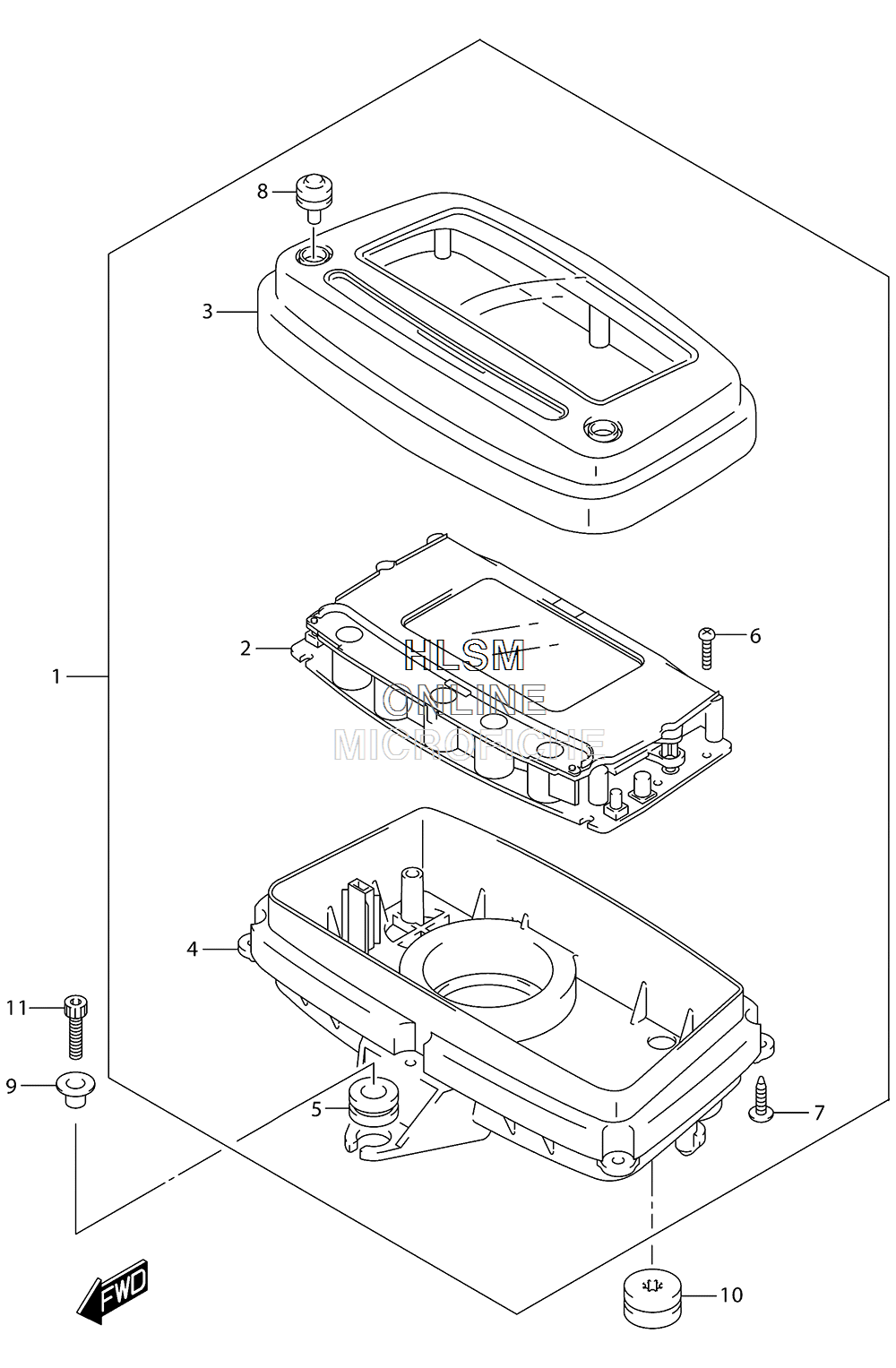

SPEEDOMETER (CANADA) для Suzuki KINGQUAD 500AXi (CAMO) [LTA-500XZ] - 2017 года выпуска
-
№АртикулНазвание
-
134100-11HG0 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
234120-11HG0 ...SPEEDOMETER...SPEEDOMETER
-
334150-31G30 ...CASE, UPPER...CASE, UPPER
-
434111-31G30 ...CASE, LOWER...CASE, LOWER
-
534995-31G30 ...CUSHION, RUBBER...CUSHION, RUBBER
-
634147-31G30 ...SCREW (3X10)...SCREW (3X10)
-
734149-31G30 ...SCREW (3X12)...SCREW (3X12)
-
834124-31G30 ...SWITCH RUBBER...SWITCH RUBBER
-
934187-47F00 SPACER, SPEEDOMETERSPACER, SPEEDOMETER
-
1034955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1107130-0520B BOLTBOLT
