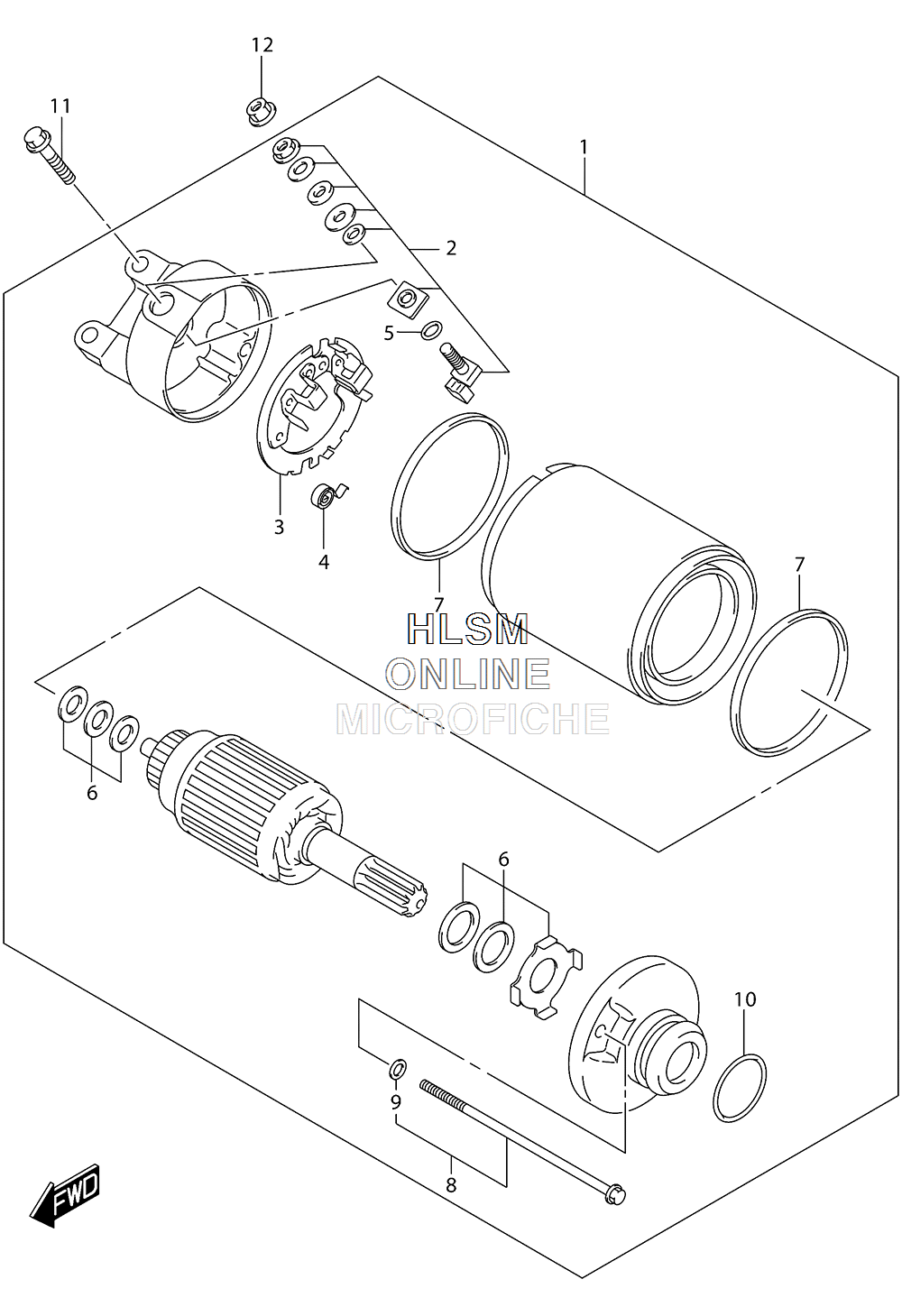

STARTING MOTOR для Suzuki KINGQUAD 500AXi (CAMO) [LTA-500XZ] - 2017 года выпуска
-
№АртикулНазвание
-
131100-11H00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-13E00 ...TERMINAL SET, BRUSH...TERMINAL SET, BRUSH
-
331132-13E00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
431135-31300 ...SPRING, BRUSH...SPRING, BRUSH
-
531143-49040 ...O RING...O RING
-
631170-19B10 ...WASHER SET...WASHER SET
-
731264-13E00 ...O RING...O RING
-
831280-19F00 ...SET BOLT...SET BOLT
-
931156-13E00 ......O RING......O RING
-
1009280-24003 ...O RING (D:3,ID:24.5)...O RING (D:3,ID:24.5)
-
1101547-0625A BOLTBOLT
-
1208361-3506A NUTNUT
