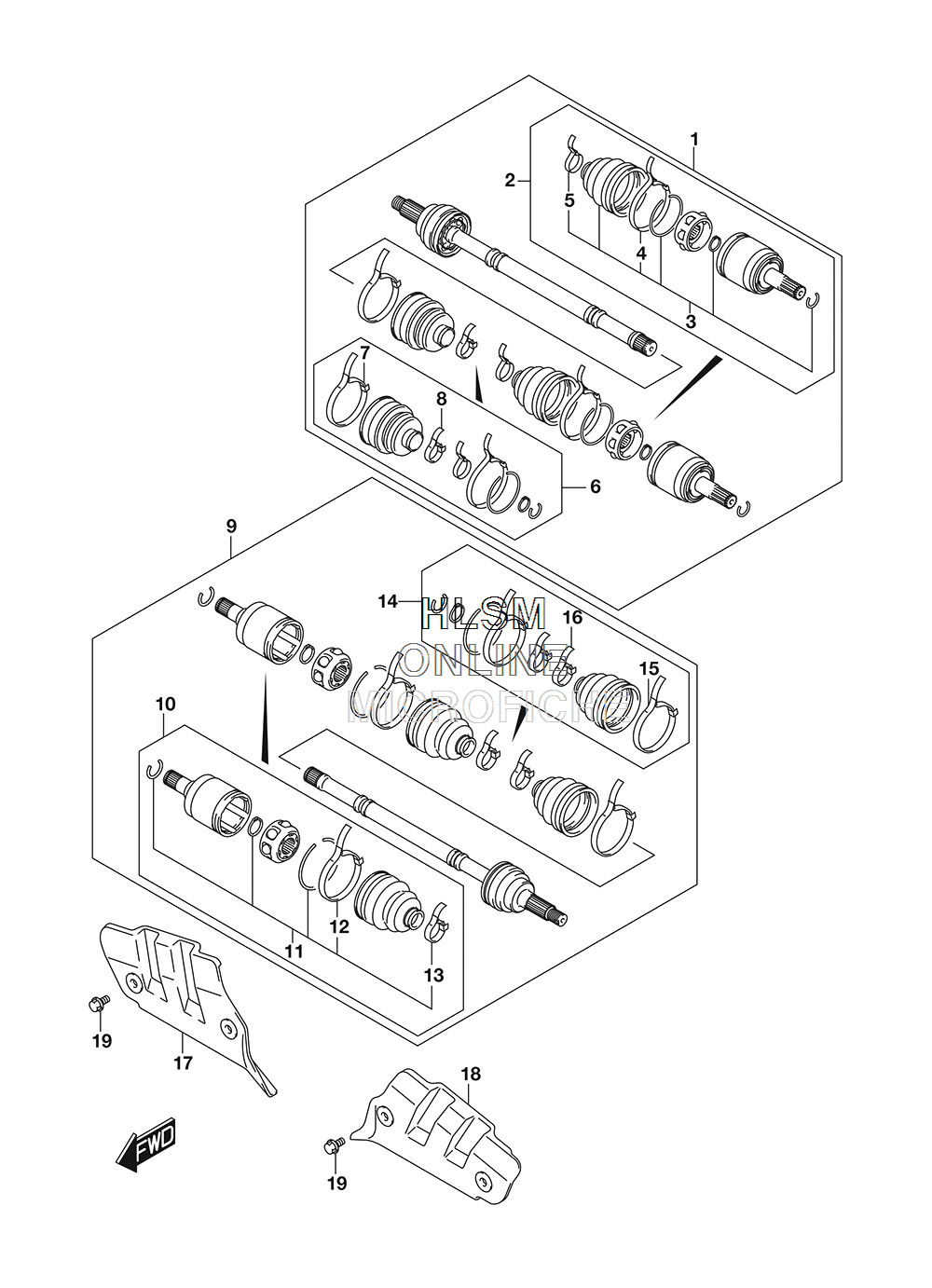

DRIVE SHAFT - FRONT для Suzuki LT-A400FL8 KINGQUAD 400ASI - 2018 года выпуска
-
№АртикулНазвание
-
154901-27H01 SHAFT ASSY, FRONT DRIVE (RH)SHAFT ASSY, FRONT DRIVE (RH)
-
254933-38F14 ...JOINT SET...JOINT SET
-
354931-38F14 ......BOOT SET, INNER......BOOT SET, INNER
-
444121-38F20 .......BAND, BOOT.......BAND, BOOT
-
544124-38F00 .......BAND, BOOT.......BAND, BOOT
-
654930-27H01 ...BOOT SET, OUTER...BOOT SET, OUTER
-
744121-38F30 ......BAND, BOOT......BAND, BOOT
-
844124-38F00 ......BAND, BOOT......BAND, BOOT
-
954902-27H01 SHAFT ASSY, FRONT DRIVE (LH)SHAFT ASSY, FRONT DRIVE (LH)
-
1054933-38F14 ...JOINT SET...JOINT SET
-
1154931-38F14 ......BOOT SET, INNER......BOOT SET, INNER
-
1244121-38F20 .......BAND, BOOT.......BAND, BOOT
-
1344124-38F00 .......BAND, BOOT.......BAND, BOOT
-
1454930-27H01 ...BOOT SET, OUTER...BOOT SET, OUTER
-
1544121-38F30 ......BAND, BOOT......BAND, BOOT
-
1644124-38F00 ......BAND, BOOT......BAND, BOOT
-
1754903-27H00 PROTECTOR, DRIVE SHAFT (RH)PROTECTOR, DRIVE SHAFT (RH)
-
1854904-27H00 PROTECTOR, DRIVE SHAFT (LH)PROTECTOR, DRIVE SHAFT (LH)
-
1909111-06085 BOLT (6X12)BOLT (6X12)
