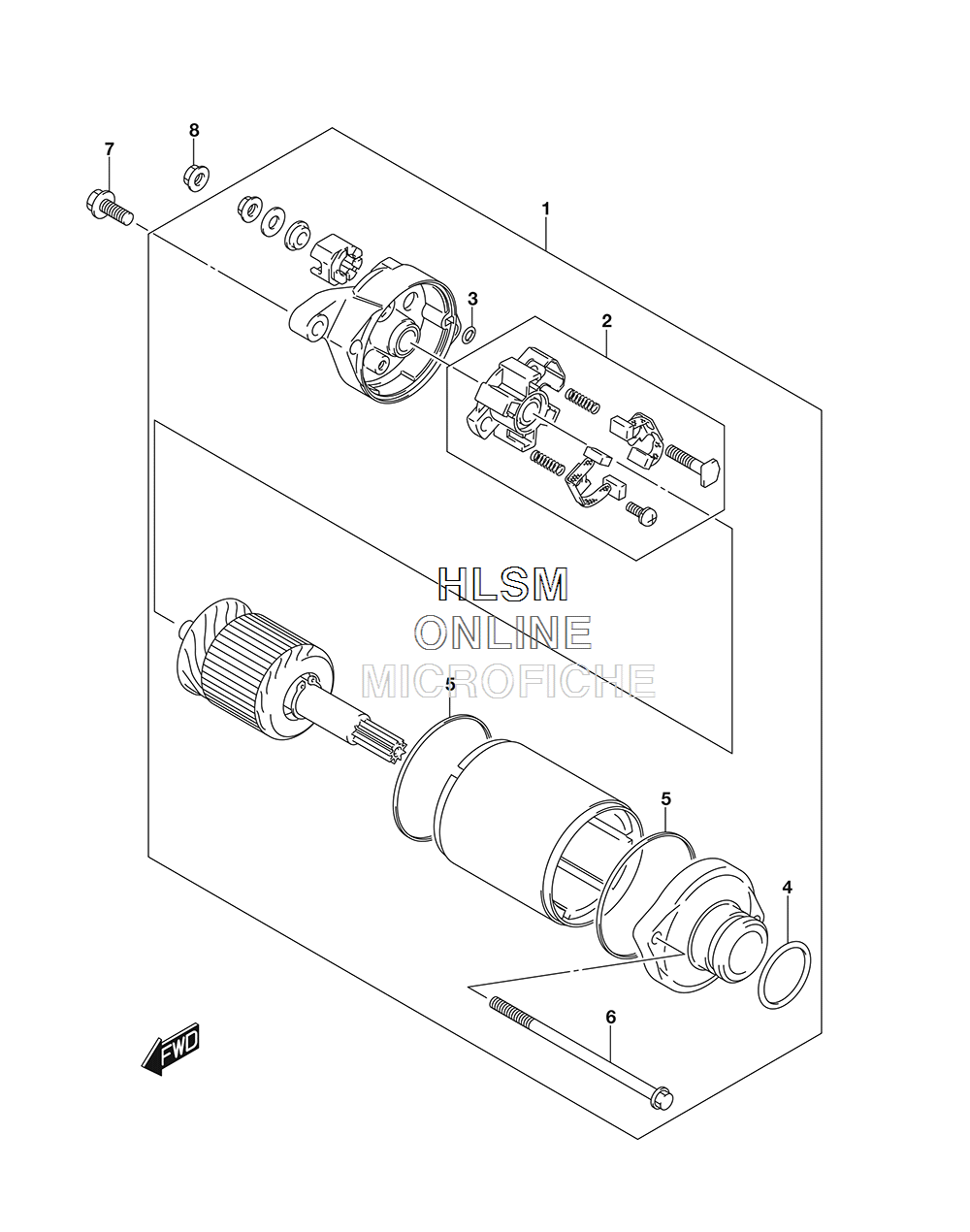

STARTING MOTOR для Suzuki LT-A400FL8 KINGQUAD 400ASI - 2018 года выпуска
-
№АртикулНазвание
-
131100-38F20 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231132-38F10 ...BRUSH HOLDER SET...BRUSH HOLDER SET
-
331143-49040 ...O-RING...O-RING
-
431156-98E00 ...O-RING...O-RING
-
531264-38F10 ...SQUARE RING...SQUARE RING
-
631280-38F10 ...SET BOLT...SET BOLT
-
701547-0625A BOLTBOLT
-
808361-3506A NUTNUT
