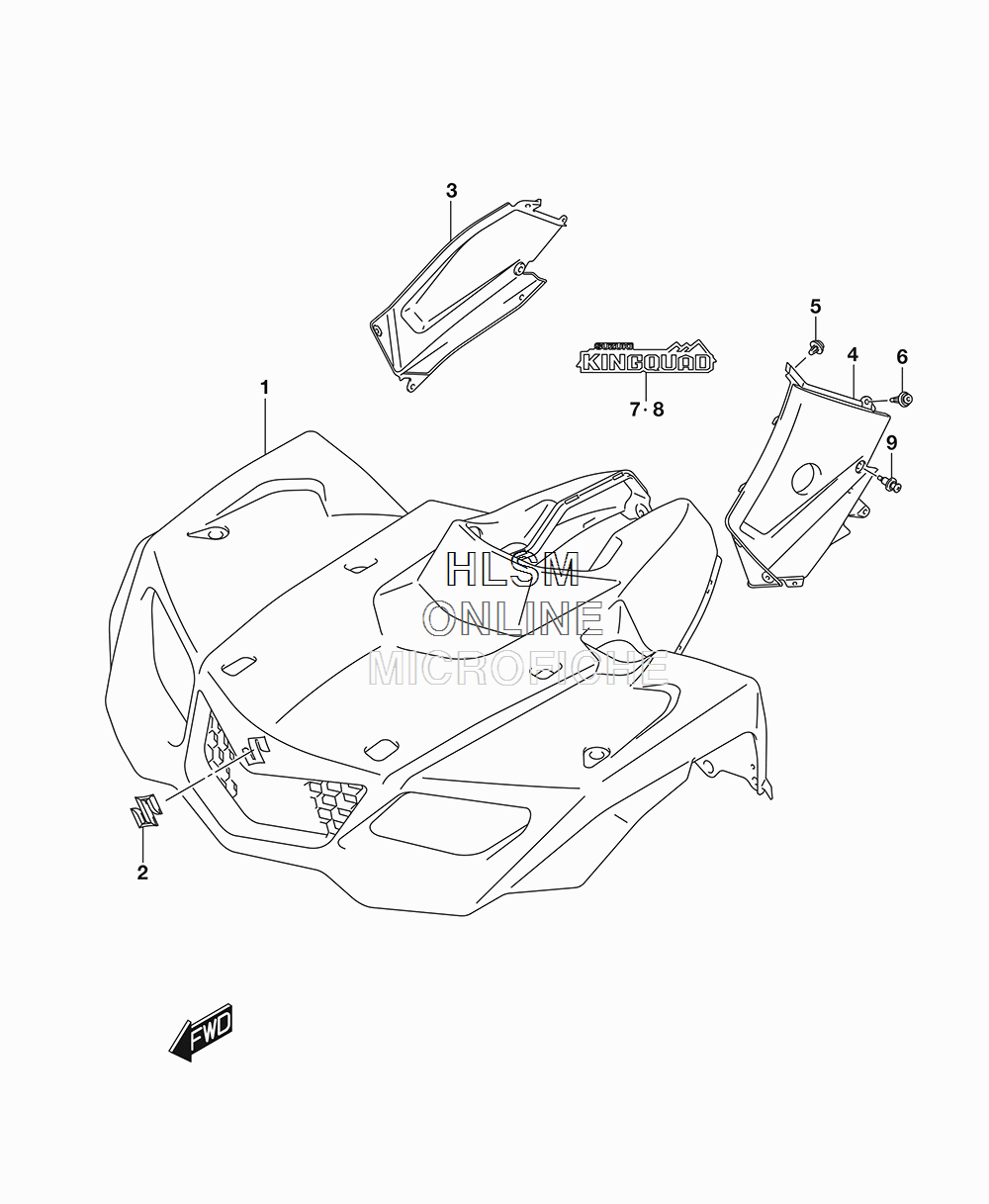

FENDER - FRONT для Suzuki LT-A400FL8 KINGQUAD 400ASI - 2018 года выпуска
-
№АртикулНазвание
-
1-153111-27H01-YT9 FENDER, FRONT (YT9 - RED)FENDER, FRONT (YT9 - RED)
-
1-253111-27H01-YLG FENDER, FRONT (YLG - GREEN)FENDER, FRONT (YLG - GREEN)
-
1-353111-27H11-PHW FENDER, FRONT (PHW - CAMOUFLAGE)FENDER, FRONT (PHW - CAMOUFLAGE)
-
1-453111-27H30-QFA FENDER, FRONT (QFA - BLACK)FENDER, FRONT (QFA - BLACK)
-
268151-03G40 EMBLEM, "S"EMBLEM, "S"
-
353112-27H02-291 COVER, SIDE (RH) (291 - BLACK)COVER, SIDE (RH) (291 - BLACK)
-
453122-27H11-291 COVER, SIDE (LH) (291 - BLACK)COVER, SIDE (LH) (291 - BLACK)
-
509409-07333 CLIPCLIP
-
609409-08335 CLIPCLIP
-
768151-27HA0-EFG EMBLEM, FRONT FENDER, (RH) (EFG - WHITE/SILVER/GRAY/GRAY)EMBLEM, FRONT FENDER, (RH) (EFG - WHITE/SILVER/GRAY/GRAY)
-
868152-27HA0-EFG EMBLEM, FRONT FENDER, (LH) (EFG - WHITE/SILVER/GRAY/GRAY)EMBLEM, FRONT FENDER, (LH) (EFG - WHITE/SILVER/GRAY/GRAY)
