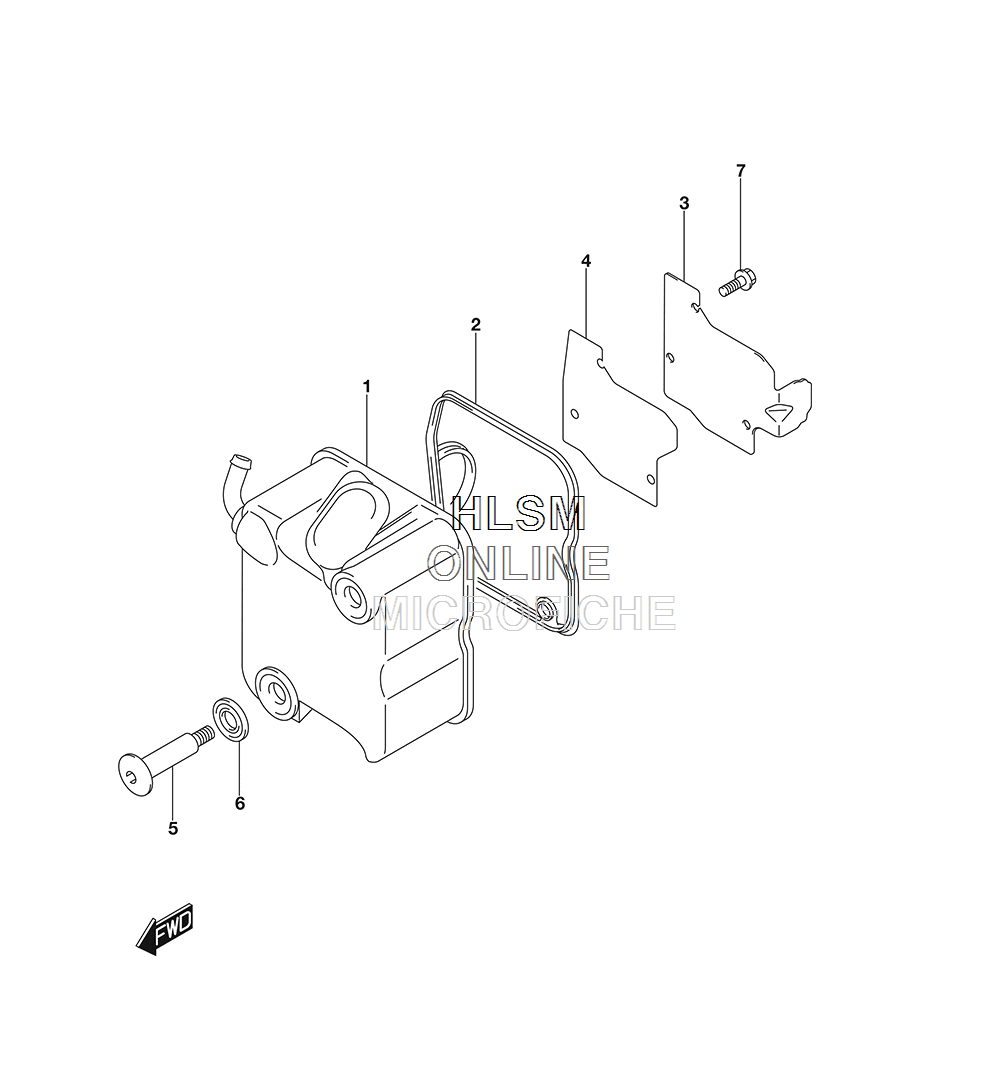

CYLINDER HEAD COVER для Suzuki LT-Z90L8 QUADSPORT Z90 - 2018 года выпуска
-
№АртикулНазвание
-
111170-08H00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
211173-33G50 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
311176-08H00 PLATE, BREATHERPLATE, BREATHER
-
411177-08H00 GASKET, PLATEGASKET, PLATE
-
509106-07016 BOLT (7X49)BOLT (7X49)
-
611191-27E00 WASHERWASHER
