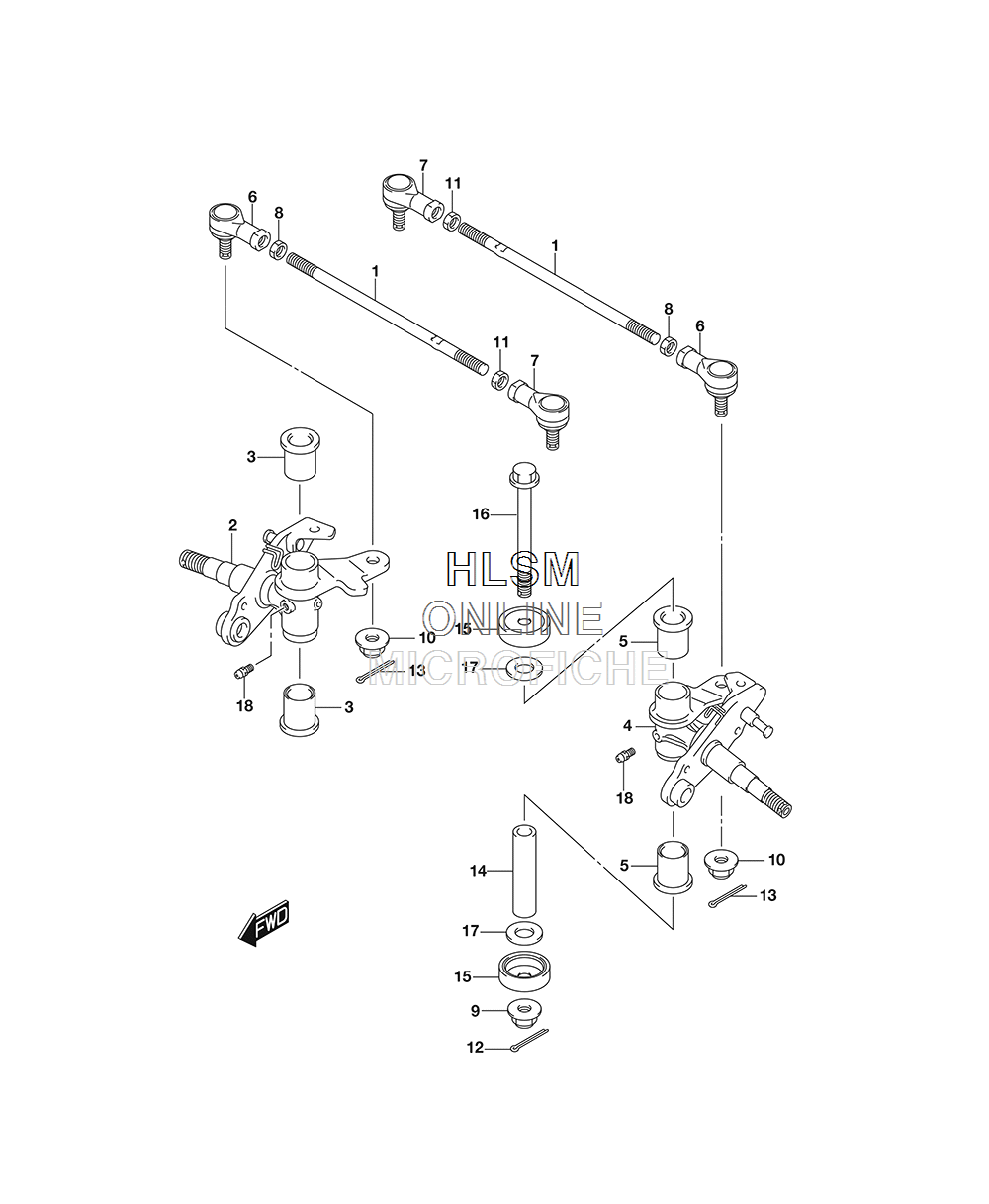

KNUCKLE W/ TIE RODS для Suzuki LT-Z90L8 QUADSPORT Z90 - 2018 года выпуска
-
№АртикулНазвание
-
151281-08H10 TIE ROD, STEERINGTIE ROD, STEERING
-
251230-08H00 KNUCKLE ARM, (RH)KNUCKLE ARM, (RH)
-
351236-40B00 ...BUSH...BUSH
-
451240-08H00 KNUCKLE ARM, (LH)KNUCKLE ARM, (LH)
-
551236-40B00 ...BUSH...BUSH
-
651260-43G00 ROD END (RH THREAD)ROD END (RH THREAD)
-
751270-43G00 ROD END (LH THREAD)ROD END (LH THREAD)
-
851283-21G00 NUT (RH THREAD)NUT (RH THREAD)
-
908319-3110A NUTNUT
-
1008319-3110A NUTNUT
-
1109140-10027 NUT, TIE ROD (LH THREAD)NUT, TIE ROD (LH THREAD)
-
1204111-2020A COTTER PINCOTTER PIN
-
1304111-2020A COTTER PINCOTTER PIN
-
1451251-08H00 SPACER, KINGPINSPACER, KINGPIN
-
1551255-08H00 DUST SEALDUST SEAL
-
1651256-43G00 BOLT, KNUCKLE ARMBOLT, KNUCKLE ARM
-
1708211-10281 WASHER, KNUCKLE ARMWASHER, KNUCKLE ARM
