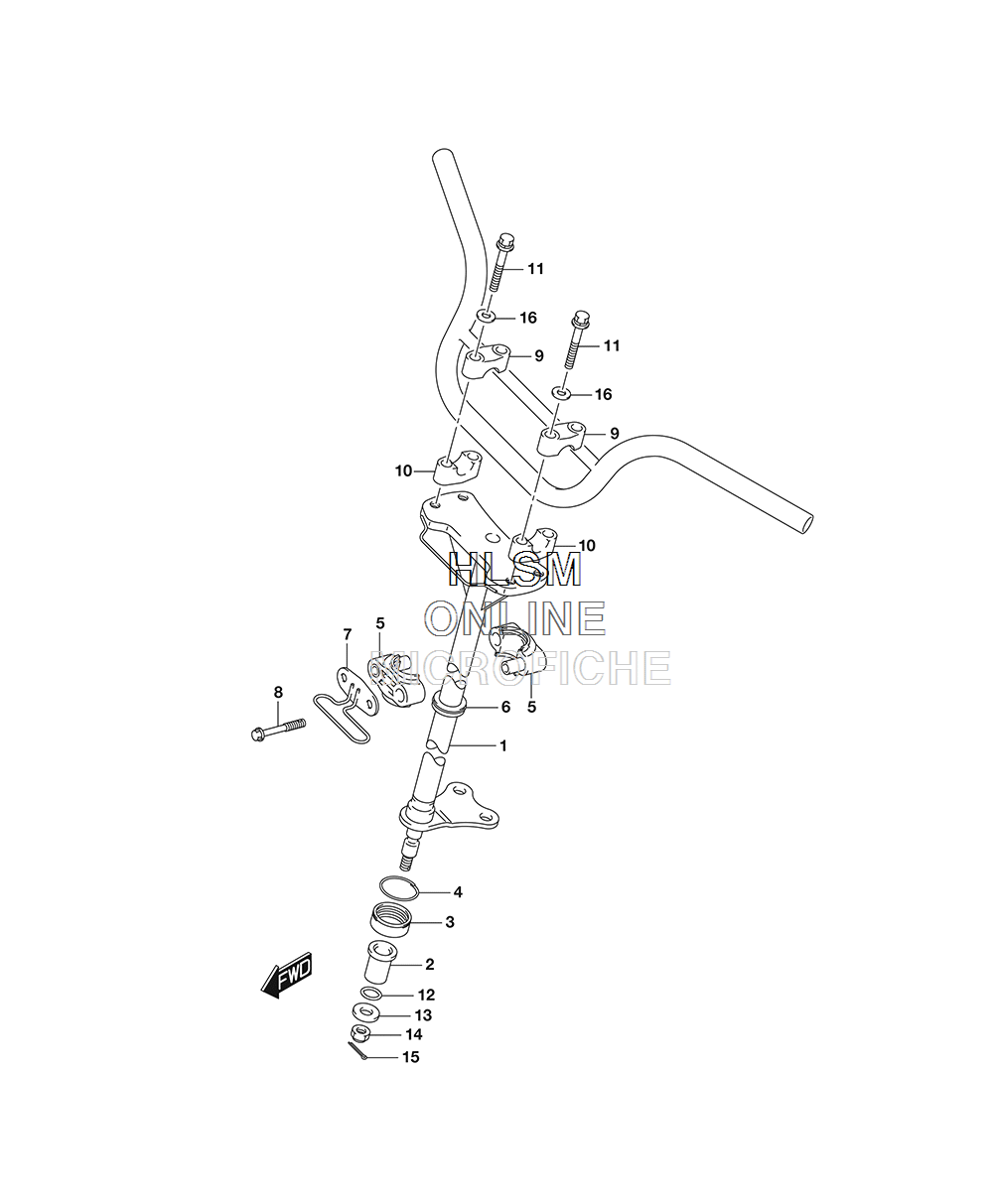

STEERING SHAFT для Suzuki LT-Z90L8 QUADSPORT Z90 - 2018 года выпуска
-
№АртикулНазвание
-
151650-08H00 SHAFT, STEERINGSHAFT, STEERING
-
251661-40BA0 BUSH, STEERING LOWERBUSH, STEERING LOWER
-
351662-43FK0 DUST SEAL, STEERING SHAFTDUST SEAL, STEERING SHAFT
-
409380-31002 CLIP, DUST SEALCLIP, DUST SEAL
-
551670-18902 HOLDER, STEERING SHAFTHOLDER, STEERING SHAFT
-
651678-18900 DUST SEAL, STEERINGDUST SEAL, STEERING
-
751680-40B00 REINFORCEMENT, HOLDERREINFORCEMENT, HOLDER
-
801550-0855A BOLTBOLT
-
956211-27200-291 HOLDER, HANDLEBAR (291 - BLACK)HOLDER, HANDLEBAR (291 - BLACK)
-
1056211-21G00-291 HOLDER, HANDLEBAR (291 - BLACK)HOLDER, HANDLEBAR (291 - BLACK)
-
1101550-0850A BOLTBOLT
-
1209280-14011 O RING (ID:13.8,D:2.50)O RING (ID:13.8,D:2.50)
-
1309160-10079 WASHER (10.6X24X3.20)WASHER (10.6X24X3.20)
-
1408319-3110A NUTNUT
-
1504111-2020A COTTER PINCOTTER PIN
