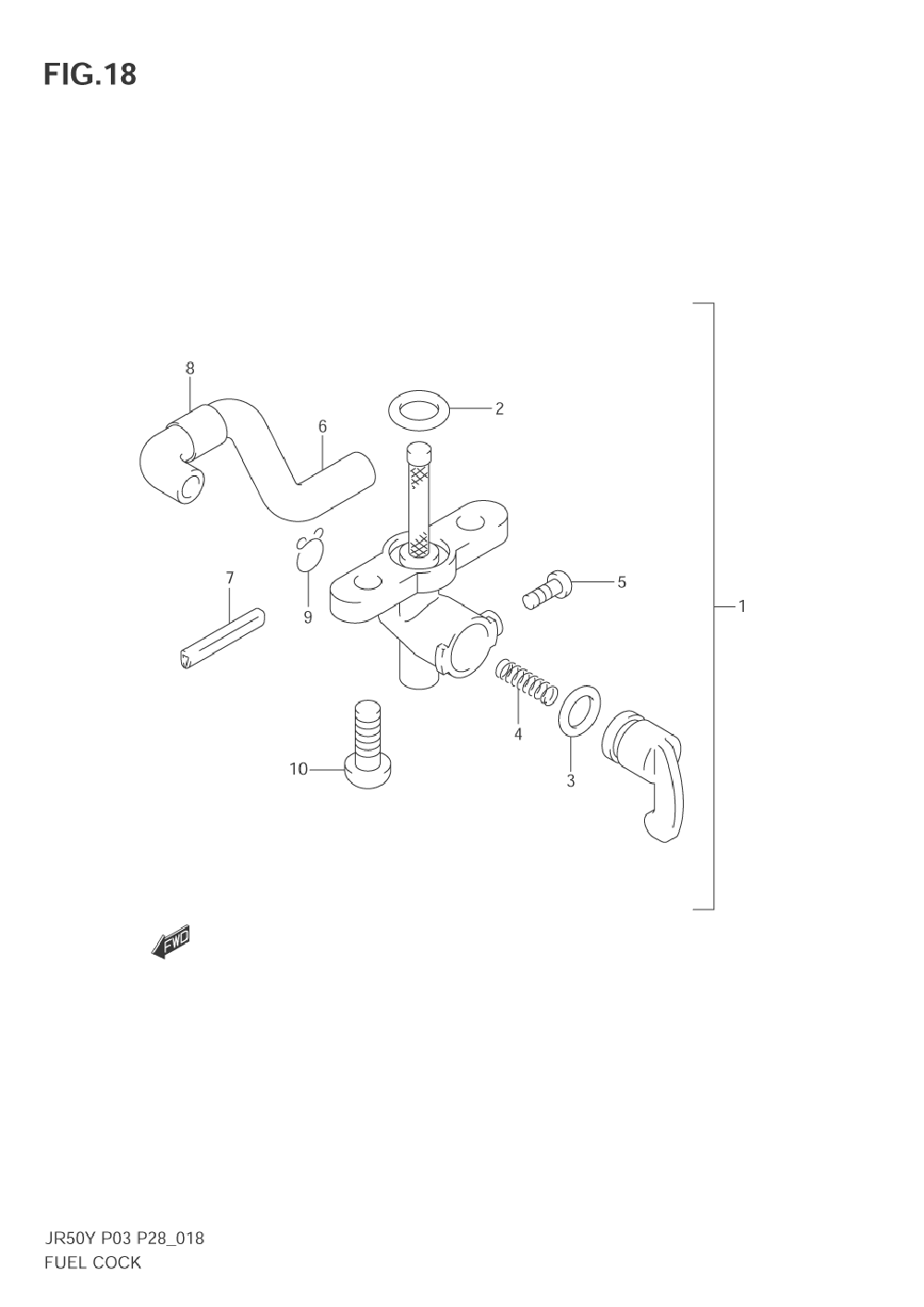

FUEL COCK для Suzuki JR50K1 - 2001 года выпуска
-
№АртикулНазвание
-
144300-04420 COCK ASSY, FUELCOCK ASSY, FUEL
-
244348-41370 ...O RING, JOINT...O RING, JOINT
-
344353-41370 ...O RING, LEVER...O RING, LEVER
-
444357-32470 ...SPRING...SPRING
-
544343-41370 ...SCREW...SCREW
-
644421-09AA0 HOSE, FUELHOSE, FUEL
-
744461-09AA0 PROTECTOR, NO.1PROTECTOR, NO.1
-
809351-14152-600 PROTECTOR, NO.2 (L:600->90)PROTECTOR, NO.2 (L:600->90)
-
909401-09403 CLIPCLIP
-
1001547-06163 BOLTBOLT
