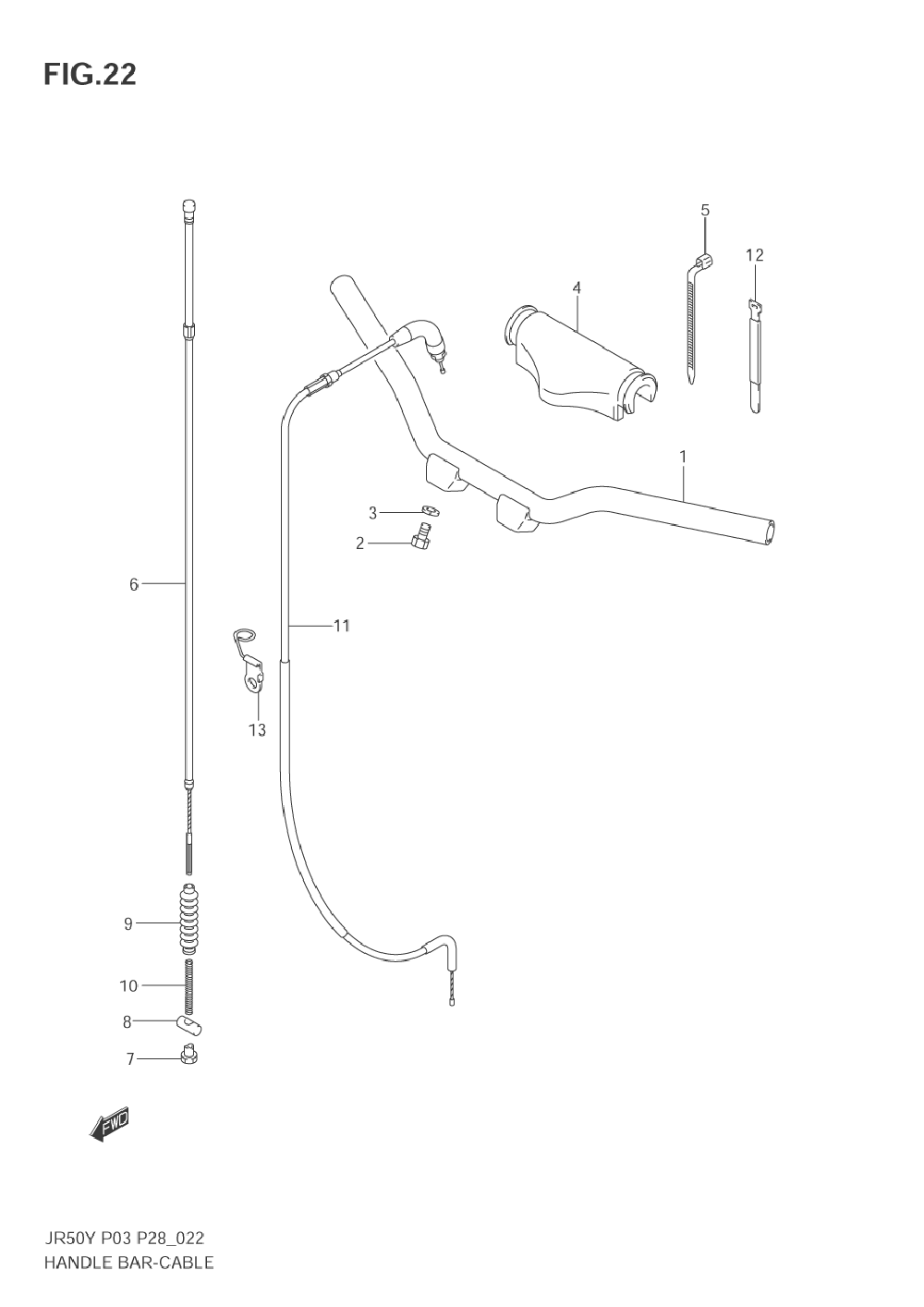

HANDLEBAR W/ CABLES для Suzuki JR50K1 - 2001 года выпуска
-
№АртикулНазвание
-
156110-04411-291 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
201500-08163 BOLTBOLT
-
308321-01083 LOCK WASHERLOCK WASHER
-
456171-09AA0 COVER, HANDLECOVER, HANDLE
-
509407-14403 CLAMPCLAMP
-
658110-04430 CABLE ASSY, BRAKECABLE ASSY, BRAKE
-
709150-05101 NUTNUT
-
809209-10001 PINPIN
-
909287-07001 BOOTBOOT
-
1009440-06003 SPRINGSPRING
-
11-158300-04430 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1209407-14301 CLAMP (L:140)CLAMP (L:140)
-
1358620-04430 GUIDE, BRAKEGUIDE, BRAKE
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - REAR PEDAL
- CARBURETOR
- CLUTCH ASSY.
- CLUTCH COVER W/ OIL PUMP
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTONS
- CYLINDER
- ELECTRICAL
- FENDER - FRONT
- FENDER - REAR
- FRAME W/ FOOTREST
- FUEL COCK
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR - LEVERS
- • HANDLEBAR W/ CABLES
- MAGNETO
- MUFFLER
- OIL TANK
- OPTIONAL EQUIPMENT
- OWNERS MANUALS W/ WARNING/SAFETY DECALS
- SEAT ASSY.
- SIDE COVER
- STARTER - KICK
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- TRANSMISSION
- WHEEL - FRONT ASSY.
- WHEEL - REAR ASSY.
