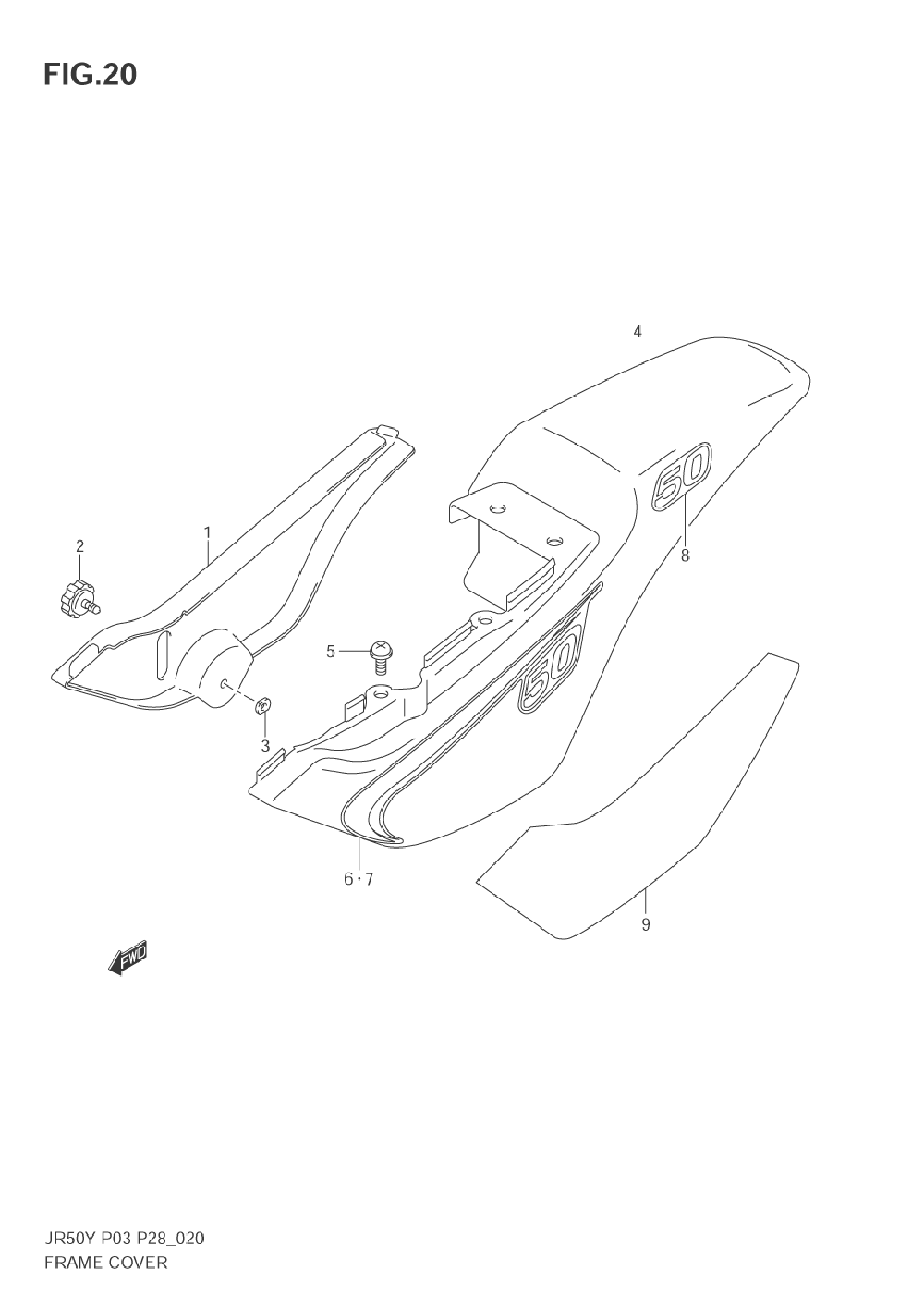

SIDE COVER для Suzuki JR50K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-247111-09AA0-YR1 COVER, FRAME (RIGHT) (YELLOW)COVER, FRAME (RIGHT) (YELLOW)
-
247130-33101 KNOBKNOB
-
309152-06002 STOPPER, KNOBSTOPPER, KNOB
-
4-247211-09AA0-YR1 COVER, FRAME (LEFT) (YELLOW) (USA)COVER, FRAME (LEFT) (YELLOW) (USA)
-
4-547211-09AB0-YR1 COVER, FRAME (LEFT) (YELLOW) (CANADA)COVER, FRAME (LEFT) (YELLOW) (CANADA)
-
509136-06015 SCREWSCREW
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - REAR PEDAL
- CARBURETOR
- CLUTCH ASSY.
- CLUTCH COVER W/ OIL PUMP
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTONS
- CYLINDER
- ELECTRICAL
- FENDER - FRONT
- FENDER - REAR
- FRAME W/ FOOTREST
- FUEL COCK
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR - LEVERS
- HANDLEBAR W/ CABLES
- MAGNETO
- MUFFLER
- OIL TANK
- OPTIONAL EQUIPMENT
- OWNERS MANUALS W/ WARNING/SAFETY DECALS
- SEAT ASSY.
- • SIDE COVER
- STARTER - KICK
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- TRANSMISSION
- WHEEL - FRONT ASSY.
- WHEEL - REAR ASSY.
