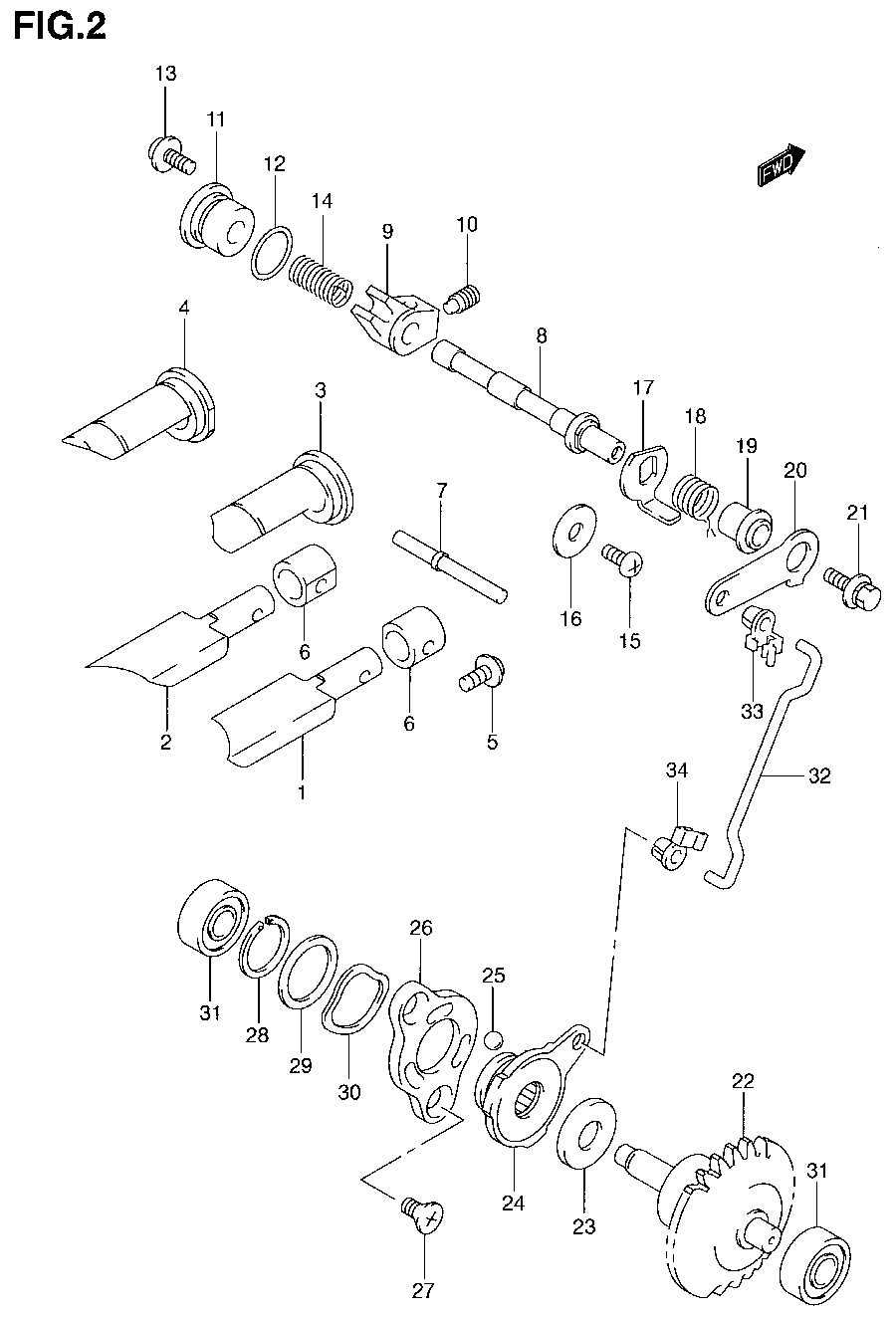

EXHAUST VALVE ASSY. для Suzuki RM80K1 - 2001 года выпуска
-
№АртикулНазвание
-
111254-02B40 VALVE, EXHAUST (RIGHT)VALVE, EXHAUST (RIGHT)
-
211255-02B40 VALVE, EXHAUST (LEFT)VALVE, EXHAUST (LEFT)
-
311261-02B40 GUIDE, EXHAUST VALVE (RIGHT)GUIDE, EXHAUST VALVE (RIGHT)
-
411262-02B40 GUIDE, EXHAUST VALVE (LEFT)GUIDE, EXHAUST VALVE (LEFT)
-
502112-15123 SCREWSCREW
-
611263-01B30 SPACER, EXHAUST VALVESPACER, EXHAUST VALVE
-
711253-01B32 PINPIN
-
811259-02B40 SHAFT, EXHAUST VALVESHAFT, EXHAUST VALVE
-
911264-00B24 ARM, EXHAUST VALVE SHAFTARM, EXHAUST VALVE SHAFT
-
1009134-06013 SCREW (6X10)SCREW (6X10)
-
1111258-02B40 CAP, EXHAUST VALVECAP, EXHAUST VALVE
-
1209280-15006 O RING (D:1.9,ID:14.5)O RING (D:1.9,ID:14.5)
-
1302162-05123 SCREWSCREW
-
1409448-10004 SPRINGSPRING
-
1502112-06083 SCREWSCREW
-
1608212-06201 WASHERWASHER
-
1711267-00B21 LEVER, EXHAUST VALVE NO.2LEVER, EXHAUST VALVE NO.2
-
1809444-15008 SPRINGSPRING
-
19-211268-01B01 SPACERSPACER
-
2011266-00B21 LEVER, EXHAUST VALVE NO.1LEVER, EXHAUST VALVE NO.1
-
2109118-05005 BOLT (5X12)BOLT (5X12)
-
2212670-02B41 GOVERNOR ASSY, EXHAUST VALVEGOVERNOR ASSY, EXHAUST VALVE
-
2309263-10002 BEARING (10X22X2.8)BEARING (10X22X2.8)
-
2412680-01820 ACTUATOR, EXHAUST VALVEACTUATOR, EXHAUST VALVE
-
2506111-06003 BALLBALL
-
2612682-01B02 STATOR, ACTUATORSTATOR, ACTUATOR
-
2709120-05003 SCREW (5X10)SCREW (5X10)
-
2809380-19003 CIRCLIPCIRCLIP
-
2909181-19004 SHIM (19.1X25X0.3)SHIM (19.1X25X0.3)
-
3009164-19001 LOCK WASHERLOCK WASHER
-
3109262-08005 BEARINGBEARING
-
3212685-02B40 ROD, EXHAUST VALVEROD, EXHAUST VALVE
-
3312686-01B00 BUSH, EXHAUST VALVE ROD NO.1BUSH, EXHAUST VALVE ROD NO.1
-
3412687-01B00 BUSH, EXHAUST VALVE ROD NO.2BUSH, EXHAUST VALVE ROD NO.2
