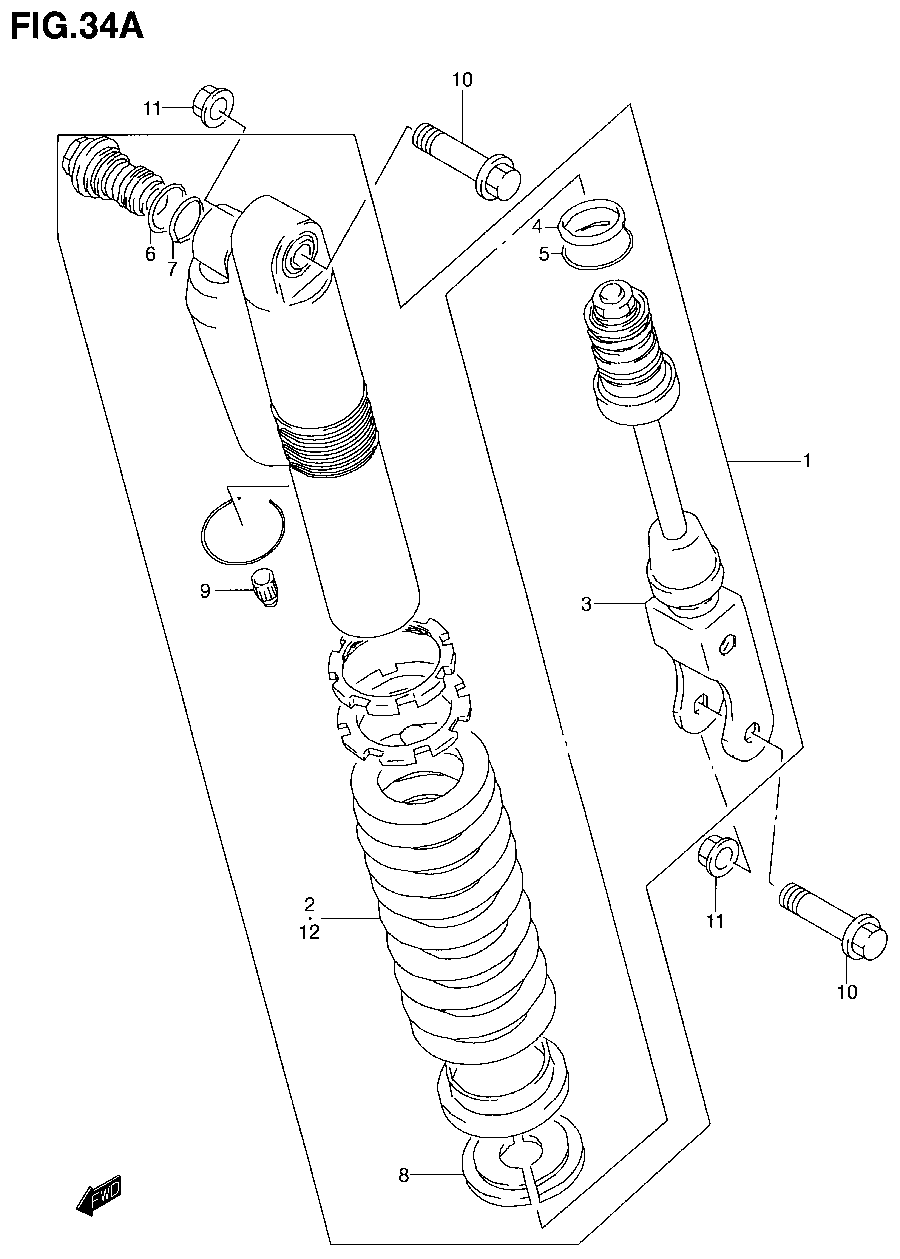

SUSPENSION - REAR SHOCK ABSORBER для Suzuki RM80K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-162100-03B01-019 ABSORBER ASSY, SHOCK (REAR/BLACK) (USA)ABSORBER ASSY, SHOCK (REAR/BLACK) (USA)
-
1-262100-03B20-019 ABSORBER ASSY, SHOCK (REAR/BLACK) (CANADA)ABSORBER ASSY, SHOCK (REAR/BLACK) (CANADA)
-
2-162211-02B70-37W ...SPRING (K=4.89)...SPRING (K=4.89)
-
2-262211-02B70-163 ...SPRING (K=4.89)...SPRING (K=4.89)
-
362120-03B00 ...ROD, PISTON...ROD, PISTON
-
462153-03B00 ......O RING......O RING
-
562279-03B00 ...RING, ROD STOPPER...RING, ROD STOPPER
-
662131-27C40 ...O RING...O RING
-
751175-28E30 ...O RING (INNER)...O RING (INNER)
-
862225-17C00 ...SEAT, SPRING STOPPER...SEAT, SPRING STOPPER
-
951294-20400 ...CAP...CAP
-
1062648-14500 BOLT (10X48)BOLT (10X48)
-
1109159-10058 NUTNUT
-
12-162211-03B00 SPRING (K=4.70)(SOFT) (OPT)SPRING (K=4.70)(SOFT) (OPT)
-
12-262211-03B10 SPRING (K=5.10)(HARD) (OPT)SPRING (K=5.10)(HARD) (OPT)
