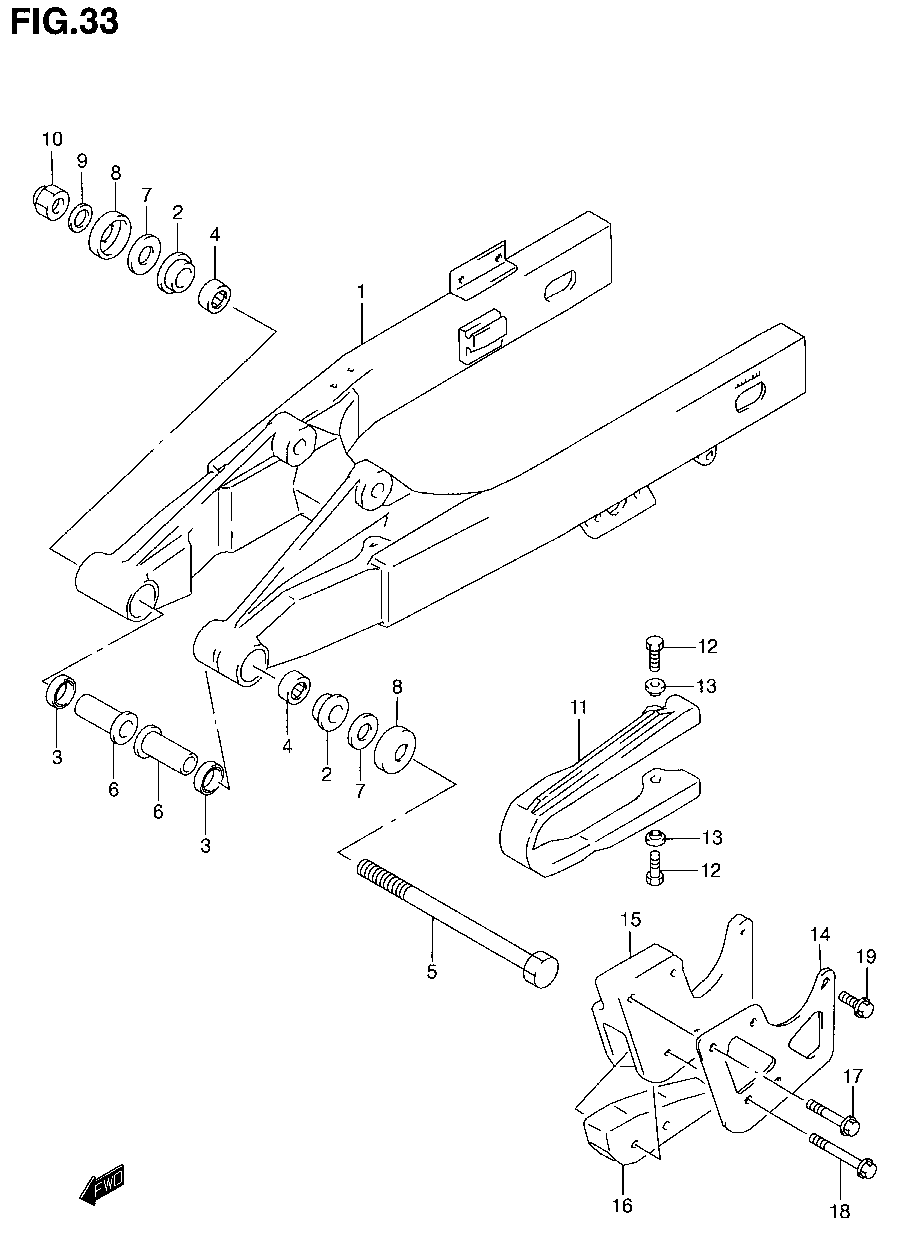

SUSPENSION - REAR ARM для Suzuki RM80K1 - 2001 года выпуска
-
№АртикулНазвание
-
161000-03B21 SWINGING ARM ASSY (REAR)SWINGING ARM ASSY (REAR)
-
261261-02B00 ...BUSHING...BUSHING
-
309285-17001 ...OIL SEAL (INNER) (17X24X3)...OIL SEAL (INNER) (17X24X3)
-
409263-17038 ...BEARING (17X24X30)...BEARING (17X24X30)
-
561211-02B40 SHAFT, PIVOTSHAFT, PIVOT
-
661251-02B40 SPACER, PIVOTSPACER, PIVOT
-
708211-12282 THRUST WASHERTHRUST WASHER
-
861262-03B00 COVER, PIVOTCOVER, PIVOT
-
908322-01123 WASHERWASHER
-
1008319-21128 NUTNUT
-
1161273-02B20 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1201547-06163 BOLTBOLT
-
1309169-06057 WASHERWASHER
-
1461342-02B40 PLATE, GUIDE (OUTER)PLATE, GUIDE (OUTER)
-
1561343-02B40 GUIDE, CHAINGUIDE, CHAIN
-
1661348-02B20 DEFENSE, CHAIN GUIDEDEFENSE, CHAIN GUIDE
-
1701547-06303 BOLT (UPPER) (6X30)BOLT (UPPER) (6X30)
-
1801547-06403 BOLT (LOWER) (6X40)BOLT (LOWER) (6X40)
-
1901547-06163 BOLT (REAR) (6X16)BOLT (REAR) (6X16)
