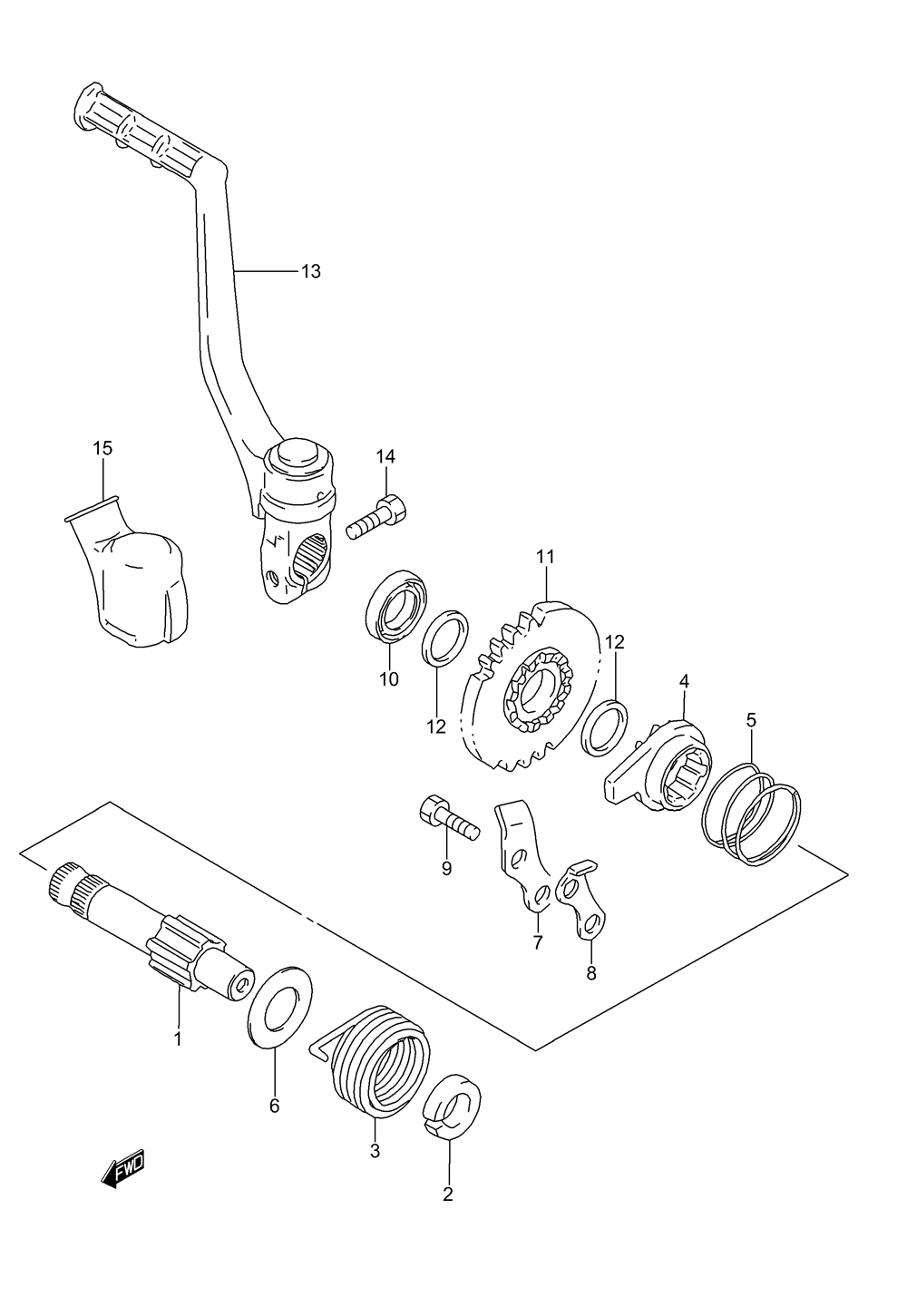

KICK STARTER для Suzuki RM85K3 - 2003 года выпуска
-
№АртикулНазвание
-
126211-02B03 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-02B00 GUIDE, SPRINGGUIDE, SPRING
-
309448-35007 SPRINGSPRING
-
426231-02B01 STARTER, KICKSTARTER, KICK
-
509440-31002 SPRINGSPRING
-
608211-12301 PLATEPLATE
-
726232-40200 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
826233-40201 STOPPER, KICK STARTERSTOPPER, KICK STARTER
-
901500-06123 BOLTBOLT
-
1009285-14001 OIL SEAL (14X24X6)OIL SEAL (14X24X6)
-
1126241-02B41 GEAR, KICK DRIVE (NT:26)GEAR, KICK DRIVE (NT:26)
-
1209181-14139 WASHER (14X20X1.0)WASHER (14X20X1.0)
-
1326300-03B00 LEVER, KICK STARTERLEVER, KICK STARTER
-
1401500-06207 BOLTBOLT
-
1526341-20401 COVERCOVER
