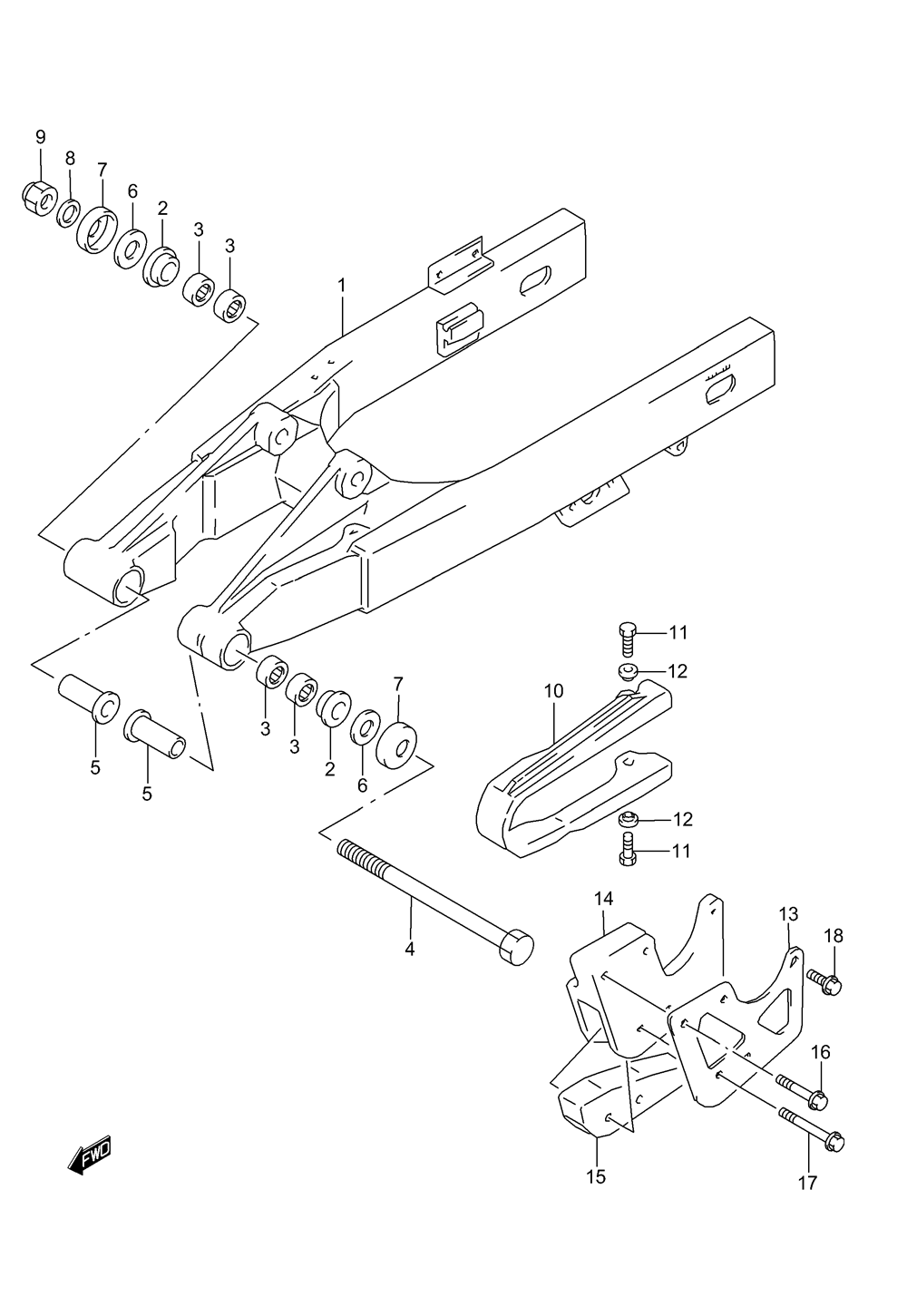

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki RM85K3 - 2003 года выпуска
-
№АртикулНазвание
-
161000-03B30 SWINGING ARM ASSY, REAR (RM85)SWINGING ARM ASSY, REAR (RM85)
-
161000-03B60 SWINGING ARM ASSY, REAR (RM85L)SWINGING ARM ASSY, REAR (RM85L)
-
261261-02B00 BUSHINGBUSHING
-
309263-17039 BEARING (17X24X20)BEARING (17X24X20)
-
461211-02B40 SHAFT, PIVOTSHAFT, PIVOT
-
561251-02B40 SPACER, PIVOTSPACER, PIVOT
-
608211-12282 THRUST WASHERTHRUST WASHER
-
761262-03B00 COVER, PIVOTCOVER, PIVOT
-
808322-01123 WASHERWASHER
-
908319-21128 NUTNUT
-
1061273-02B20 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1109103-06234 BOLTBOLT
-
1209169-06057 WASHERWASHER
-
1361342-02B40 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
1461343-02B40 GUIDE, CHAINGUIDE, CHAIN
-
1561348-02B20 DEFENSE, CHAIN GUIDEDEFENSE, CHAIN GUIDE
-
1609103-06251 BOLT, UPPER (6X30)BOLT, UPPER (6X30)
-
1709103-06241 BOLT, LOWER (6X40)BOLT, LOWER (6X40)
-
1809103-06234 BOLT, REAR (6X16)BOLT, REAR (6X16)
