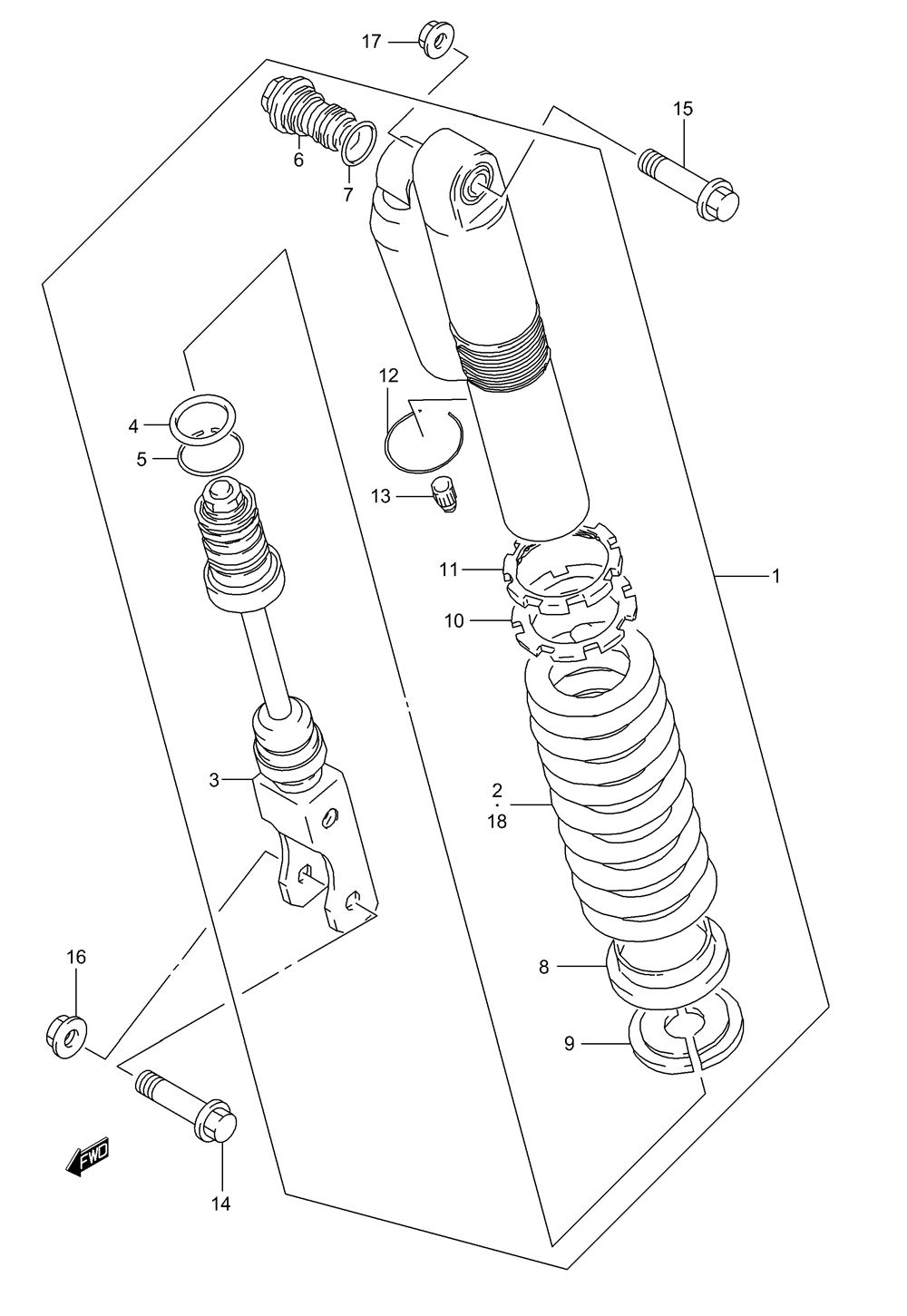

SUSPENSION - SHOCKS REAR для Suzuki RM85K3 - 2003 года выпуска
-
№АртикулНазвание
-
162100-03B50-37W ABSORBER ASSY, REAR SHOCK (RM85) (US ONLY)ABSORBER ASSY, REAR SHOCK (RM85) (US ONLY)
-
162100-03B40-37W ABSORBER ASSY, REAR SHOCK (RM85) (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (RM85) (CANADA ONLY)
-
162100-03B30-37W ABSORBER ASSY, REAR SHOCK (RM85L)ABSORBER ASSY, REAR SHOCK (RM85L)
-
262211-03B30 SPRING, REAR (K=4.9)SPRING, REAR (K=4.9)
-
362120-03B30 ROD, PISTONROD, PISTON
-
462153-03B30 O RINGO RING
-
562279-03B30 RING, ROD STOPPERRING, ROD STOPPER
-
662130-03B30 BOLT, PLUGBOLT, PLUG
-
751177-36E20 O RINGO RING
-
862249-17C00 SEAT, SPRINGSEAT, SPRING
-
962225-17C00 SEAT STOPPER, SPRINGSEAT STOPPER, SPRING
-
1062191-20400 ADJUSTER, SPRINGADJUSTER, SPRING
-
1162194-20400 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
1262278-03B30 RING, STOPPERRING, STOPPER
-
1351294-20400 CAPCAP
-
1462648-14500 BOLTBOLT
-
1509159-10058 NUTNUT
-
1662211-SHOWA-001 SPRING, REAR (K=4.6) (SOFT)SPRING, REAR (K=4.6) (SOFT)
-
1662211-03B00 SPRING, REAR (K=4.7) (SOFT)SPRING, REAR (K=4.7) (SOFT)
-
1662211-03B10 SPRING, REAR (K=5.1) (HARD)SPRING, REAR (K=5.1) (HARD)
-
1662211-SHOWA-002 SPRING, REAR (K=5.2) (HARD)SPRING, REAR (K=5.2) (HARD)
