GASKET SET для Suzuki RM-125K4 - 2004 года выпуска
-
№АртикулНазвание
-

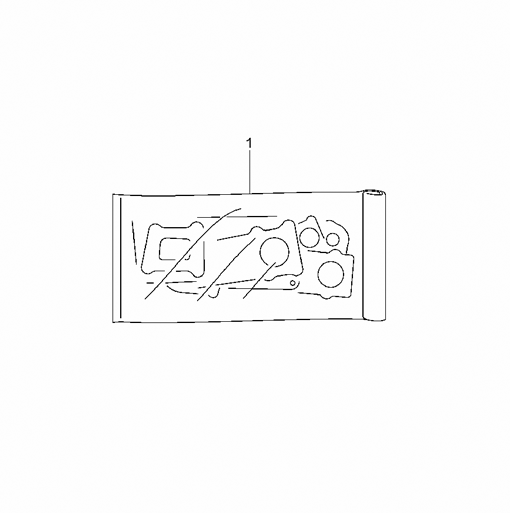

111401-36830 GASKET SETGASKET SET
-
211147-27C11 O RING, CYLINDER HEAD NO.1O RING, CYLINDER HEAD NO.1
-
311148-27C11 O RING, CYLINDER HEAD NO.2O RING, CYLINDER HEAD NO.2
-
411233-27C33 GASKET, CYLINDER COVER NO.1GASKET, CYLINDER COVER NO.1
-
511238-36E01 GASKET, CYLINDER COVER NO.2GASKET, CYLINDER COVER NO.2
-
611241-36F00 GASKET, CYLINDERGASKET, CYLINDER
-
711481-36F20 GASKET, CRANKCASEGASKET, CRANKCASE
-
811482-36F00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
911483-36E11 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1011484-36E10 O RING, CLUTCH COVER OUTERO RING, CLUTCH COVER OUTER
-
1114171-36E00 O RING, EXHAUST PIPEO RING, EXHAUST PIPE
-
1214172-36E00 WASHER, EXHAUST PIPEWASHER, EXHAUST PIPE
-
1314771-43D11 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
1417431-36F00 GASKET, WATER PUMP CASEGASKET, WATER PUMP CASE
-
1509168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
