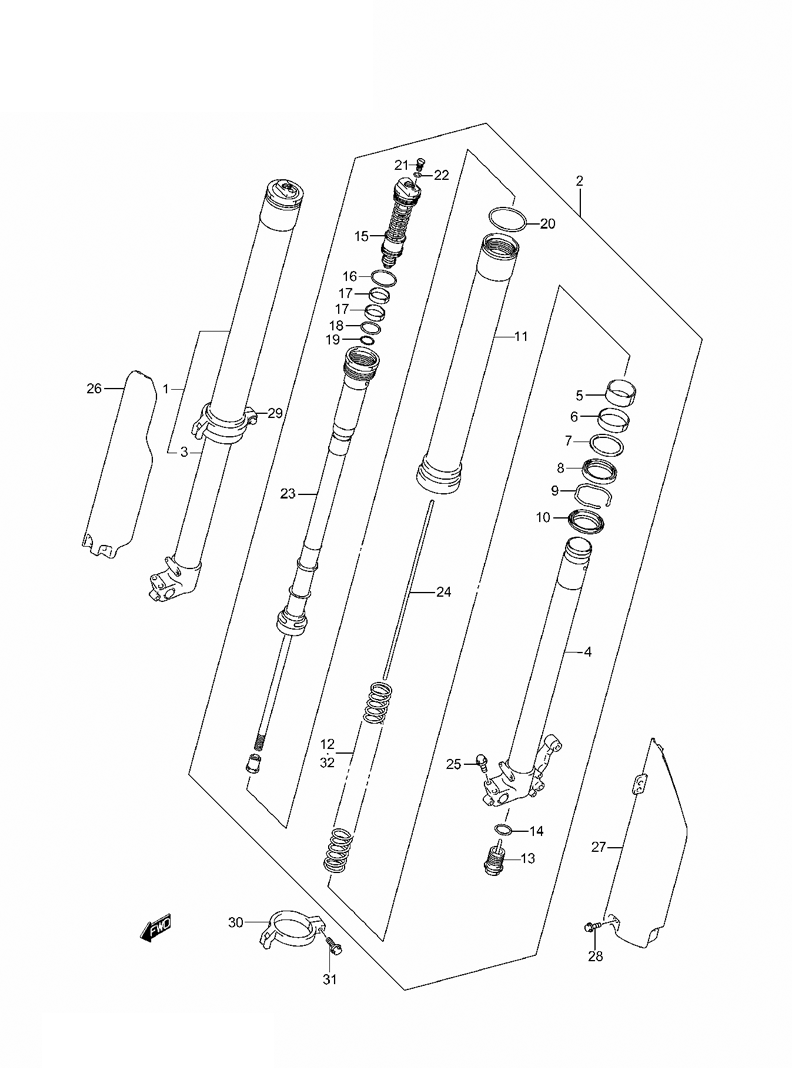

SUSPENSION - FRONT FORK для Suzuki RM-125K4 - 2004 года выпуска
-
№АртикулНазвание
-
151103-36F80 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251104-36F80 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
351110-37F70 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
451120-37F70 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
551121-36F00 BUSH, GUIDEBUSH, GUIDE
-
651167-36F00 BUSH, GUIDEBUSH, GUIDE
-
751158-36F00 SPACER, SEALSPACER, SEAL
-
851153-36F00 SEAL, OILSEAL, OIL
-
951156-36F00 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
1051173-36F00 SEAL, DUSTSEAL, DUST
-
1151130-37F70 TUBE, OUTERTUBE, OUTER
-
1251171-37FD0 SPRING, FRONT (K=0.42)SPRING, FRONT (K=0.42)
-
1351170-37F70 BOLT, CENTERBOLT, CENTER
-
1451177-36E20 O RINGO RING
-
1551351-37F70 BOLT, FORKBOLT, FORK
-
1651117-29EA0 O RINGO RING
-
1751123-28E30 BUSH, FORK BOLT SLIDEBUSH, FORK BOLT SLIDE
-
1851174-36E40 O RINGO RING
-
1951175-36F00 O RINGO RING
-
2051117-36E60 O RINGO RING
-
2151357-36F20 BOLT, PLUGBOLT, PLUG
-
2251358-28E30 O RINGO RING
-
2351190-37F70 ROD, DAMPERROD, DAMPER
-
2451191-36F40 ROD, PUSHROD, PUSH
-
2551328-36F20 BOLTBOLT
-
2651501-37F60 PROTECTOR, RIGHT HANDPROTECTOR, RIGHT HAND
-
2751511-37F60 PROTECTOR, LEFT HANDPROTECTOR, LEFT HAND
-
2809103-06256 BOLTBOLT
-
2951220-36E61 GUIDE, PROTECTOR RIGHT HANDGUIDE, PROTECTOR RIGHT HAND
-
3051210-36E61 GUIDE, PROTECTOR LEFT HANDGUIDE, PROTECTOR LEFT HAND
-
3101547-06207 BOLTBOLT
-
3251171-37FC0 SPRING, FRONT (HARD K=0.44)SPRING, FRONT (HARD K=0.44)
-
3251171-36F60 SPRING, FRONT (SOFT K=0.40)SPRING, FRONT (SOFT K=0.40)
