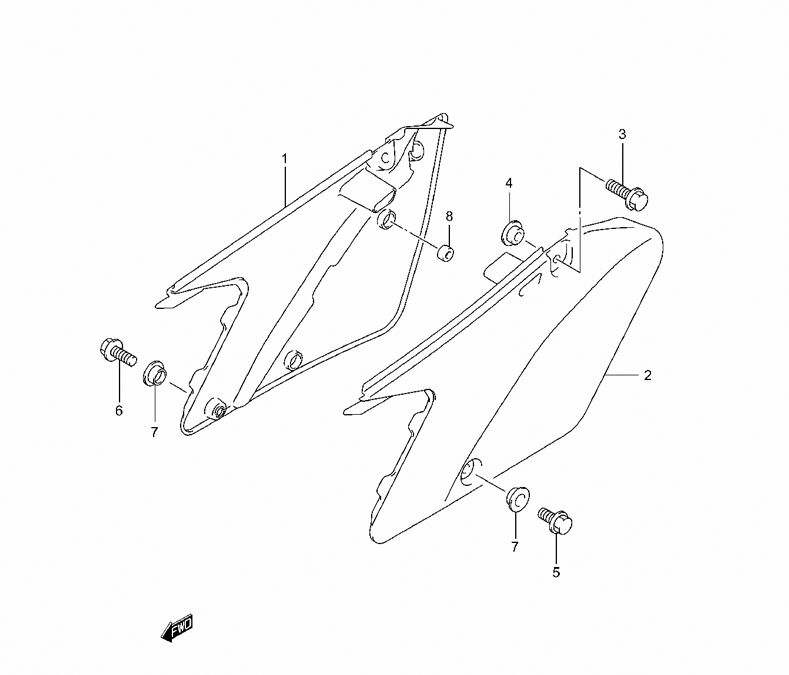

SIDE COVER для Suzuki RM-125K4 - 2004 года выпуска
-
№АртикулНазвание
-
147111-36F10-30H COVER, FRAME RIGHT HAND (WHITE, 30H)COVER, FRAME RIGHT HAND (WHITE, 30H)
-
247211-36F10-30H COVER, FRAME LEFT HAND (WHITE, 30H)COVER, FRAME LEFT HAND (WHITE, 30H)
-
309116-06188 BOLT, SEATBOLT, SEAT
-
453112-37F00 WASHER, SEATWASHER, SEAT
-
509103-06233 BOLT, FRONT LEFT HANDBOLT, FRONT LEFT HAND
-
609103-06234 BOLT, FRONT RIGHT HANDBOLT, FRONT RIGHT HAND
-
709169-06054 WASHER, FRONTWASHER, FRONT
-
847161-37F00 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
