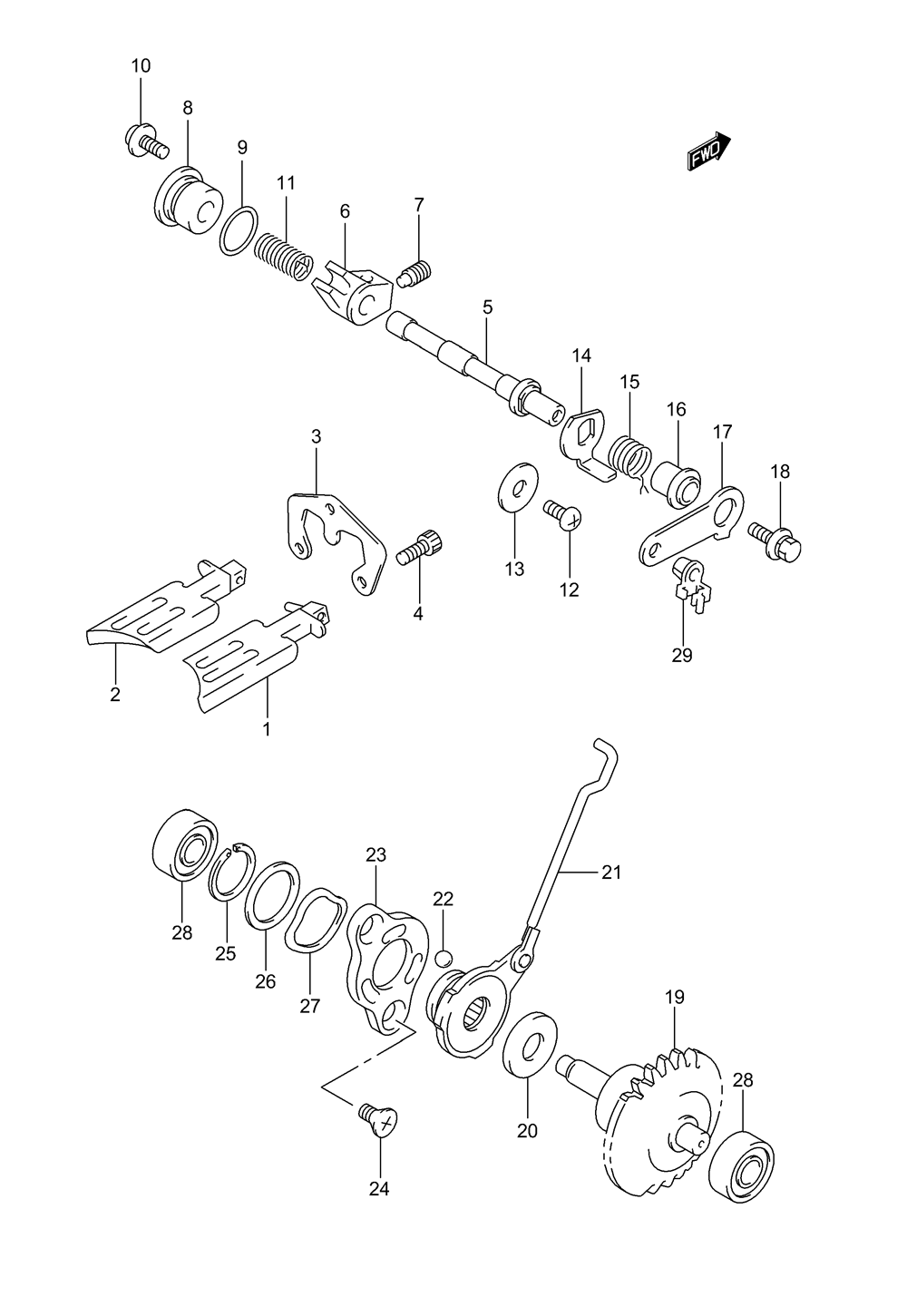

EXHAUST VALVE для Suzuki RM-85LK4 - 2004 года выпуска
-
№АртикулНазвание
-
111250-03B00 VALVE, EXHAUST RIGHT HANDVALVE, EXHAUST RIGHT HAND
-
211255-03B00 VALVE, EXHAUST LEFT HANDVALVE, EXHAUST LEFT HAND
-
311261-03B00 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
407130-05123 BOLT, EXHAUST VALVE PLATEBOLT, EXHAUST VALVE PLATE
-
511259-02B40 SHAFT, EXHAUST VALVESHAFT, EXHAUST VALVE
-
611264-00B24 ARM, EXHAUST VALVE SHAFTARM, EXHAUST VALVE SHAFT
-
709134-06013 SCREW (6X10)SCREW (6X10)
-
811258-02B40 CAP, EXHAUST VALVECAP, EXHAUST VALVE
-
909280-15006 O RING (D:1.9,ID:14.5)O RING (D:1.9,ID:14.5)
-
1002162-05103 SCREWSCREW
-
1009103-05022 BOLTBOLT
-
1109448-10004 SPRINGSPRING
-
1202112-06083 SCREWSCREW
-
1308212-06201 WASHERWASHER
-
1411267-00B21 LEVER, EXHAUST VALVE NO.2LEVER, EXHAUST VALVE NO.2
-
1509444-15008 SPRINGSPRING
-
1611268-01B01 SPACERSPACER
-
1711266-00B21 LEVER, EXHAUST VALVE NO.1LEVER, EXHAUST VALVE NO.1
-
1809118-05005 BOLT (5X12)BOLT (5X12)
-
1912670-02B41 GOVERNOR ASSY, EXHAUST VALVEGOVERNOR ASSY, EXHAUST VALVE
-
2009263-10002 BEARING (10X22X2.8)BEARING (10X22X2.8)
-
2112680-03811 ACTUATOR, EXHAUST VALVEACTUATOR, EXHAUST VALVE
-
2206111-06003 BALLBALL
-
2312682-01B02 STATOR, ACTUATORSTATOR, ACTUATOR
-
2409120-05003 SCREW (5X10)SCREW (5X10)
-
2509380-19003 CIRCLIPCIRCLIP
-
2609181-19004 SHIM (19.1X25X0.3)SHIM (19.1X25X0.3)
-
2709164-19001 LOCK WASHERLOCK WASHER
-
2809262-08005 BEARINGBEARING
-
2912686-01B00 BUSH, EXHAUST VALVE RODBUSH, EXHAUST VALVE ROD
