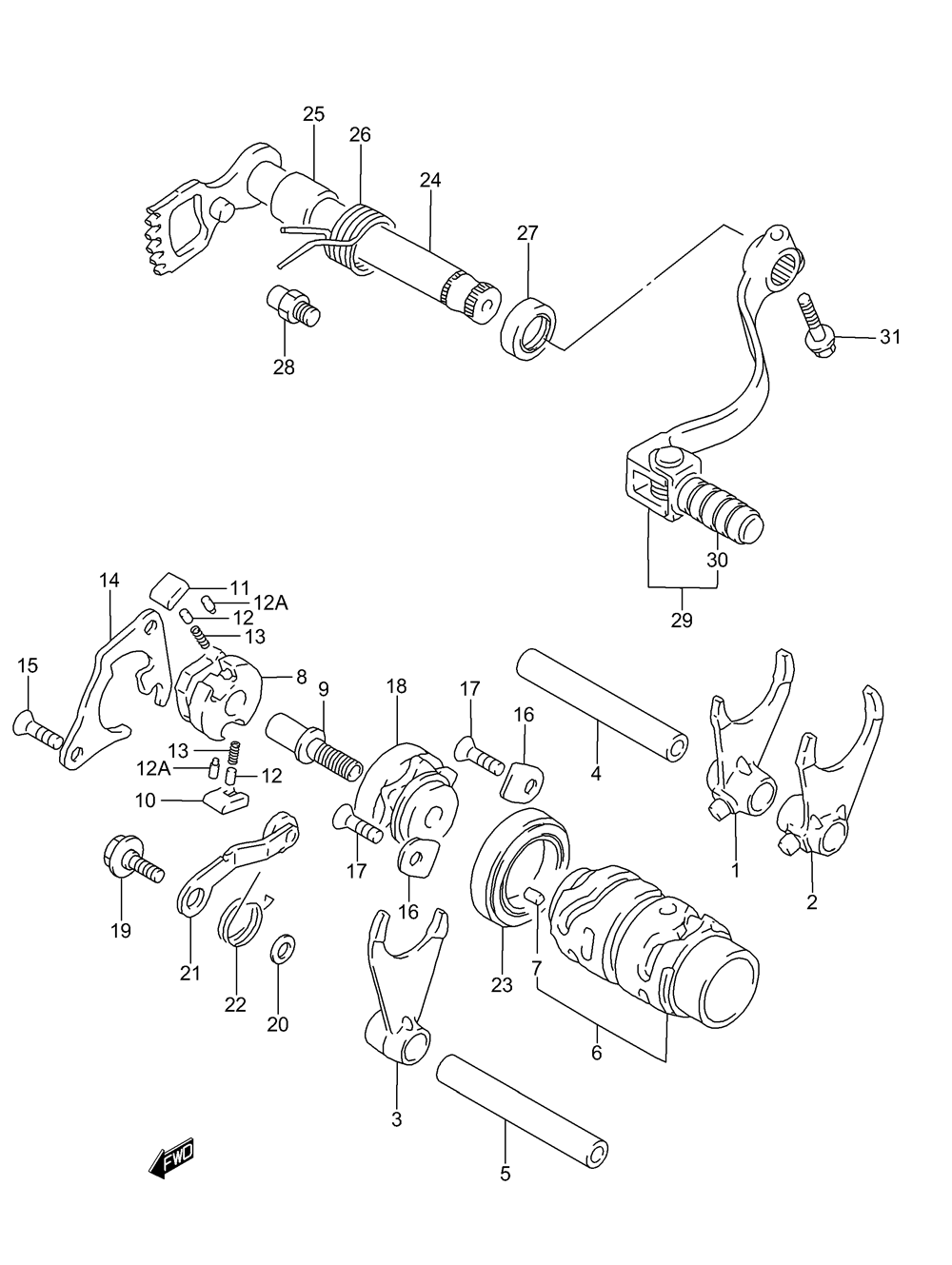

GEAR SHIFTING для Suzuki RM-85LK4 - 2004 года выпуска
-
№АртикулНазвание
-
125211-02B41 FORK, NO.1FORK, NO.1
-
225221-02B41 FORK, NO.2FORK, NO.2
-
325231-02B40 FORK, NO.3FORK, NO.3
-
425411-02B41 SHAFT, NO.1 (L:90)SHAFT, NO.1 (L:90)
-
525421-27C01 SHAFT, NO.2 (L:60)SHAFT, NO.2 (L:60)
-
625310-03B00 CAMCAM
-
704221-04089 PIN, SHIFT CAM STOPPER PLATEPIN, SHIFT CAM STOPPER PLATE
-
825322-31310 GEAR, DRIVENGEAR, DRIVEN
-
925313-27C02 PIN, SHIFT CAM DRIVEN GEARPIN, SHIFT CAM DRIVEN GEAR
-
1025323-34201 PAWL, NO.1PAWL, NO.1
-
1125324-34201 PAWL, NO.2PAWL, NO.2
-
12A09209-05023 PIN, SHIFT PAWLPIN, SHIFT PAWL
-
1309440-04003 SPRINGSPRING
-
1425331-27C00 LIFTER, PAWLLIFTER, PAWL
-
1502122-06123 SCREWSCREW
-
1624741-20A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
1702122-06123 SCREWSCREW
-
1825381-28C20 PLATE, STOPPERPLATE, STOPPER
-
1909111-06041 BOLT, SHIFT CAM STOPPERBOLT, SHIFT CAM STOPPER
-
2008211-06121 WASHERWASHER
-
2125350-27C30 STOPPER, CAMSTOPPER, CAM
-
2209448-18020 SPRINGSPRING
-
2308140-69050 BEARING, RIGHT HANDBEARING, RIGHT HAND
-
2425510-28C30 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
2509180-14016 SPACER (14X20X17.5)SPACER (14X20X17.5)
-
2609444-26013 SPRINGSPRING
-
2709283-14006 OIL SEAL (14X22X6)OIL SEAL (14X22X6)
-
2825671-01011 STOPPER, ARMSTOPPER, ARM
-
2925600-03B00 LEVER, GEAR SHIFTINGLEVER, GEAR SHIFTING
-
3025652-27C00 RUBBER, GEAR SHIFT PEDALRUBBER, GEAR SHIFT PEDAL
-
3109103-06235 BOLT (6X20)BOLT (6X20)
