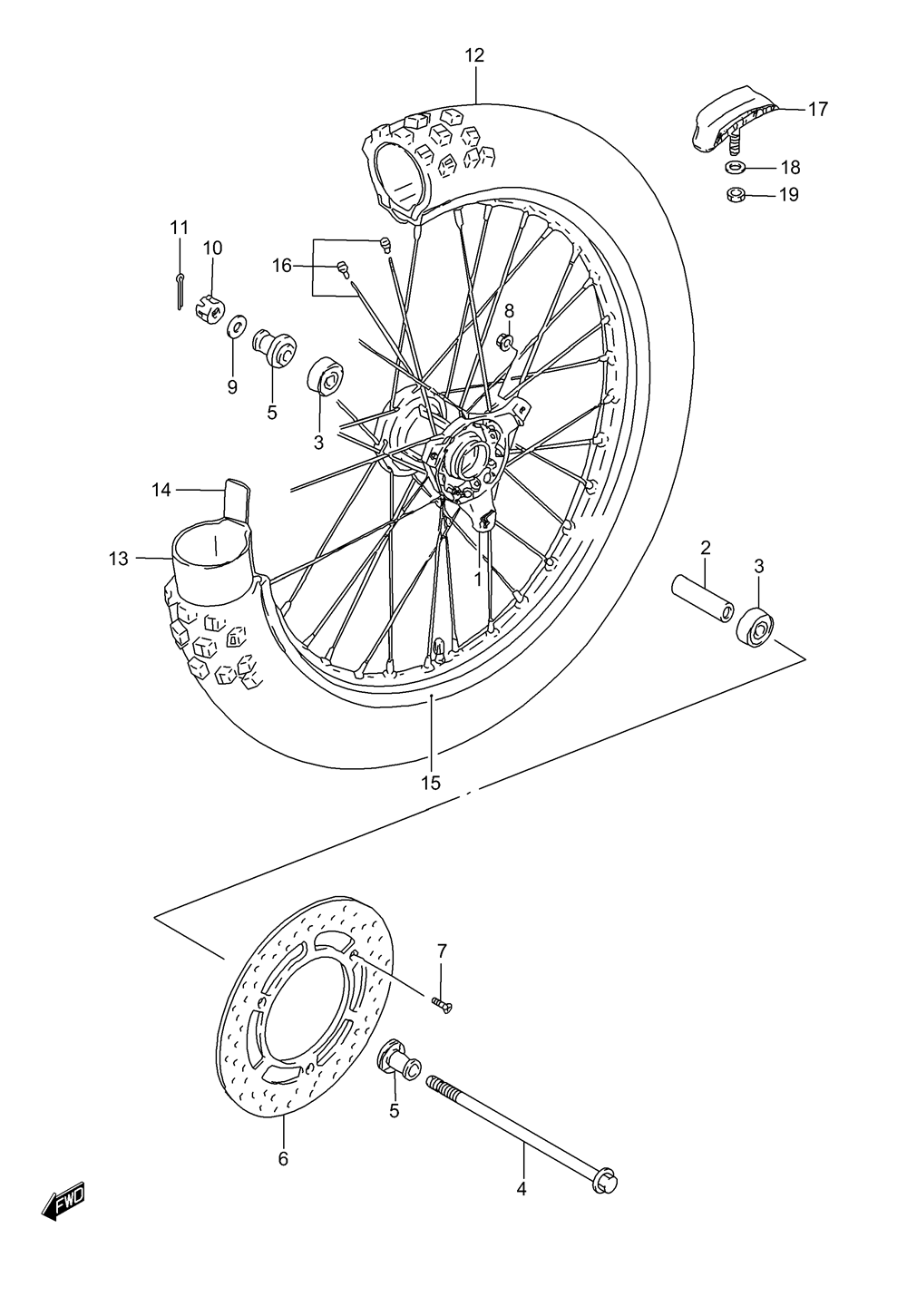

FRONT WHEEL (MODEL RM85L) для Suzuki RM-85LK4 - 2004 года выпуска
-
№АртикулНазвание
-
154111-02B42 HUB, FRONT WHEELHUB, FRONT WHEEL
-
254731-02B40 SPACER, FRONT HUB (12.7X17.3X50)SPACER, FRONT HUB (12.7X17.3X50)
-
308133-62017 BEARINGBEARING
-
454711-03B00 AXLE, FRONTAXLE, FRONT
-
554740-02B40 SPACER, AXLESPACER, AXLE
-
659221-02B20 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
709126-06009 SCREW (6X22)SCREW (6X22)
-
808319-31067 NUTNUT
-
908211-12204 WASHERWASHER
-
1008314-40123 NUTNUT
-
1104111-20208 COTTER PINCOTTER PIN
-
1255110-03B50 TIRE, FRONT (70/100-19 42M D737F) (DUNLOP)TIRE, FRONT (70/100-19 42M D737F) (DUNLOP)
-
1355200-03B40 TUBE ASSY, INNERTUBE ASSY, INNER
-
1455261-03B30 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
1555311-03B60 RIM, FRONT WHEEL (1.40X19) (RM85L)RIM, FRONT WHEEL (1.40X19) (RM85L)
-
1655320-03B60 SPOKE SET, FRONT WHEEL (RM85L)SPOKE SET, FRONT WHEEL (RM85L)
-
1765270-28600 STOPPER, BEADSTOPPER, BEAD
-
1808322-01083 WASHERWASHER
-
1908310-00083 NUTNUT
