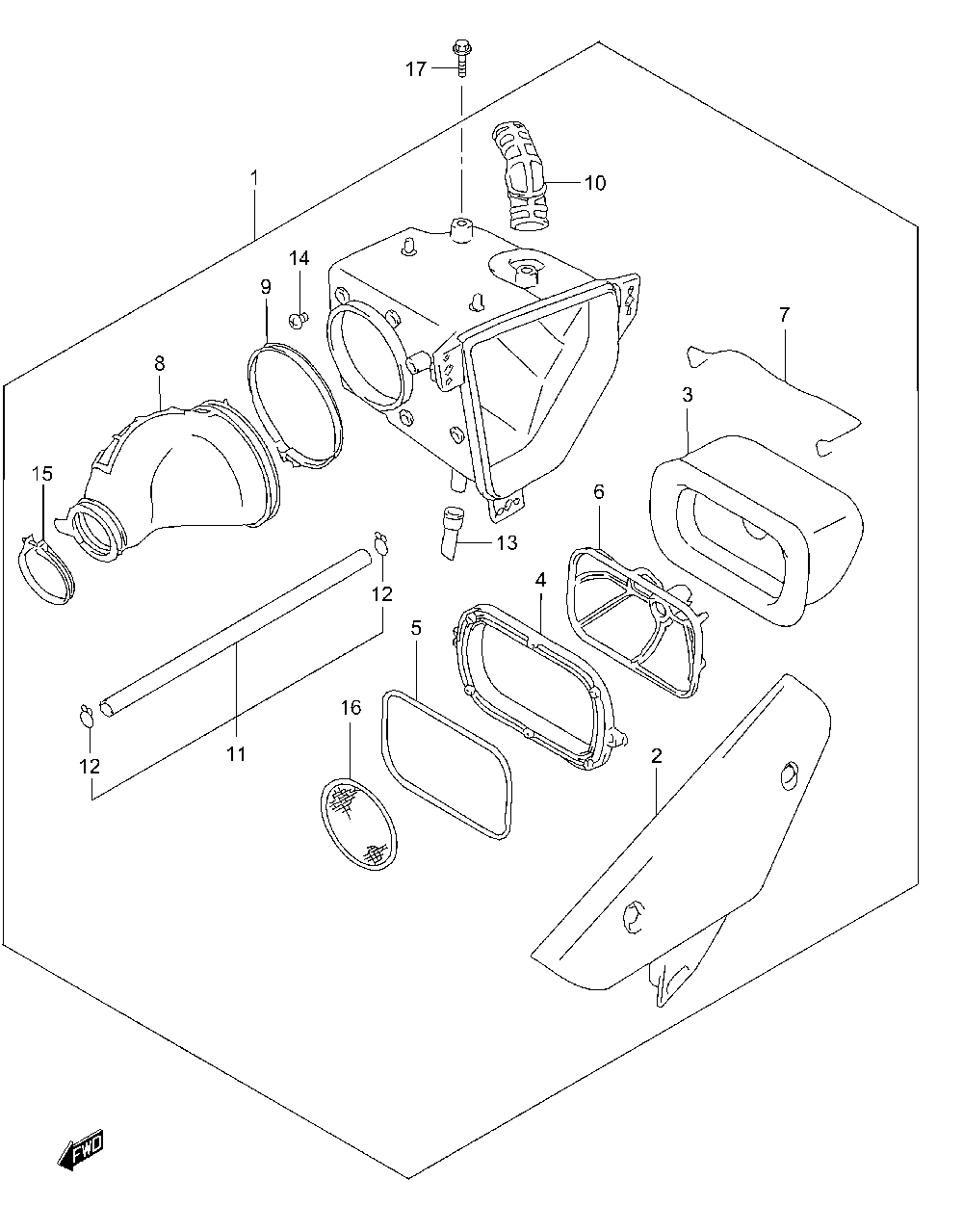

AIR CLEANER для Suzuki DR-Z250K5 - 2005 года выпуска
-
№АртикулНазвание
-
113700-13E30-30H CLEANER ASSY, AIR (EXCEPT CALIF.)CLEANER ASSY, AIR (EXCEPT CALIF.)
-
113700-13E40-30H CLEANER ASSY, AIR (CALIF. ONLY)CLEANER ASSY, AIR (CALIF. ONLY)
-
213740-13E00 CAP, CLEANERCAP, CLEANER
-
313780-13E00 FILTERFILTER
-
413799-13E00 BASE, FILTERBASE, FILTER
-
513795-13E00 GASKETGASKET
-
613791-13E01 HOLDER, FILTERHOLDER, FILTER
-
713820-13E00 SPRINGSPRING
-
813881-13E00 TUBE, OUTLETTUBE, OUTLET
-
813881-13E20 TUBE, OUTLETTUBE, OUTLET
-
913826-43B00 CLAMPCLAMP
-
1013891-13E30 TUBE, INLETTUBE, INLET
-
1113850-13E30 TUBE, BREATHERTUBE, BREATHER
-
1209401-14301 CLIPCLIP
-
1313681-19B00 CAP, DRAINCAP, DRAIN
-
1403242-05103 SCREWSCREW
-
1509402-56208 CLAMPCLAMP
-
1613810-14D02 TRAP, FRAMETRAP, FRAME
-
1701580-06123 BOLTBOLT
