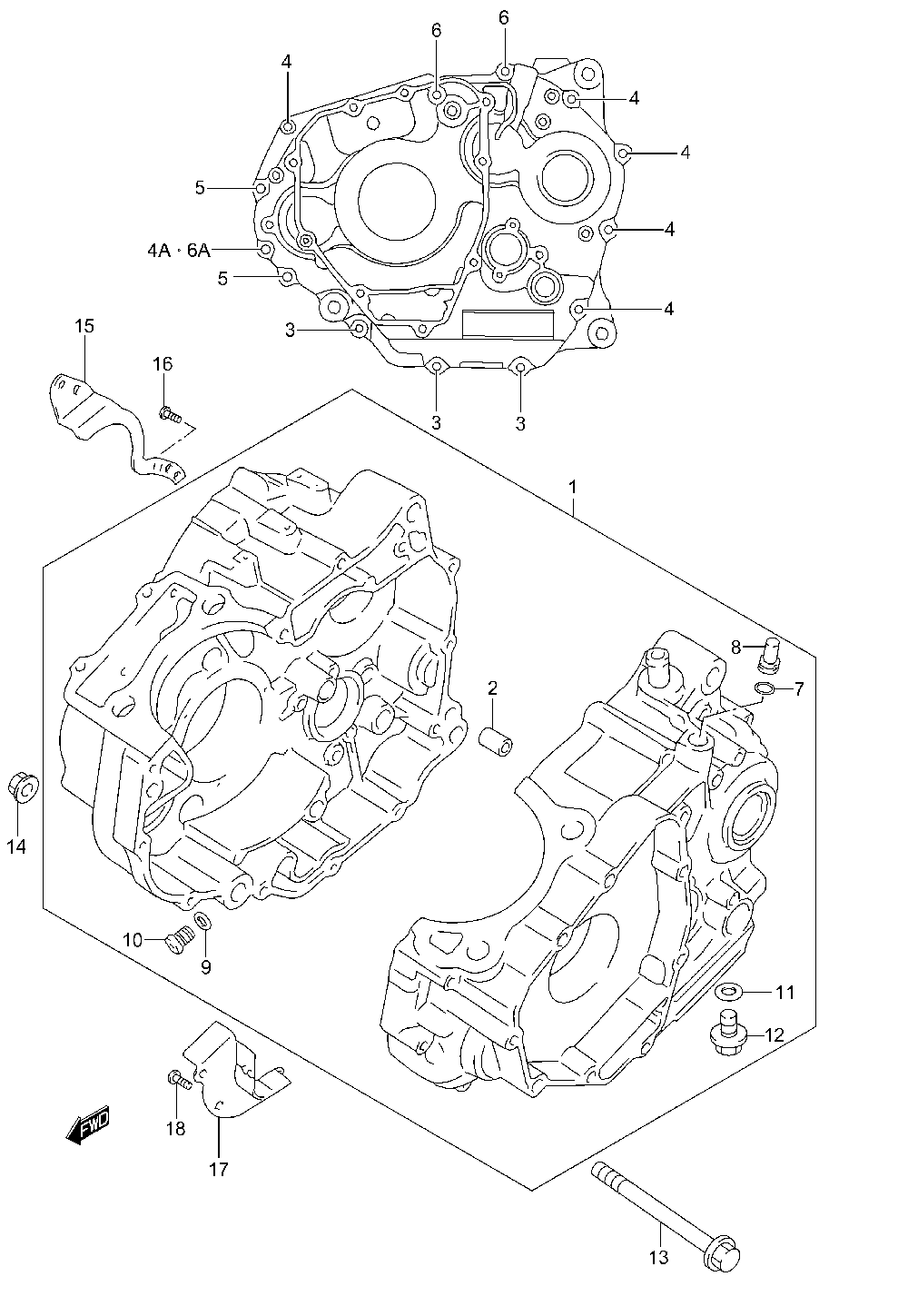

CRANKCASE для Suzuki DR-Z250K5 - 2005 года выпуска
-
№АртикулНазвание
-
111301-13840 CRANKCASE SETCRANKCASE SET
-
209202-10006 PIN, IDLE GEAR NO.2 (L:27)PIN, IDLE GEAR NO.2 (L:27)
-
301547-06403 BOLTBOLT
-
401547-06503 BOLTBOLT
-
4A01547-06503 BOLTBOLT
-
501547-06503 BOLTBOLT
-
601547-06653 BOLTBOLT
-
6A09168-06023 GASKET, CRANKCASE BOLTGASKET, CRANKCASE BOLT
-
709280-04004 O RING (D:1.2,ID:4.0)O RING (D:1.2,ID:4.0)
-
809493-24012 JETJET
-
909168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
1009248-10010 PLUGPLUG
-
1109168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1209247-12106 PLUGPLUG
-
1309103-10242 BOLT (10X100)BOLT (10X100)
-
1409159-10058 NUTNUT
-
1511317-13E10 PLATE, BREATHER OIL RETURNPLATE, BREATHER OIL RETURN
-
1602112-06123 SCREWSCREW
-
1711323-13E01 SEPARATOR, CRANKCASE OILSEPARATOR, CRANKCASE OIL
-
1809125-06086 SCREW (6X12)SCREW (6X12)
