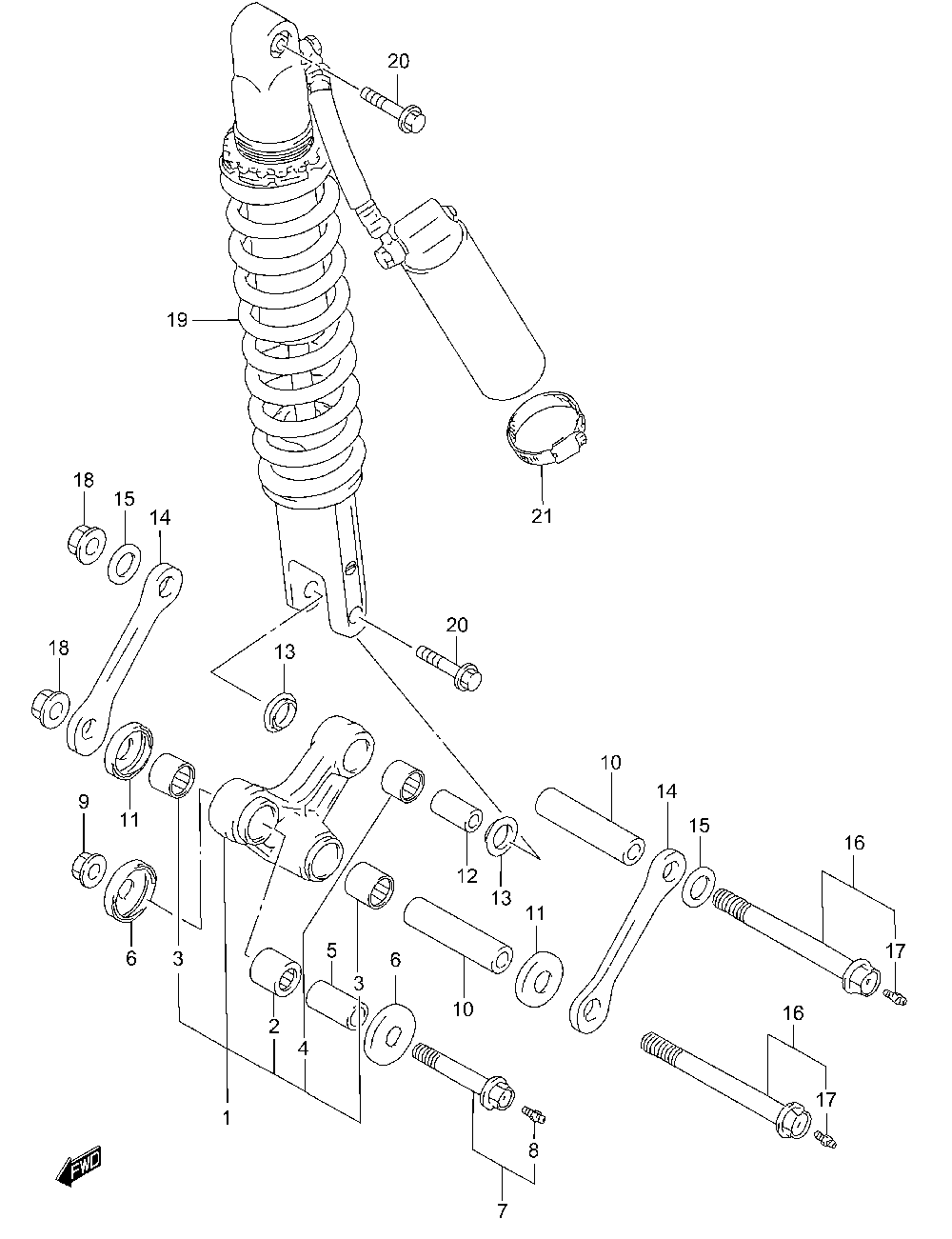

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki DR-Z250K5 - 2005 года выпуска
-
№АртикулНазвание
-
162601-13840 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 BEARING, FRONT (20X27X30)BEARING, FRONT (20X27X30)
-
309263-20071 BEARING, CENTER (20X27X23.5)BEARING, CENTER (20X27X23.5)
-
409263-17027 BEARING, REAR (17X24X20)BEARING, REAR (17X24X20)
-
562317-05D00 SPACERSPACER
-
662162-28E00 SEAL, FRONT DUSTSEAL, FRONT DUST
-
762650-05D00 BOLT, FRONTBOLT, FRONT
-
808351-21008 GREASE NIPPLEGREASE NIPPLE
-
908319-31128 NUTNUT
-
1062626-14D00 SPACER, CENTERSPACER, CENTER
-
1162624-08D10 SEAL, CENTER DUSTSEAL, CENTER DUST
-
1262684-40A10 SPACER, REARSPACER, REAR
-
1362624-13E00 SEAL, REAR DUSTSEAL, REAR DUST
-
1462641-13E00 ROD, REAR CUSHION LEVERROD, REAR CUSHION LEVER
-
1508211-14321 THRUST WASHERTHRUST WASHER
-
1662620-14D00 BOLT, RODBOLT, ROD
-
1708351-21008 GREASE NIPPLEGREASE NIPPLE
-
1808319-31148 NUTNUT
-
1962100-13E70-163 ABSORBER ASSY, REAR SHOCK (YELLOW) (UNITED STATES)ABSORBER ASSY, REAR SHOCK (YELLOW) (UNITED STATES)
-
1962100-13E80-163 ABSORBER ASSY, REAR SHOCK (YELLOW) (CANADA)ABSORBER ASSY, REAR SHOCK (YELLOW) (CANADA)
-
2062648-14500 BOLTBOLT
-
2109402-50511 CLAMPCLAMP
