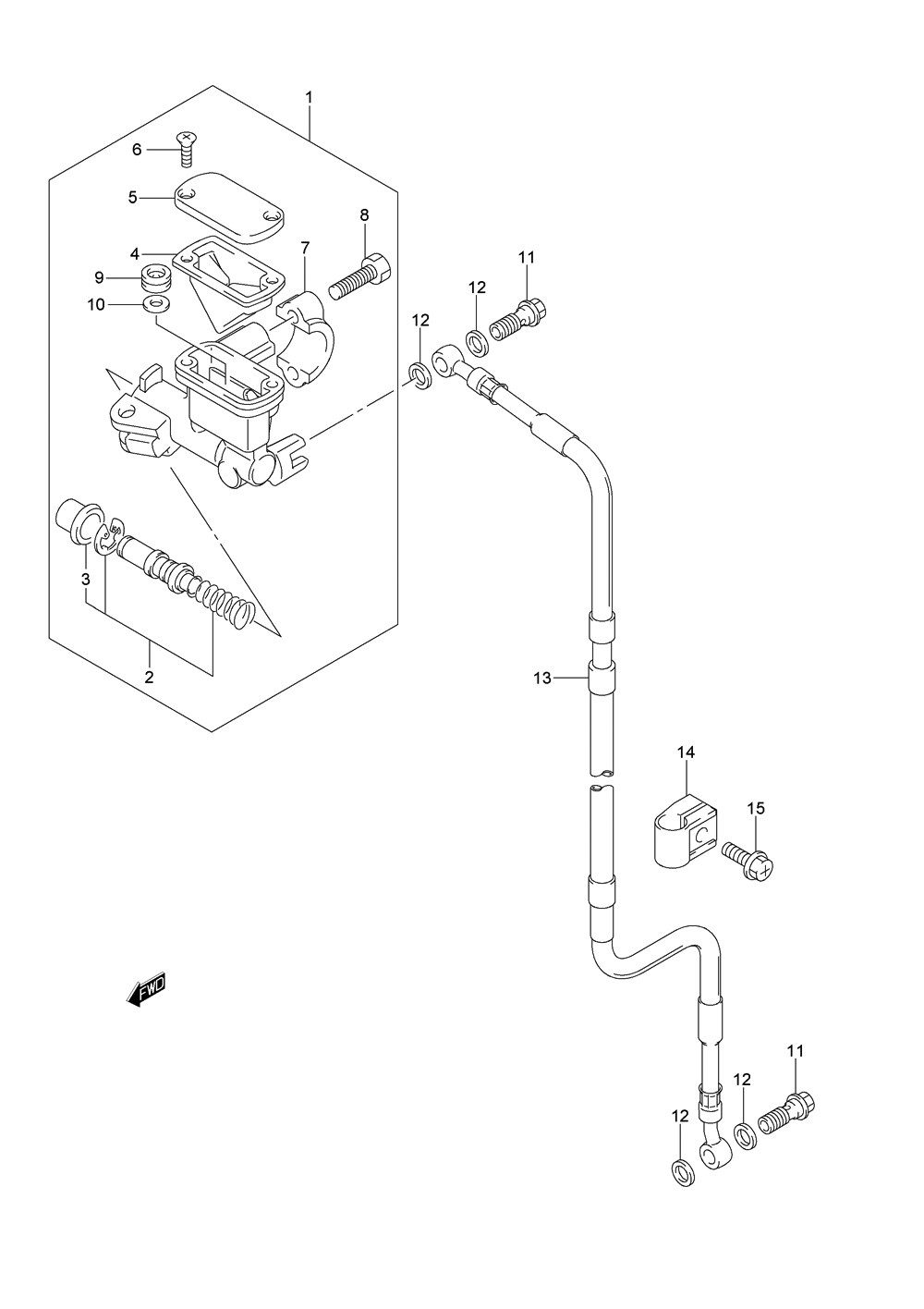

BRAKE - FRONT MASTER CYLINDER для Suzuki DR-Z400EK5 - 2005 года выпуска
-
№АртикулНазвание
-
159600-36E10 CYLINDER ASSY, FRONT MASTER (SILVERCYLINDER ASSY, FRONT MASTER (SILVER
-
259600-36830 PISTON AND CUP SETPISTON AND CUP SET
-
359666-36E00 BOOTBOOT
-
459667-36E00 DIAPHRAGMDIAPHRAGM
-
559669-36E10 CAP (SILVER)CAP (SILVER)
-
669689-49300 SCREWSCREW
-
759671-27C00 HOLDER (SILVER)HOLDER (SILVER)
-
859675-27C00 BOLTBOLT
-
959748-36E00 SEPARATORSEPARATOR
-
1069744-36E00 RINGRING
-
1109360-10042 BOLT (10X1.25X22)BOLT (10X1.25X22)
-
1209161-10009 WASHERWASHER
-
1359480-29F00 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1459243-03B01 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
1502142-06253 SCREWSCREW
