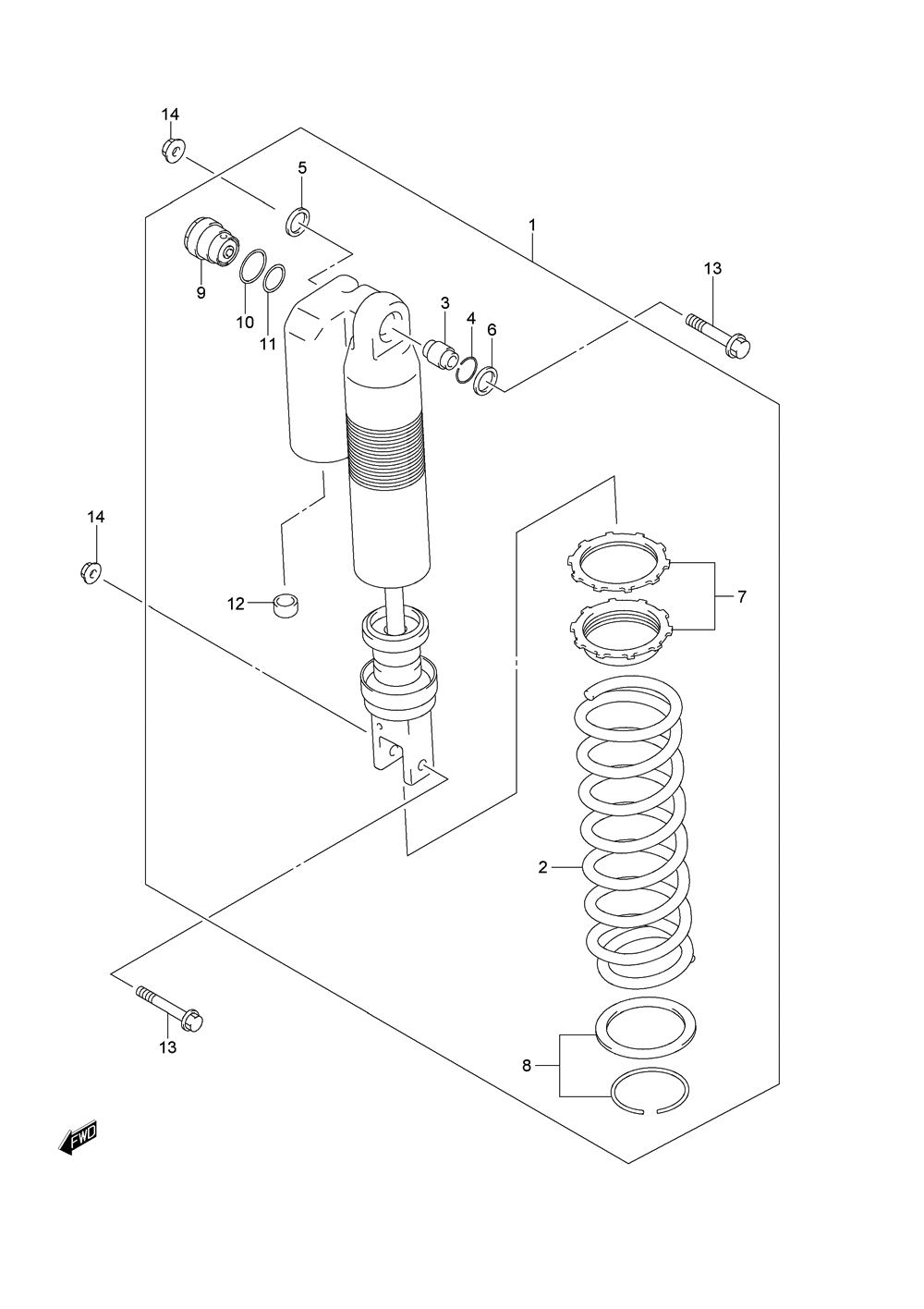

SUSPENSION - SHOCKS REAR для Suzuki DR-Z400EK5 - 2005 года выпуска
-
№АртикулНазвание
-
162100-29F60-163 ABSORBER ASSY, REAR SHOCK (YELLOW, YU1) (US ONLY)ABSORBER ASSY, REAR SHOCK (YELLOW, YU1) (US ONLY)
-
162100-29F50-163 ABSORBER ASSY, REAR SHOCK (YELLOW, YU1) (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (YELLOW, YU1) (CANADA ONLY)
-
262211-29F00-163 SPRING (YELLOW, YU1) (K=52.0N/5.3KG)SPRING (YELLOW, YU1) (K=52.0N/5.3KG)
-
262211-29FB0 SPRING (SOFT) (K=50N/MM)SPRING (SOFT) (K=50N/MM)
-
262211-29FA0 SPRING (HARD) (K=54N/MM)SPRING (HARD) (K=54N/MM)
-
362175-36E00 BEARING (10X26X22)BEARING (10X26X22)
-
462277-27C40 RINGRING
-
562226-36E00 SEAL, DUST RIGHT HANDSEAL, DUST RIGHT HAND
-
662226-36E10 SEAL, DUST LEFT HANDSEAL, DUST LEFT HAND
-
762190-36E50 ADJUSTER NUT SETADJUSTER NUT SET
-
862220-29810 SPRING SEAT SETSPRING SEAT SET
-
962130-29F50 BOLT, PLUGBOLT, PLUG
-
1062131-28E00 O RING, OUTERO RING, OUTER
-
1151174-43D00 O RING, INNERO RING, INNER
-
1252194-46686 CAPCAP
-
1309103-10149 BOLT (10X47.5)BOLT (10X47.5)
-
1409159-10058 NUTNUT
