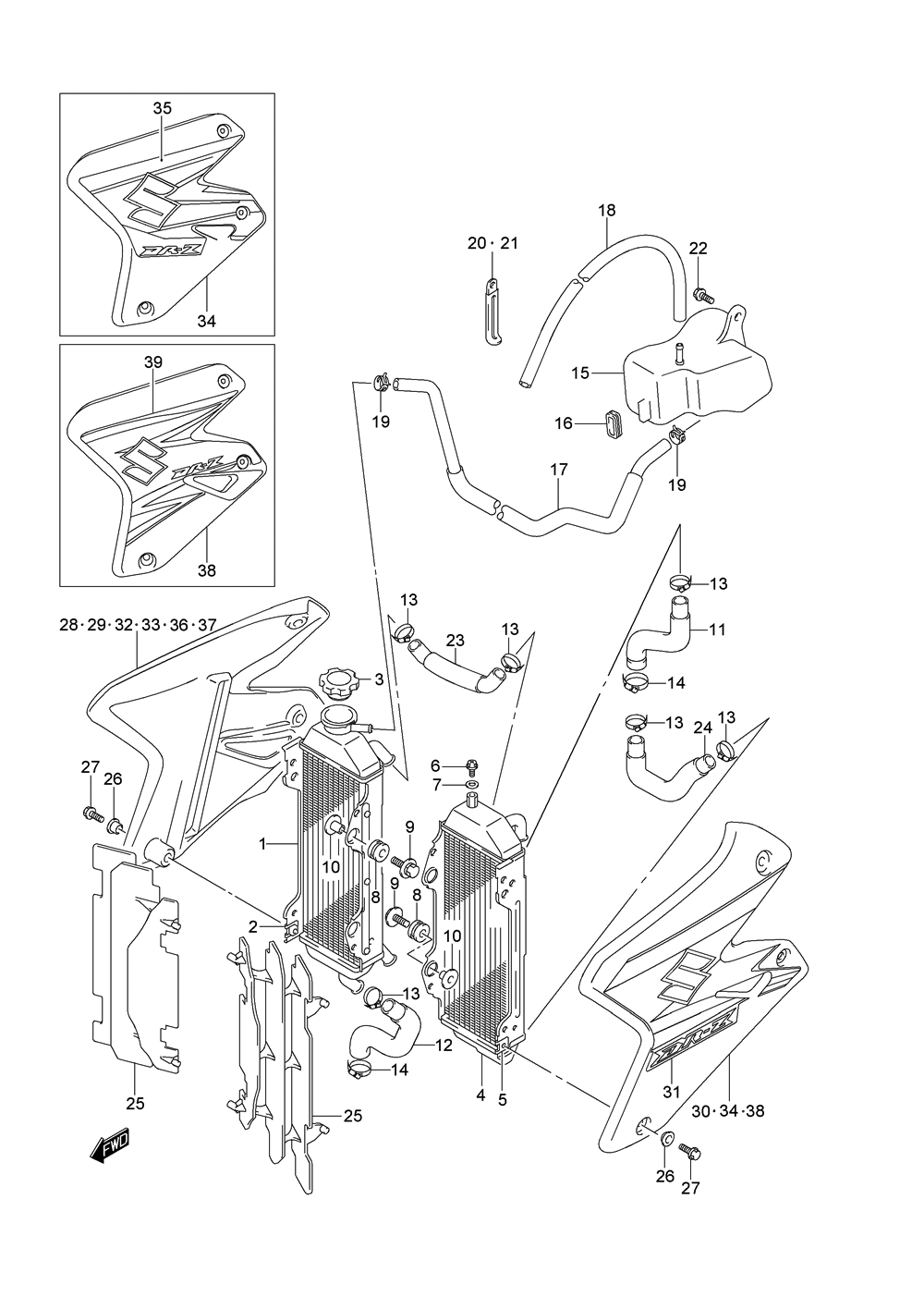

RADIATOR для Suzuki DR-Z400EK5 - 2005 года выпуска
-
№АртикулНазвание
-
117710-29F20 RADIATOR, RIGHT HANDRADIATOR, RIGHT HAND
-
209148-06015 NUTNUT
-
317730-12C30 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
417720-29F20 RADIATOR, LEFT HANDRADIATOR, LEFT HAND
-
509148-06015 NUTNUT
-
617568-50F00 BOLT, AIR RELEASEBOLT, AIR RELEASE
-
709168-06026 GASKET, AIR RELEASEGASKET, AIR RELEASE
-
817787-19A00 CUSHION, SUPPORTCUSHION, SUPPORT
-
909116-06147 BOLT (6X25)BOLT (6X25)
-
1009180-06243 SPACERSPACER
-
1117851-29F21 HOSE, INLETHOSE, INLET
-
1217852-29F20 HOSE, OUTLETHOSE, OUTLET
-
1309402-28511 CLAMPCLAMP
-
1409402-32511 CLAMPCLAMP
-
1517911-29F11 TANK, RESERVOIRTANK, RESERVOIR
-
1617913-29F00 CUSHION, RESERVOIR TANKCUSHION, RESERVOIR TANK
-
1717981-29F01 HOSE, INLETHOSE, INLET
-
1809352-50901-00B HOSE, OVERFLOWHOSE, OVERFLOW
-
1909401-08411 CLIPCLIP
-
2009404-08205 CLAMP, RESERVOIR HOSECLAMP, RESERVOIR HOSE
-
2109404-06429 CLAMP, RESERVOIR INLET HOSECLAMP, RESERVOIR INLET HOSE
-
2201550-06123 BOLTBOLT
-
2317853-29F10 HOSE, JOINT UPPERHOSE, JOINT UPPER
-
2417854-29F20 HOSE, JOINT LOWERHOSE, JOINT LOWER
-
2517831-37E11 LOUVER, RADIATORLOUVER, RADIATOR
-
2609169-06060 WASHERWASHER
-
2701547-06123 BOLTBOLT
-
2817760-29F70-YU1 COVER, RADIATOR, RIGHT HAND (YELLOW)COVER, RADIATOR, RIGHT HAND (YELLOW)
-
2968665-29F70-YHB TAPE, RADIATOR COVER, RIGHT HANDTAPE, RADIATOR COVER, RIGHT HAND
-
3017770-29F70-YU1 COVER, RADIATOR, LEFT HAND (YELLOW)COVER, RADIATOR, LEFT HAND (YELLOW)
-
3168675-29F70-YHB TAPE, RADIATOR COVER, LEFT HANDTAPE, RADIATOR COVER, LEFT HAND
