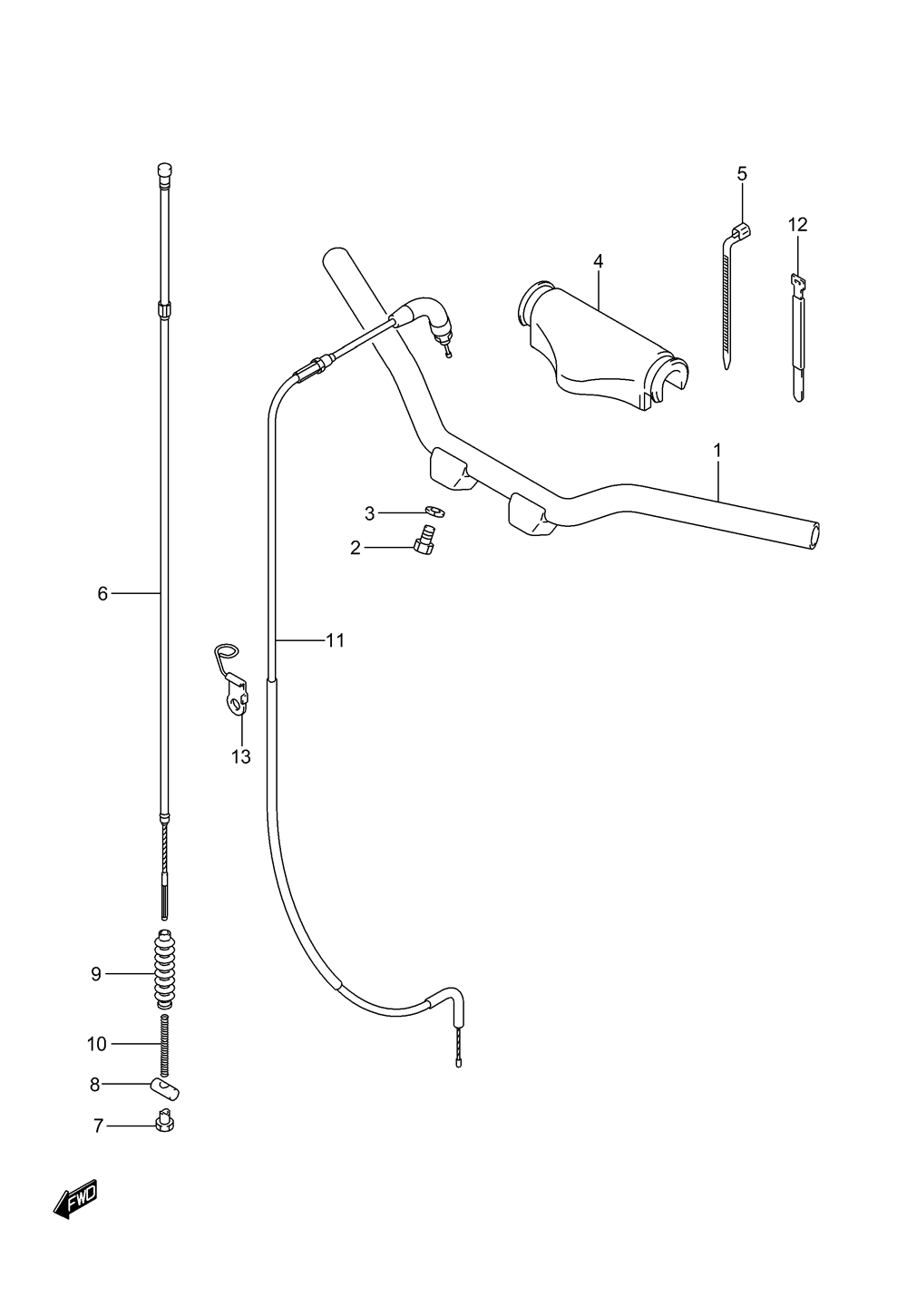

HANDLEBAR для Suzuki JR50K5 - 2005 года выпуска
-
№АртикулНазвание
-
156110-04411-291 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
201500-08163 BOLTBOLT
-
308321-01083 LOCK WASHERLOCK WASHER
-
456171-09AA0 COVER, HANDLECOVER, HANDLE
-
509407-14403 CLAMPCLAMP
-
658110-04430 CABLE ASSY, BRAKECABLE ASSY, BRAKE
-
709150-05101 NUTNUT
-
809209-10001 PINPIN
-
909287-07001 BOOTBOOT
-
1009440-06003 SPRINGSPRING
-
1158300-04432 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1209407-14301 CLAMP (L:140)CLAMP (L:140)
-
1358620-04430 GUIDE, BRAKEGUIDE, BRAKE
