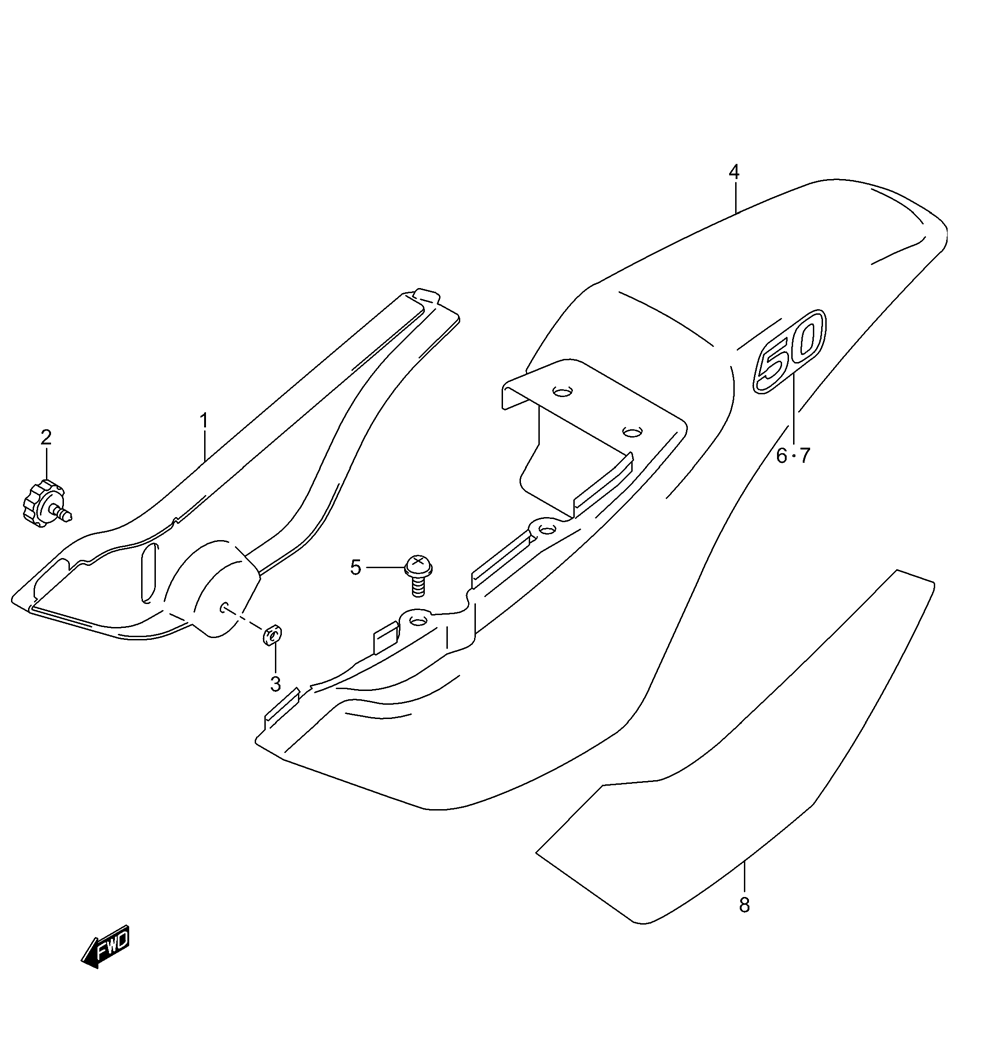

SIDE COVER для Suzuki JR50K5 - 2005 года выпуска
-
№АртикулНазвание
-
147111-09AA0-30H COVER, FRAME RIGHT HAND (WHITE)COVER, FRAME RIGHT HAND (WHITE)
-
247130-33101 KNOBKNOB
-
309152-06002 STOPPER, KNOBSTOPPER, KNOB
-
447211-09AA0-YU1 COVER, FRAME LEFT HAND (YELLOW) (US ONLY)COVER, FRAME LEFT HAND (YELLOW) (US ONLY)
-
447211-09AB0-YU1 COVER, FRAME LEFT HAND (YELLOW) (CANADA ONLY)COVER, FRAME LEFT HAND (YELLOW) (CANADA ONLY)
-
509136-06015 SCREWSCREW
-
668131-09A20-GY8 EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
768141-09A20-GY8 EMBLEM, LEFT HANDEMBLEM, LEFT HAND
-
868145-09AB0-30H TAPE, LEFT HAND (WHITE)TAPE, LEFT HAND (WHITE)
