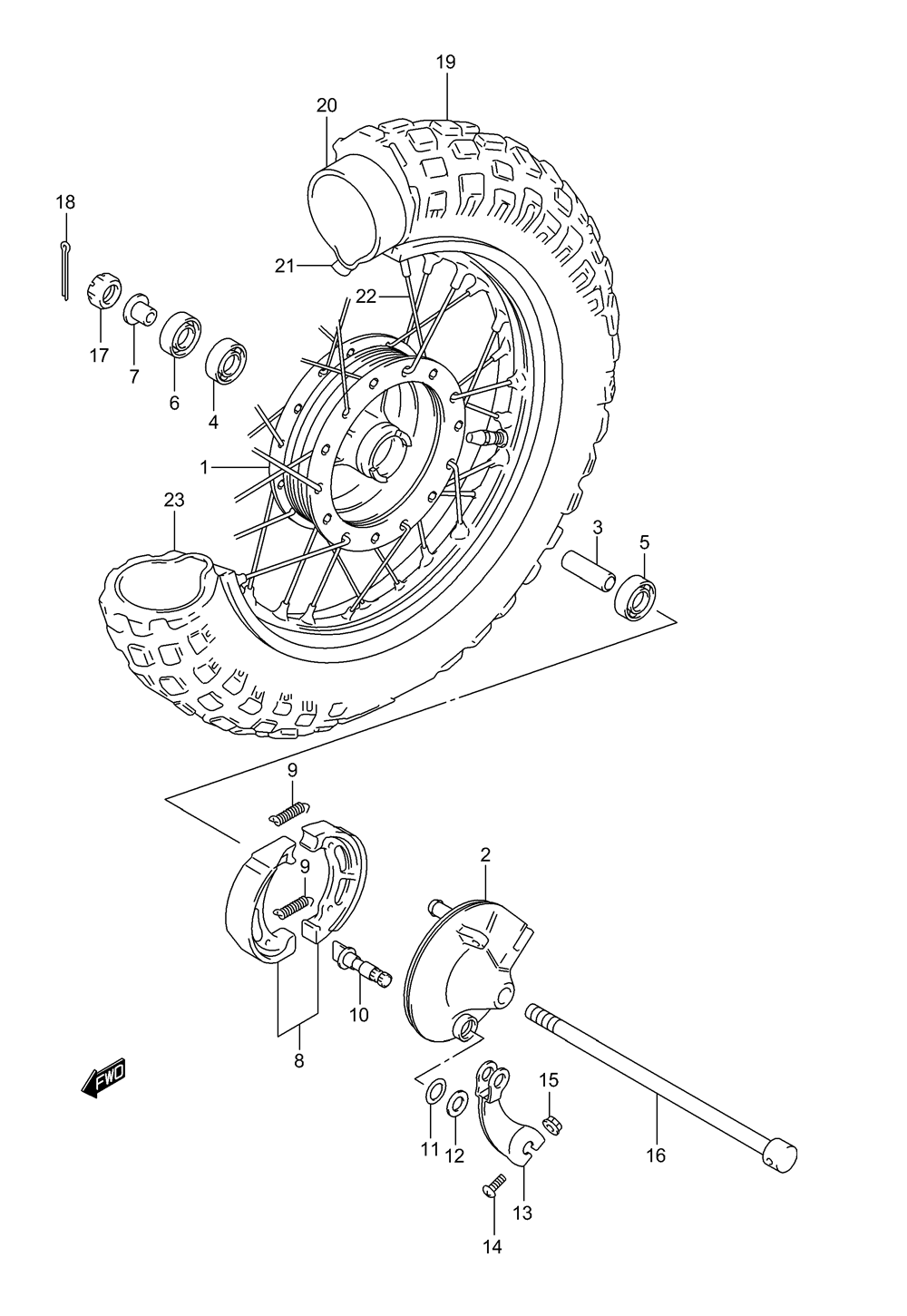

WHEEL - FRONT для Suzuki JR50K5 - 2005 года выпуска
-
№АртикулНазвание
-
154110-04400 HUB, FRONT WHEELHUB, FRONT WHEEL
-
254210-04410 PANEL, FRONT BRAKE ANCHORPANEL, FRONT BRAKE ANCHOR
-
309180-10012 SPACER (10.2X16X47)SPACER (10.2X16X47)
-
409262-10015 BEARING, RIGHT HANDBEARING, RIGHT HAND
-
508143-60007 BEARING, LEFT HANDBEARING, LEFT HAND
-
609284-15004 OIL SEAL (15X27X6)OIL SEAL (15X27X6)
-
754741-04000 SPACER, AXLESPACER, AXLE
-
864400-04811 SHOE SET, BRAKESHOE SET, BRAKE
-
909443-07025 SPRINGSPRING
-
1054441-04001 CAM, BRAKECAM, BRAKE
-
1109280-10006 O RINGO RING
-
1209160-10121 WASHER (10.5X18X1)WASHER (10.5X18X1)
-
1354451-04000 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
1402162-05303 SCREWSCREW
-
1508316-10053 NUTNUT
-
1654711-04410 AXLE, FRONTAXLE, FRONT
-
1709141-10006 NUTNUT
-
1804111-20208 COTTER PINCOTTER PIN
-
1955100-04410 TIRE, FRONT (2.50-10)TIRE, FRONT (2.50-10)
-
2055200-04410 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2155261-04410 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2255300-04820 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
-
2355311-04410 RIM, WHEEL (1.40X10)RIM, WHEEL (1.40X10)
