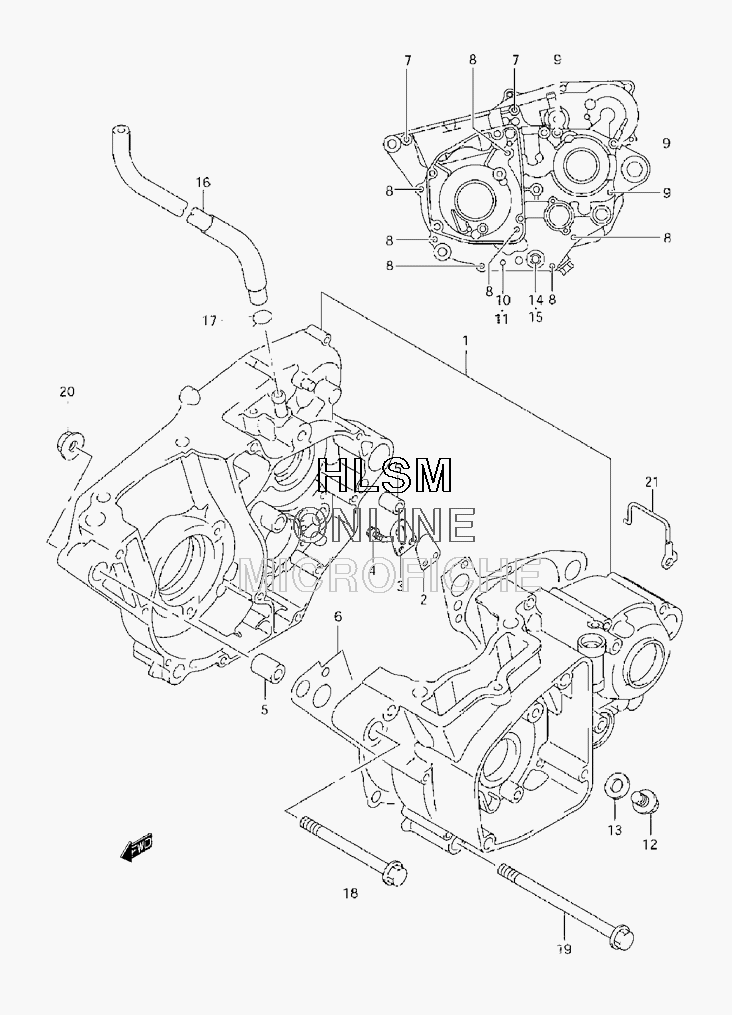

CRANKCASE для Suzuki RM-Z250K7 - 2007 года выпуска
-
№АртикулНазвание
-
111300-10881 CRANKCASE SET (INCL. 2-11)CRANKCASE SET (INCL. 2-11)
-
211322-35G00 VALVE, CRANKCASE REEDVALVE, CRANKCASE REED
-
311323-35G00 STOPPER, CRANKCASE REED VALVESTOPPER, CRANKCASE REED VALVE
-
407120-0512B BOLT, REED VALVEBOLT, REED VALVE
-
509206-13020 PIN, CRANKCASEPIN, CRANKCASE
-
611481-10H00 GASKET, CRANKCASEGASKET, CRANKCASE
-
701547-0640A BOLT, CRANKCASE (6X40)BOLT, CRANKCASE (6X40)
-
801547-0655A BOLT, CRANKCASE (6X55)BOLT, CRANKCASE (6X55)
-
901547-0670A BOLT, CRANKCASE (6X70)BOLT, CRANKCASE (6X70)
-
1007120-0610B PLUG, OIL DRAINPLUG, OIL DRAIN
-
1109168-06004 GASKET, OIL DRAIN PLUGGASKET, OIL DRAIN PLUG
-
1209247-12006 PLUG, OIL DRAINPLUG, OIL DRAIN
-
1309168-12002 GASKETGASKET
-
1416316-10H00 CAP, ENG OIL STRAINERCAP, ENG OIL STRAINER
-
1509168-16003 GASKETGASKET
-
1611332-35G10 HOSE, BREATHERHOSE, BREATHER
-
1709401-13301 CLIP, BREATHER HOSECLIP, BREATHER HOSE
-
1809103-10387 BOLT (10X96)BOLT (10X96)
-
1909103-10388 BOLT (10X120)BOLT (10X120)
-
2009159-10078 NUTNUT
-
2113694-35G00 GUIDE, CARBURETOR HOSEGUIDE, CARBURETOR HOSE
